Digital Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the digital TR electrical connector.
  3. Disconnect the shift cable end.
    Fig 1: Disconnecting Shift Cable End
    G02765522Courtesy of FORD MOTOR CO.
  4. Remove the manual control lever.
    1. Remove the manual control lever nut.
    2. Remove the manual control lever.

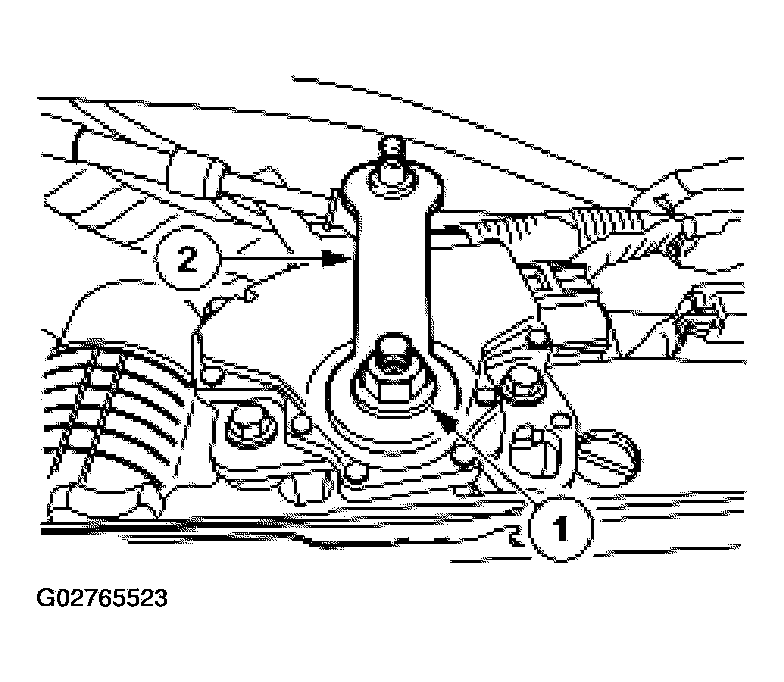

    Fig 2: Removing Manual Control Lever
    G02765523Courtesy of FORD MOTOR CO.
  5. Remove the digital TR sensor.
    1. Remove the two retaining bolts.
    2. Remove the TR sensor.
    Fig 3: Removing TR Sensor
    G02765524Courtesy of FORD MOTOR CO.
