Digital Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the digital TR sensor.
    1. Install the digital TR sensor.
    2. Loosely install the bolts.
    Fig 1: Installing Digital TR Sensor
    G02765525Courtesy of FORD MOTOR CO.
    2. NOTE: The manual lever must be in the NEUTRAL position.
    Fig 2: Aligning Digital TR Sensor Slots
    G02765526Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor slots. The tool is designed to fit snug.
    3. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

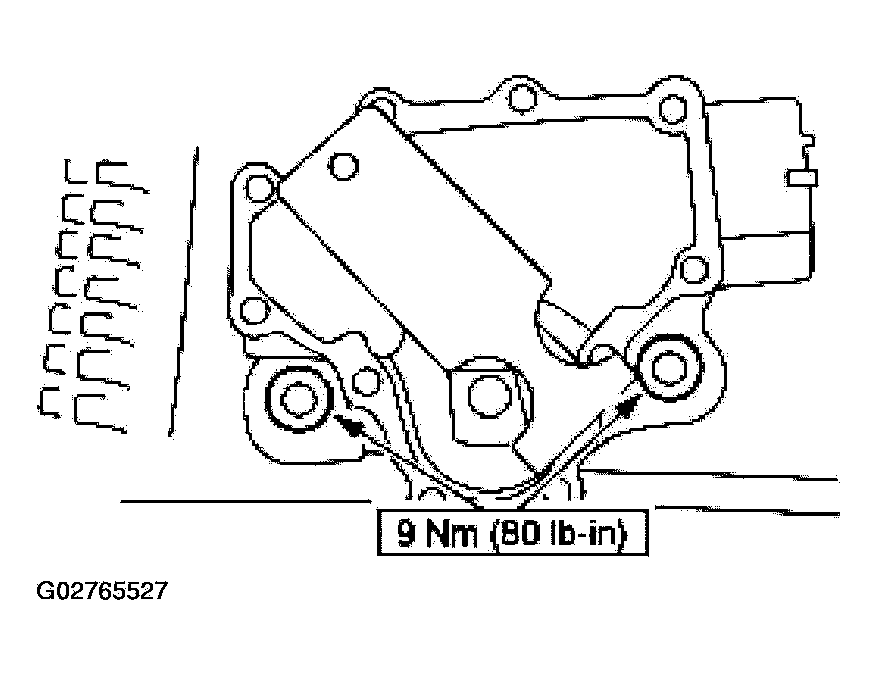

    Fig 3: Tightening Digital TR Sensor Bolts
    G02765527Courtesy of FORD MOTOR CO.
  3. Tighten the digital TR sensor bolts.
  4. Install the manual control lever.
    1. Position the manual control lever.
    2. Install a new manual control lever nut.

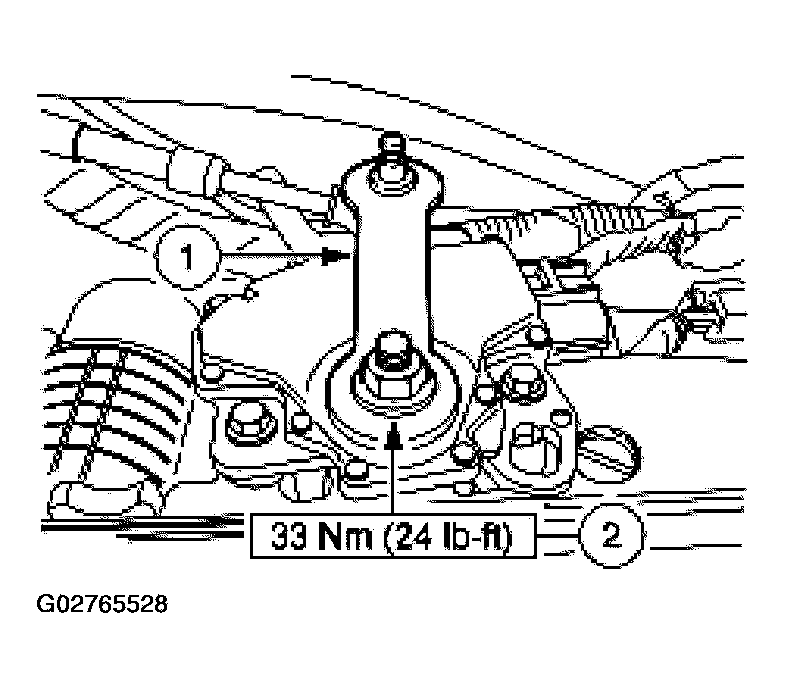

    Fig 4: Installing Manual Control Lever Nut
    G02765528Courtesy of FORD MOTOR CO.
  5. Connect the shift cable end to the manual lever with the lever in the (D) position.
    Fig 5: Connecting Shift Cable End To Manual Lever With Lever In (D) Position
    G02765529Courtesy of FORD MOTOR CO.
  6. Install the digital TR sensor electrical connector.
