2-3 Accumulator: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
  2. Remove the 2-3 accumulator piston retainer.

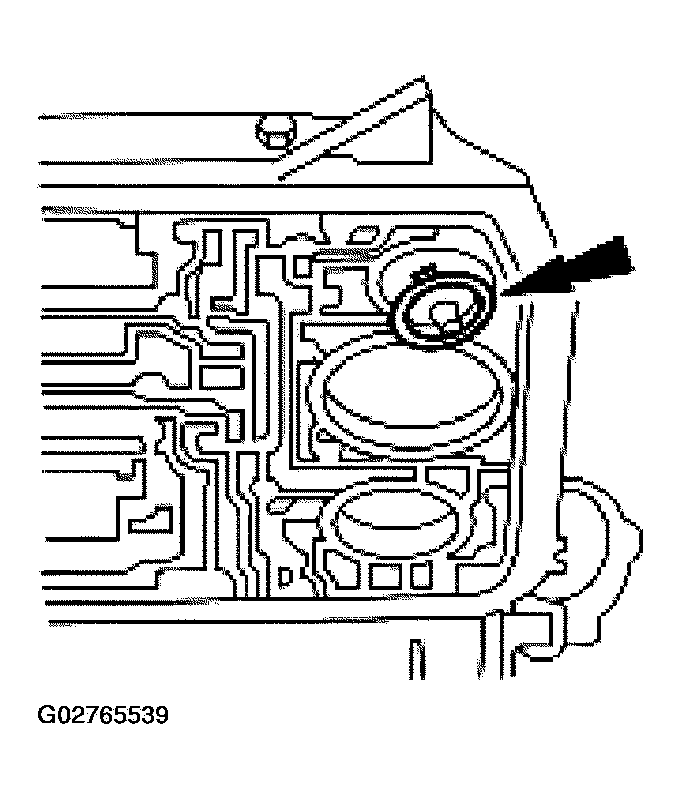

    Fig 1: Removing Accumulator Piston Retainer
    G02765539Courtesy of FORD MOTOR CO.
  3. Remove the accumulator piston and spring.

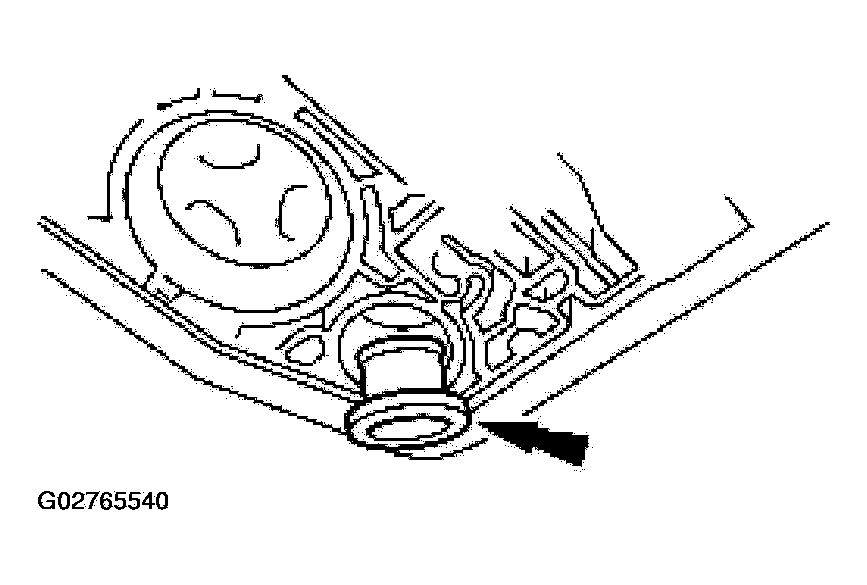

    Fig 2: Removing Accumulator Piston And Spring
    G02765540Courtesy of FORD MOTOR CO.
