1-2 Accumulator: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 1-2 accumulator.
    1. Install the 1-2 accumulator upper spring.
    2. Install the accumulator piston.
    3. Install the inner and outer 1-2 accumulator springs.
    4. Install the cover and seal assembly.

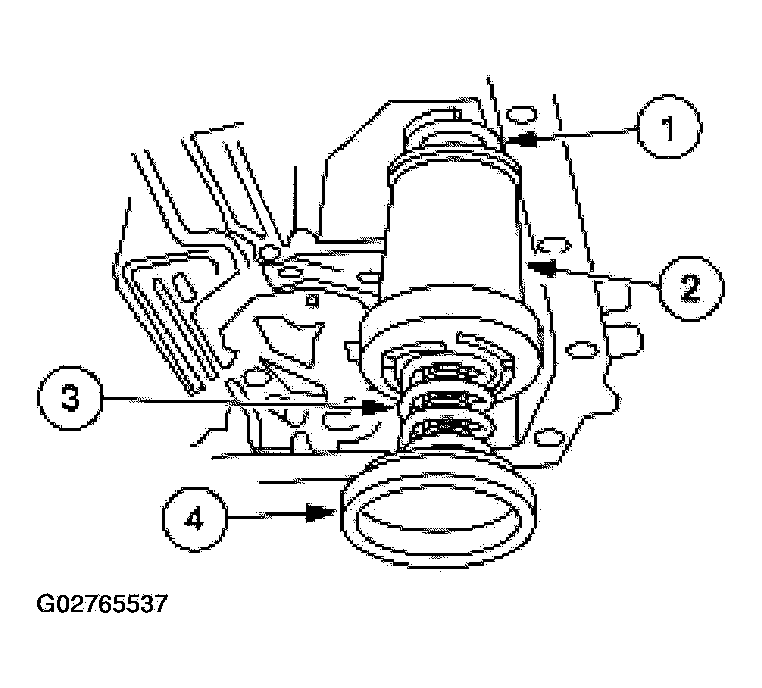

    Fig 1: Installing Cover And Seal Assembly
    G02765537Courtesy of FORD MOTOR CO.
  2. Compress the 1-2 accumulator springs and install the accumulator piston retaining ring.

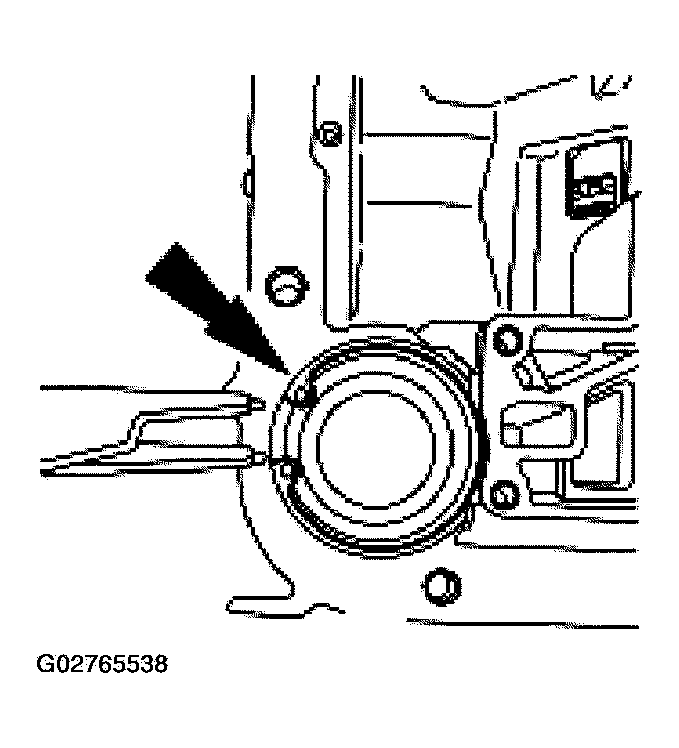

    Fig 2: Installing Accumulator Piston Retaining Ring
    G02765538Courtesy of FORD MOTOR CO.
