Transmission Range (TR) Sensor Adjustment

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Fig 1: Identifying Special Tool
G02765423Courtesy of FORD MOTOR CO.
CAUTION: Do not pry on the swivel tube to disconnect the transmission shift linkage.
NOTE: Manual shift lever must be in the NEUTRAL position.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the digital TR electrical connector.

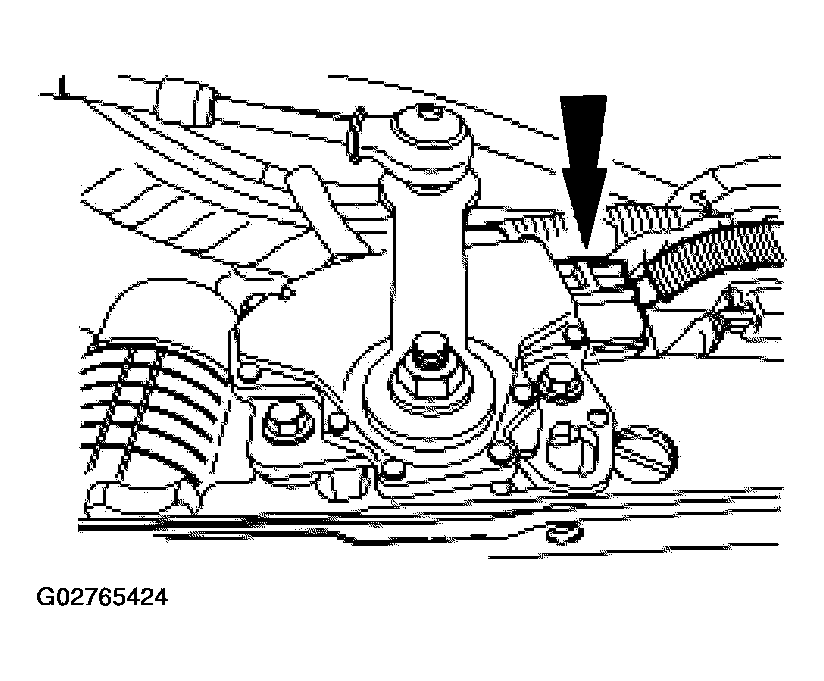

    Fig 2: Disconnecting Digital TR Electrical Connector
    G02765424Courtesy of FORD MOTOR CO.
  3. Disconnect the manual lever shift control cable.

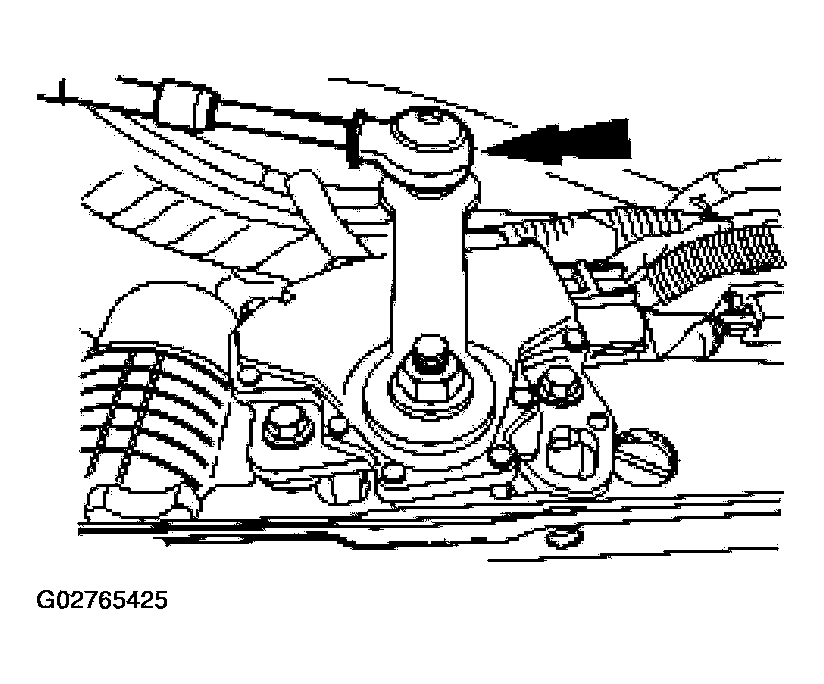

    Fig 3: Disconnecting Manual Lever Shift Control Cable
    G02765425Courtesy of FORD MOTOR CO.
  4. Remove the manual control lever.
    1. Remove the manual control lever nut.
    2. Remove the manual control lever.
    Fig 4: Removing Manual Control Lever
    G02765426Courtesy of FORD MOTOR CO.
  5. Loosen but do not remove the digital TR sensor bolts.
    Fig 5: Loosening Digital TR Sensor Bolts
    G02765427Courtesy of FORD MOTOR CO.
    6. NOTE: The manual lever must be in the NEUTRAL position.
    Fig 6: Aligning Digital TR Sensor Slots
    G02765428Courtesy of FORD MOTOR CO.
  6. Using the special tool, align the digital TR sensor slots. The tool is designed to fit snug.
    7. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

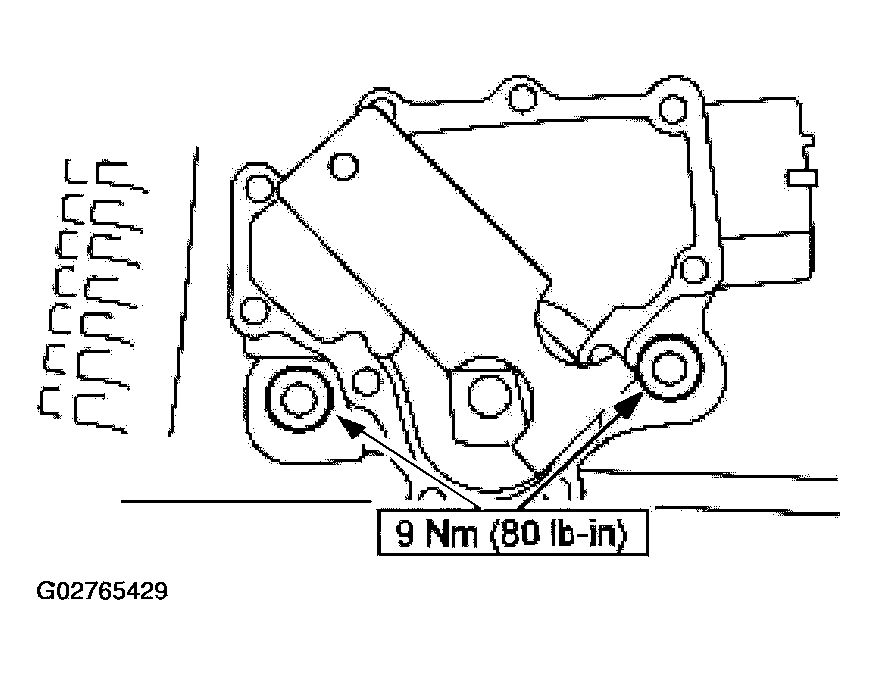

    Fig 7: Aligning Digital TR Sensor
    G02765429Courtesy of FORD MOTOR CO.
  7. Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
  8. Install the manual control lever.
    1. Position the manual control lever.
    2. Install a new manual lever shaft outer nut.

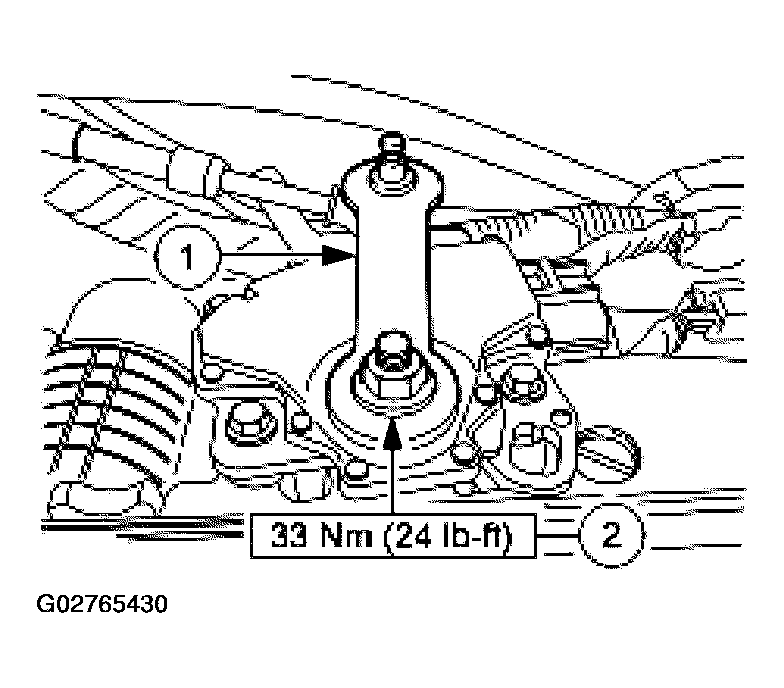

    Fig 8: Installing Manual Lever Shaft Outer Nut
    G02765430Courtesy of FORD MOTOR CO.
  9. With the manual lever in overdrive, connect the shift lever control cable.

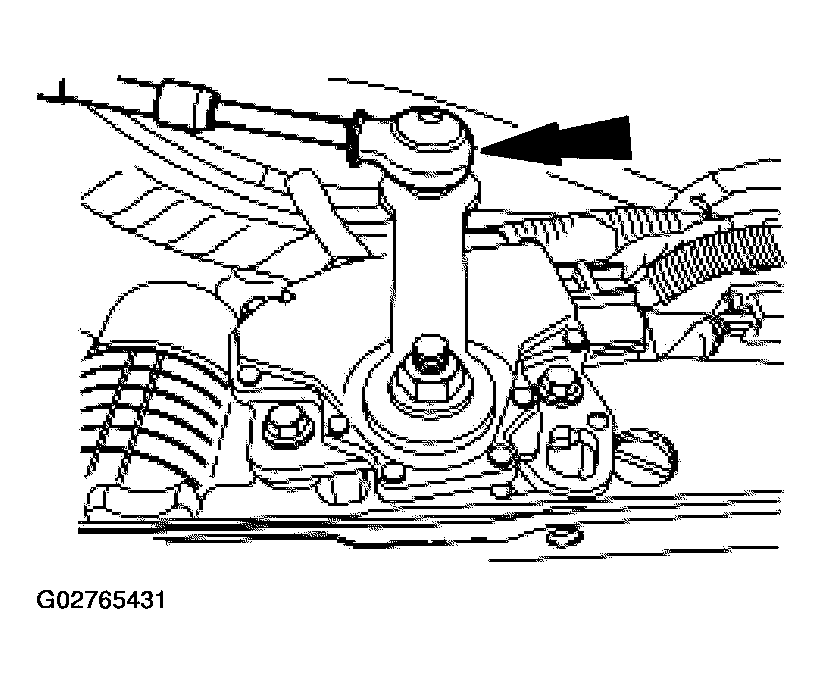

    Fig 9: Connecting Shift Lever Control Cable
    G02765431Courtesy of FORD MOTOR CO.
  10. Install the digital TR sensor electrical connector.

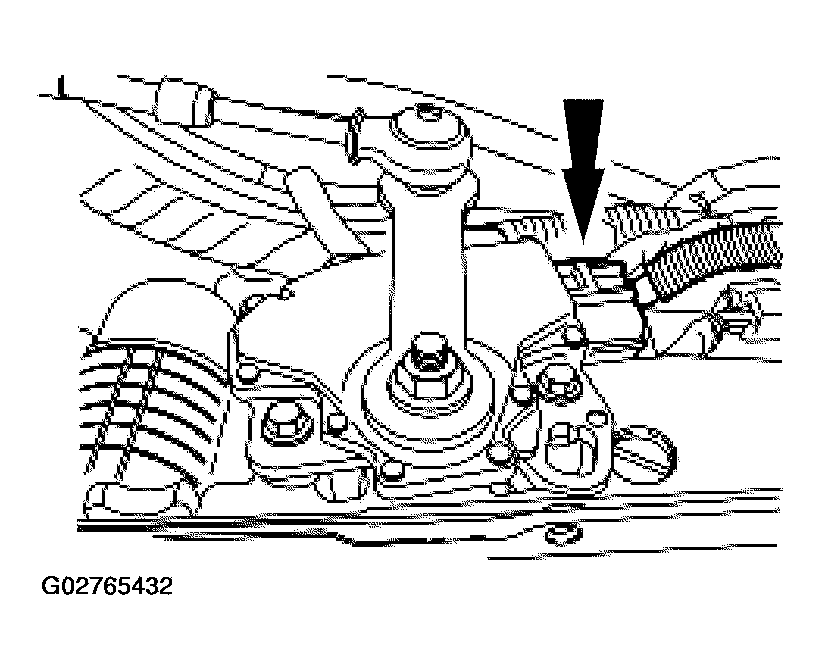

    Fig 10: Installing Digital TR Sensor Electrical Connector
    G02765432Courtesy of FORD MOTOR CO.
