Fluid Level Check
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The vehicle should not be driven if the fluid level indicator shows the fluid below the DO NOT DRIVE mark or internal failure could result.
NOTE:
If the vehicle has been operated for an extended period, at high highway speeds, in city traffic, during hot weather, or while pulling a trailer, the fluid needs to cool down to obtain an accurate reading.
NOTE:
The fluid level reading on the indicator will differ from operating and ambient temperatures. The correct reading should be within the normal operating temperature range.
Under normal circumstances the fluid level should be checked during normal maintenance. If the transmission starts to slip, shifts slowly, or shows signs of fluid leaking, the fluid level should be checked.
- With the transmission in P (PARK), the engine at idle, foot pressed on the brake, move the range selector lever through each gear and allow engagement of each gear. Place the transmission range selector lever in the P position.
- Wipe the fluid level indicator cap and remove the indicator.
- Wipe the indicator with a clean cloth.

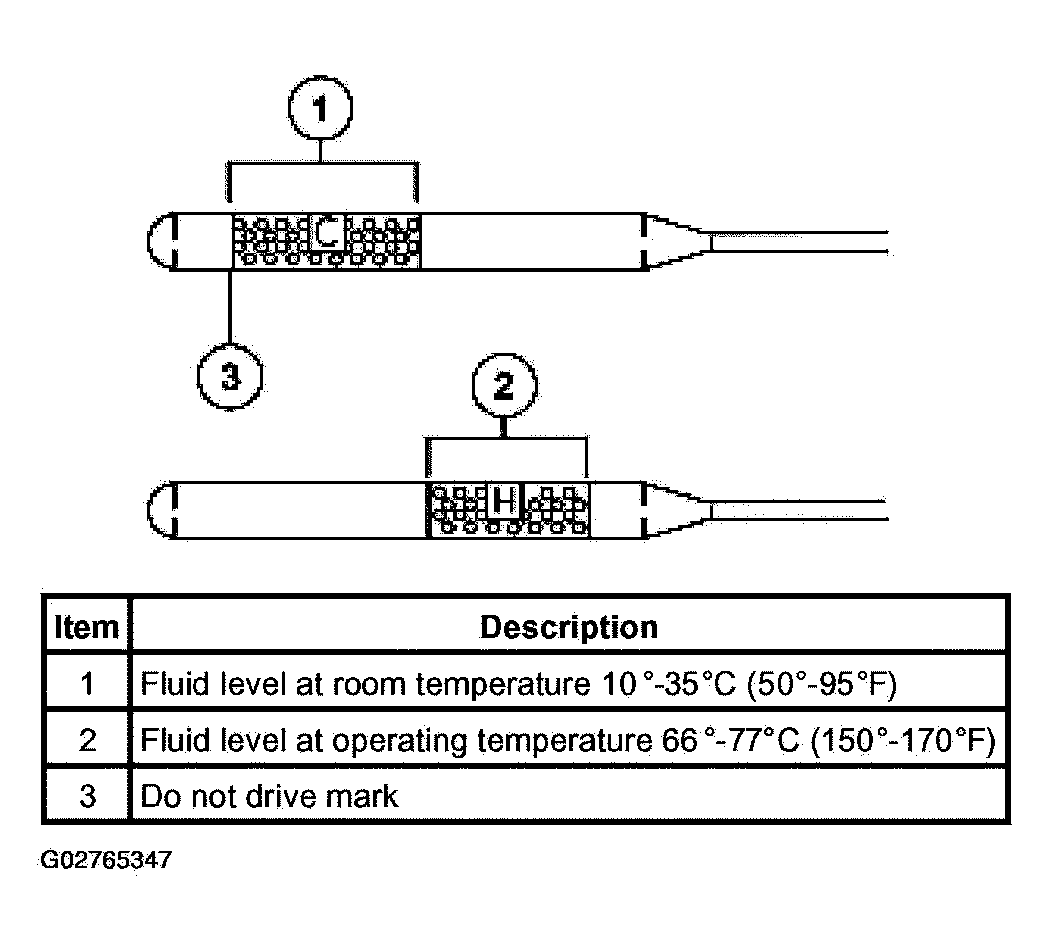

- Install the indicator back in the filler tube until it is fully seated, then remove the indicator. The fluid level should be within the normal operating temperature range.
