Pinpoint Test D: Electrical Pressure Control (EPC) Solenoid

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Transmission Internal Harness illustration preceding these pinpoint tests.

NOTE: Read and record all DTCs. All digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).

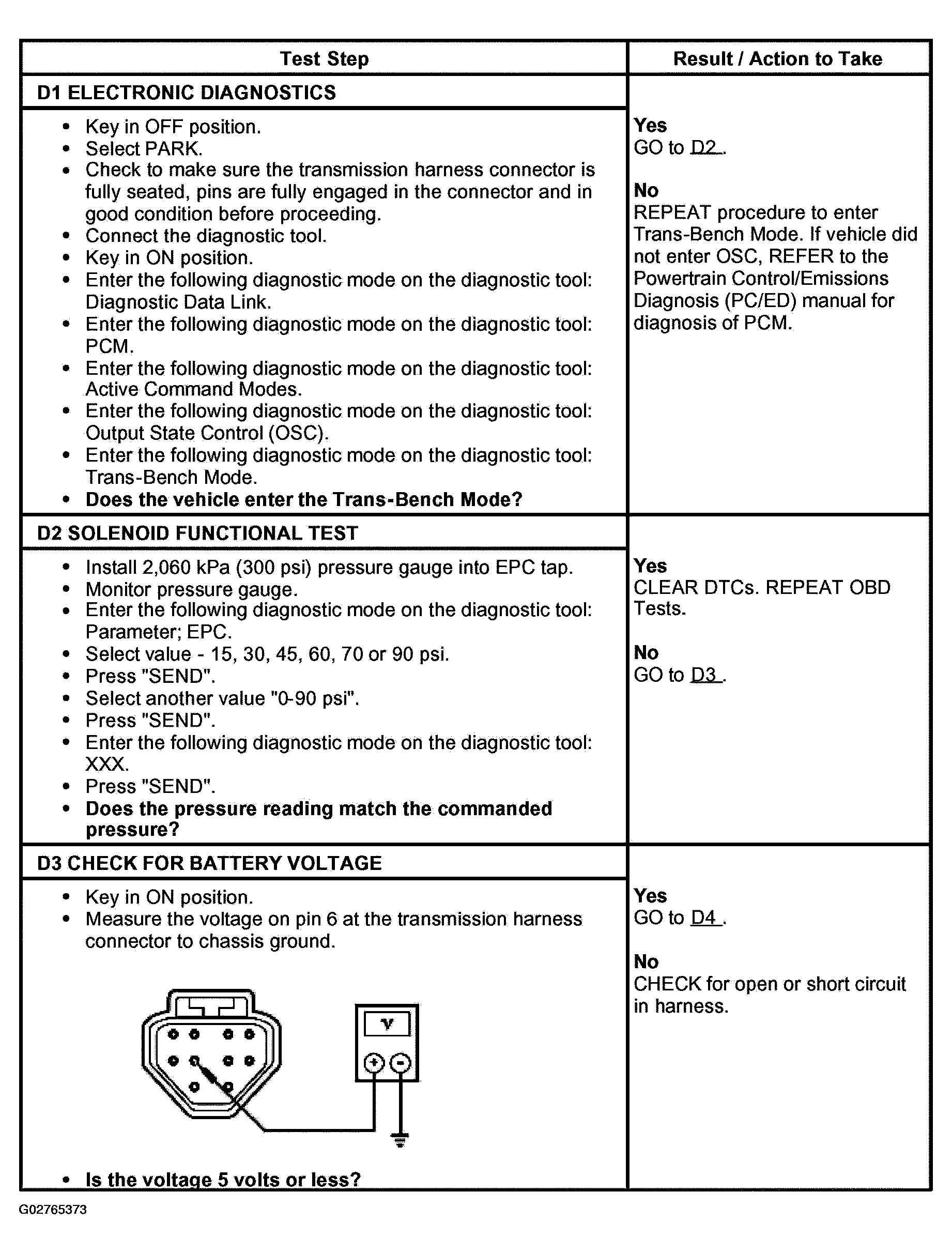

Fig 1: Pinpoint Test D: Electrical Pressure Control (EPC) Solenoid (Steps D1-D3)

Courtesy of FORD MOTOR CO.

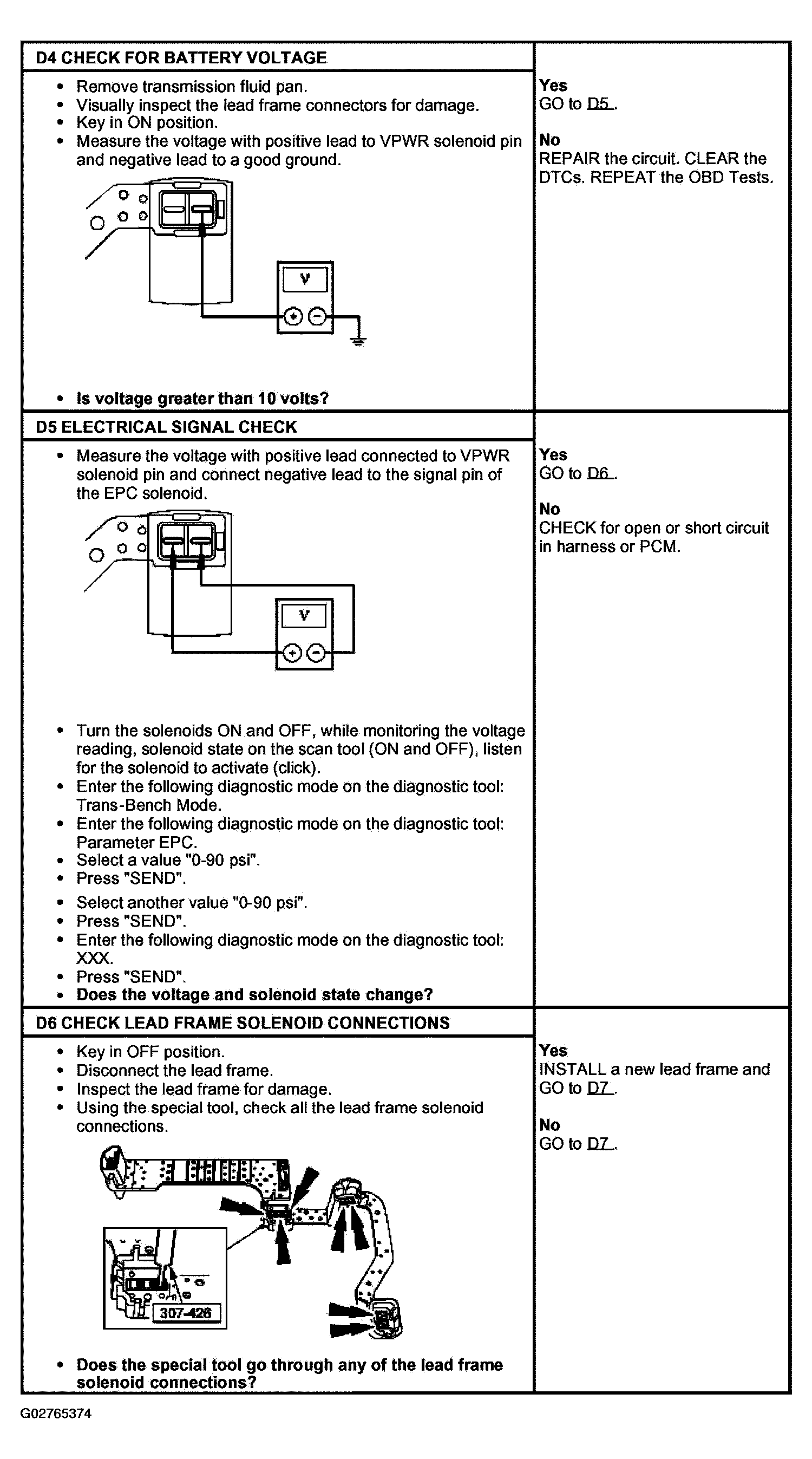

Fig 2: Pinpoint Test D: Electrical Pressure Control (EPC) Solenoid (Steps D4-D6)

Courtesy of FORD MOTOR CO.

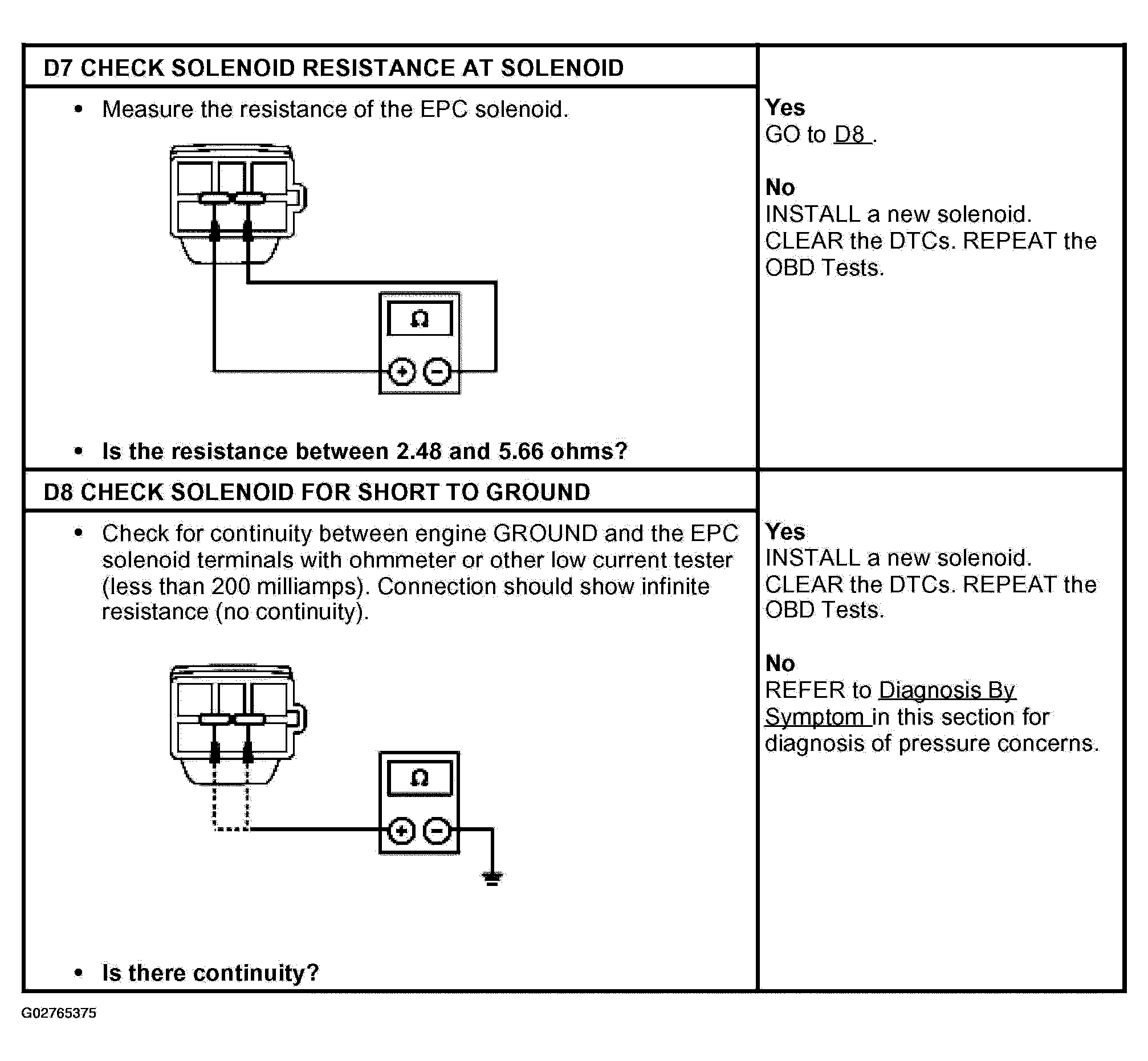

Fig 3: Pinpoint Test D: Electrical Pressure Control (EPC) Solenoid (Steps D7-D8)

Courtesy of FORD MOTOR CO.
