Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Connector Layouts preceding these pinpoint tests.

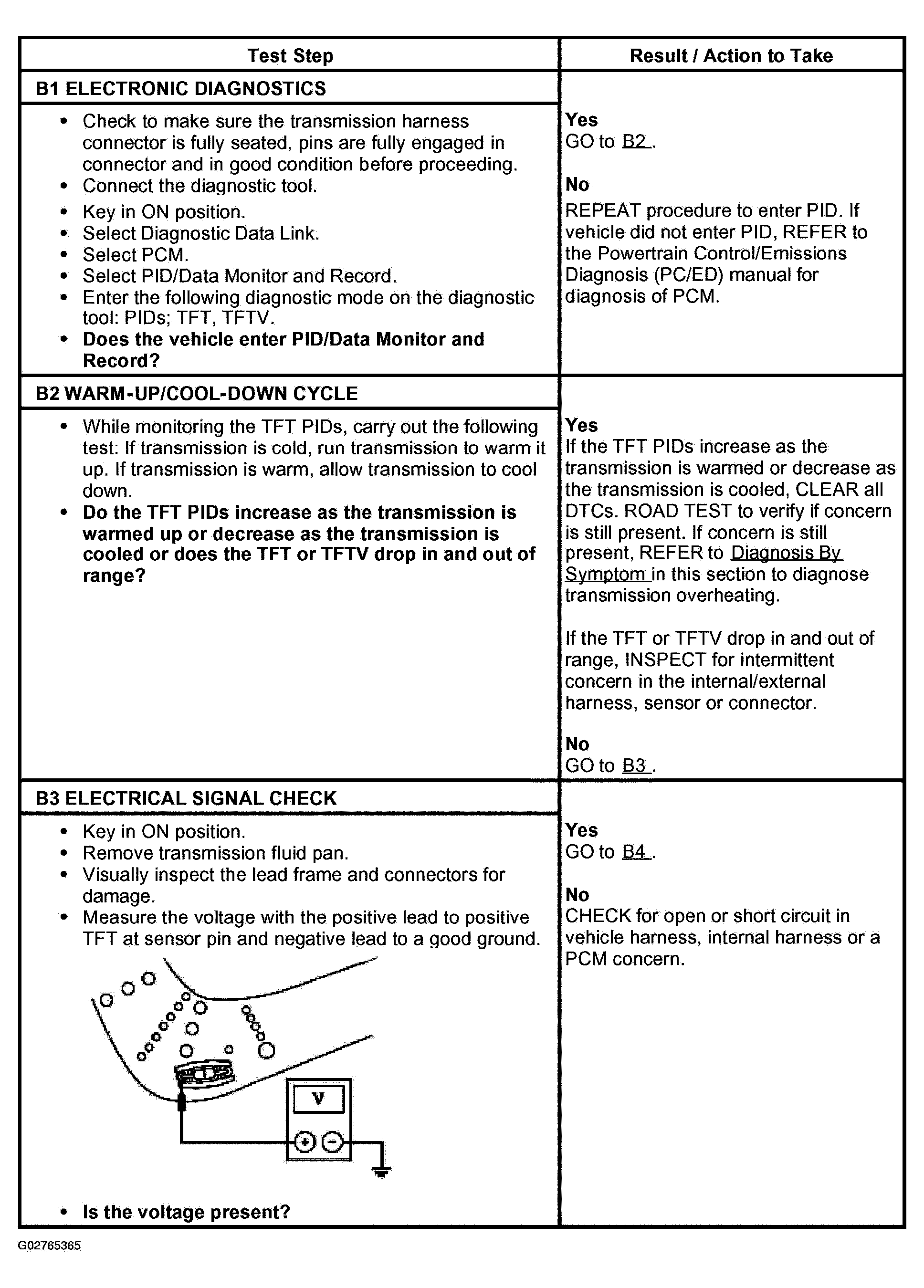

Fig 1: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Steps B1-B3)
G02765365Courtesy of FORD MOTOR CO.

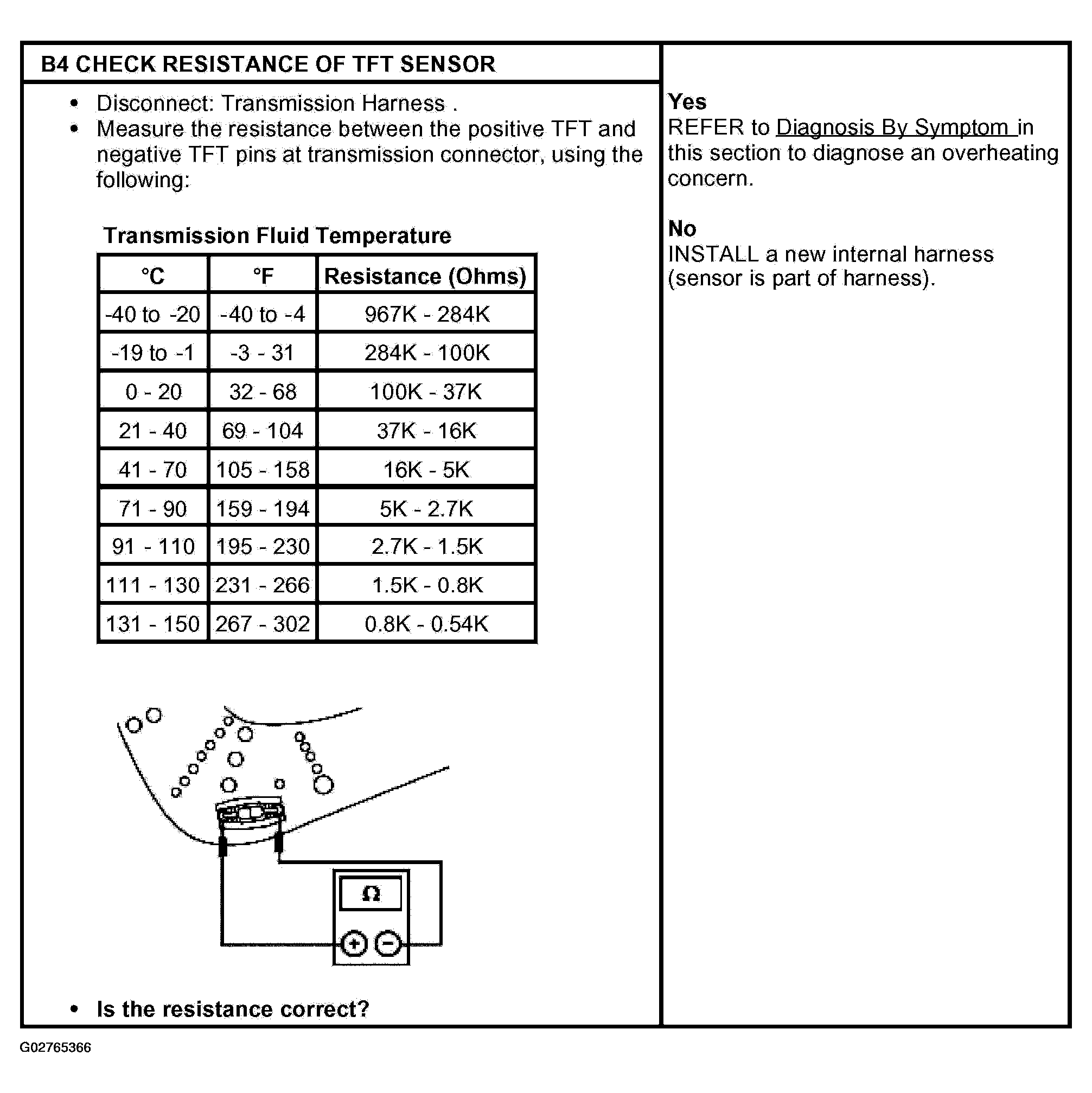

Fig 2: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Steps B4)
G02765366Courtesy of FORD MOTOR CO.
