Shift Concerns: Timing Concerns - Early/Late

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

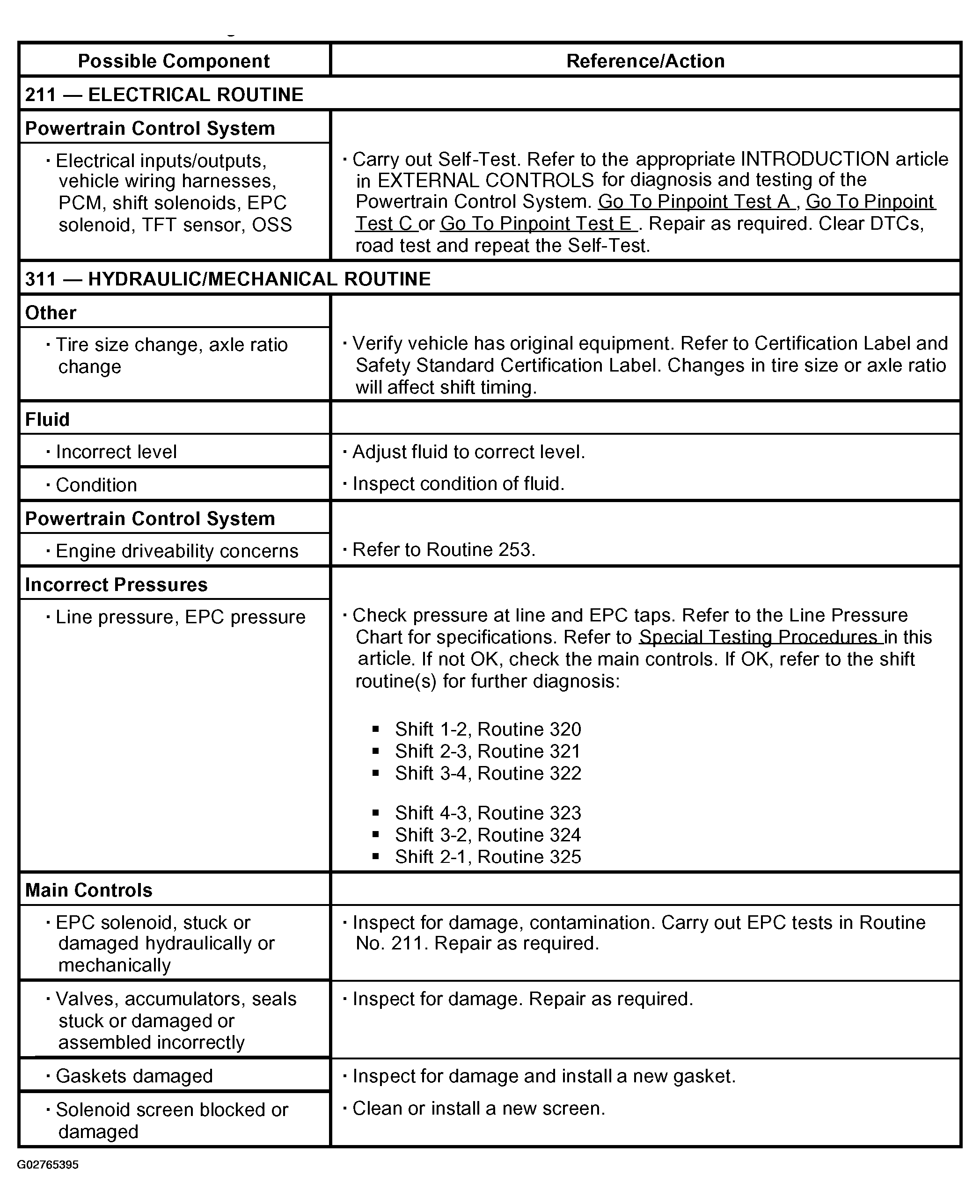

Fig 1: Diagnostic Routines (Shift Concerns: Timing Concerns - Early/Late)
G02765395Courtesy of FORD MOTOR CO.
