Engagement Concern: Harsh Reverse

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

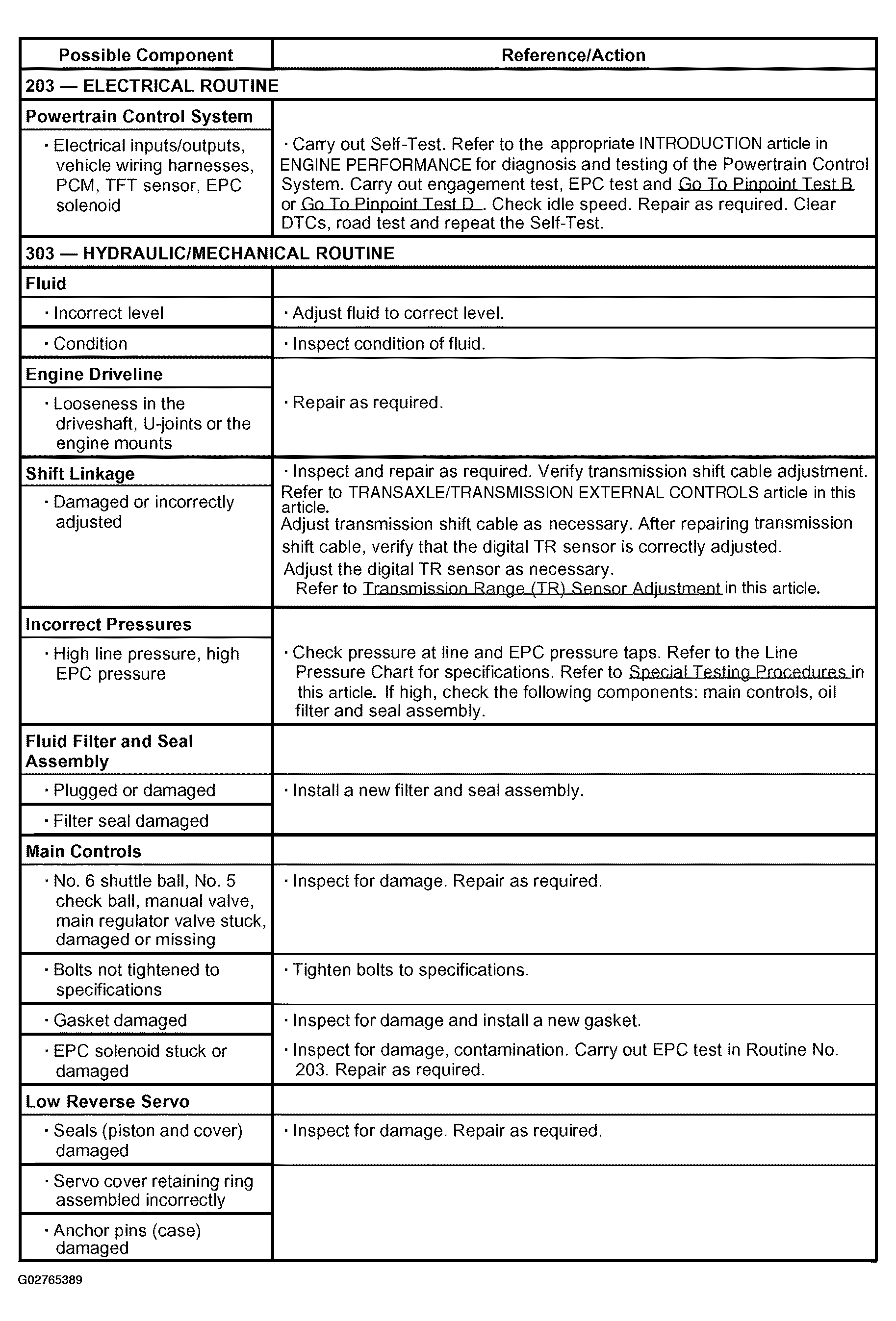

Fig 1: Diagnostic Routines (Engagement Concern: Harsh Reverse) (1 Of 2)
G02765389Courtesy of FORD MOTOR CO.

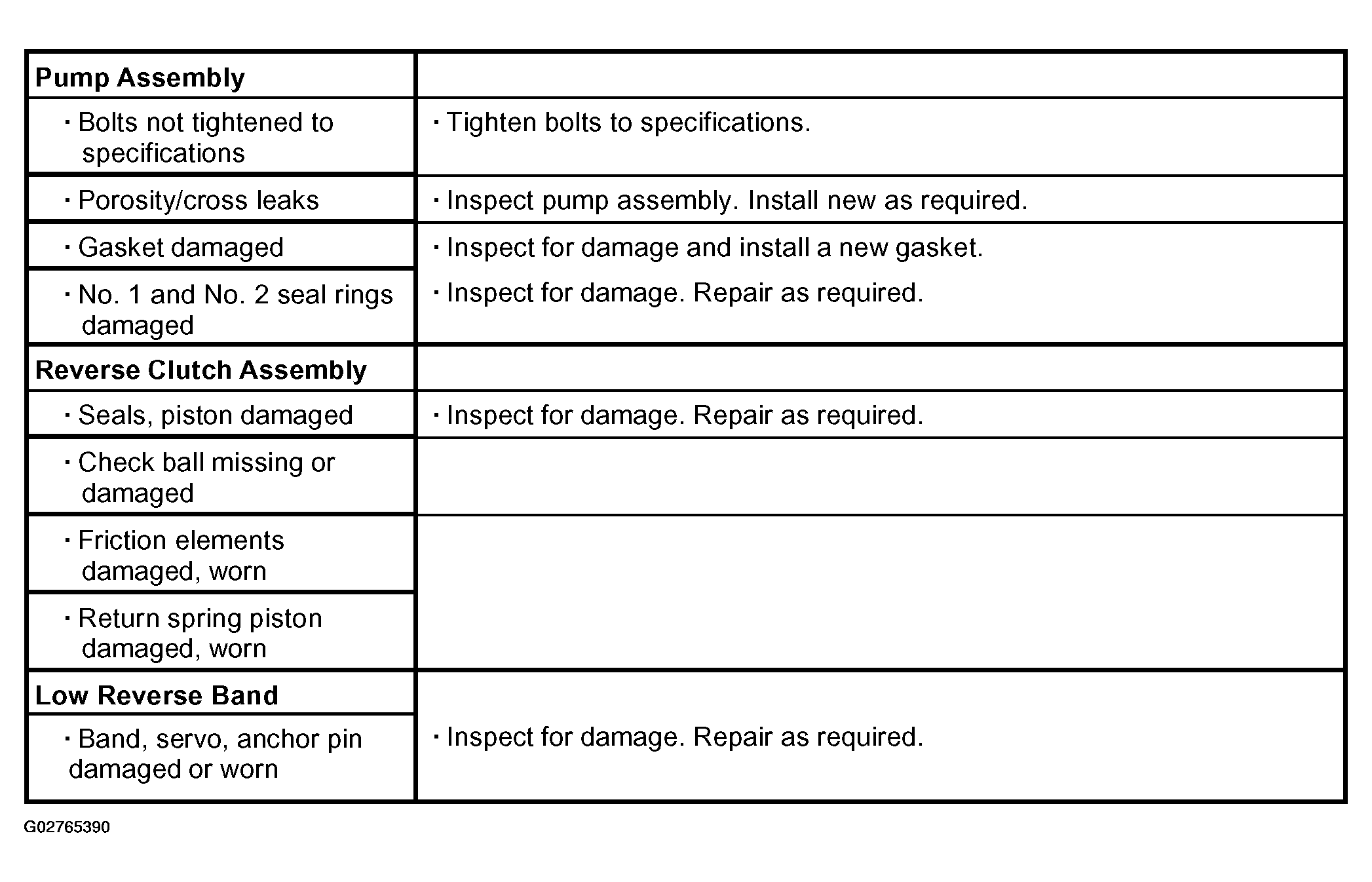

Fig 2: Diagnostic Routines (Engagement Concern: Harsh Reverse) (2 Of 2)
G02765390Courtesy of FORD MOTOR CO.
