WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

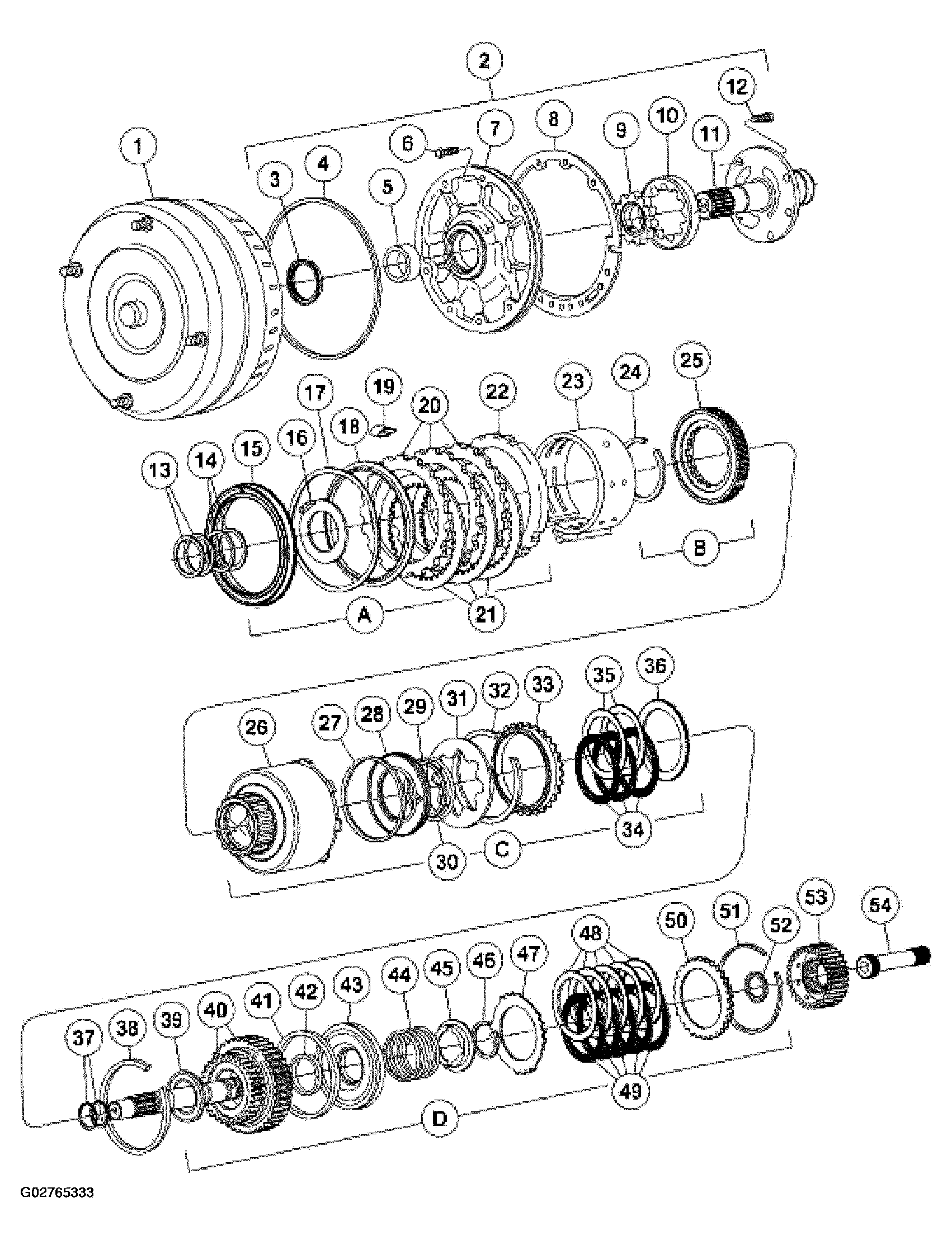

Fig 1: Disassembling View Of Automatic Transmission (1 Of 2)
Courtesy of FORD MOTOR CO.

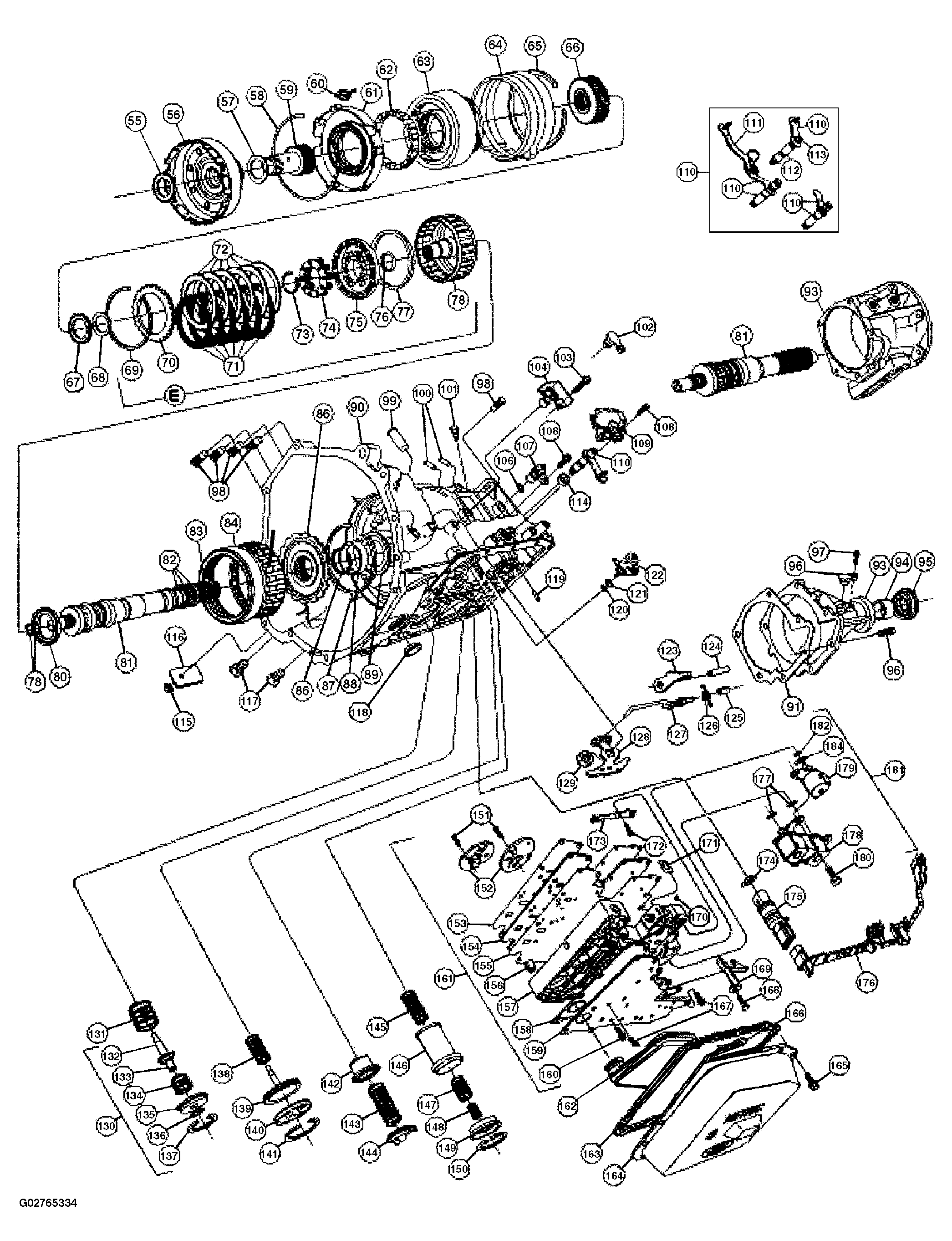

Fig 2: Disassembling View Of Automatic Transmission (2 Of 2)
Courtesy of FORD MOTOR CO.

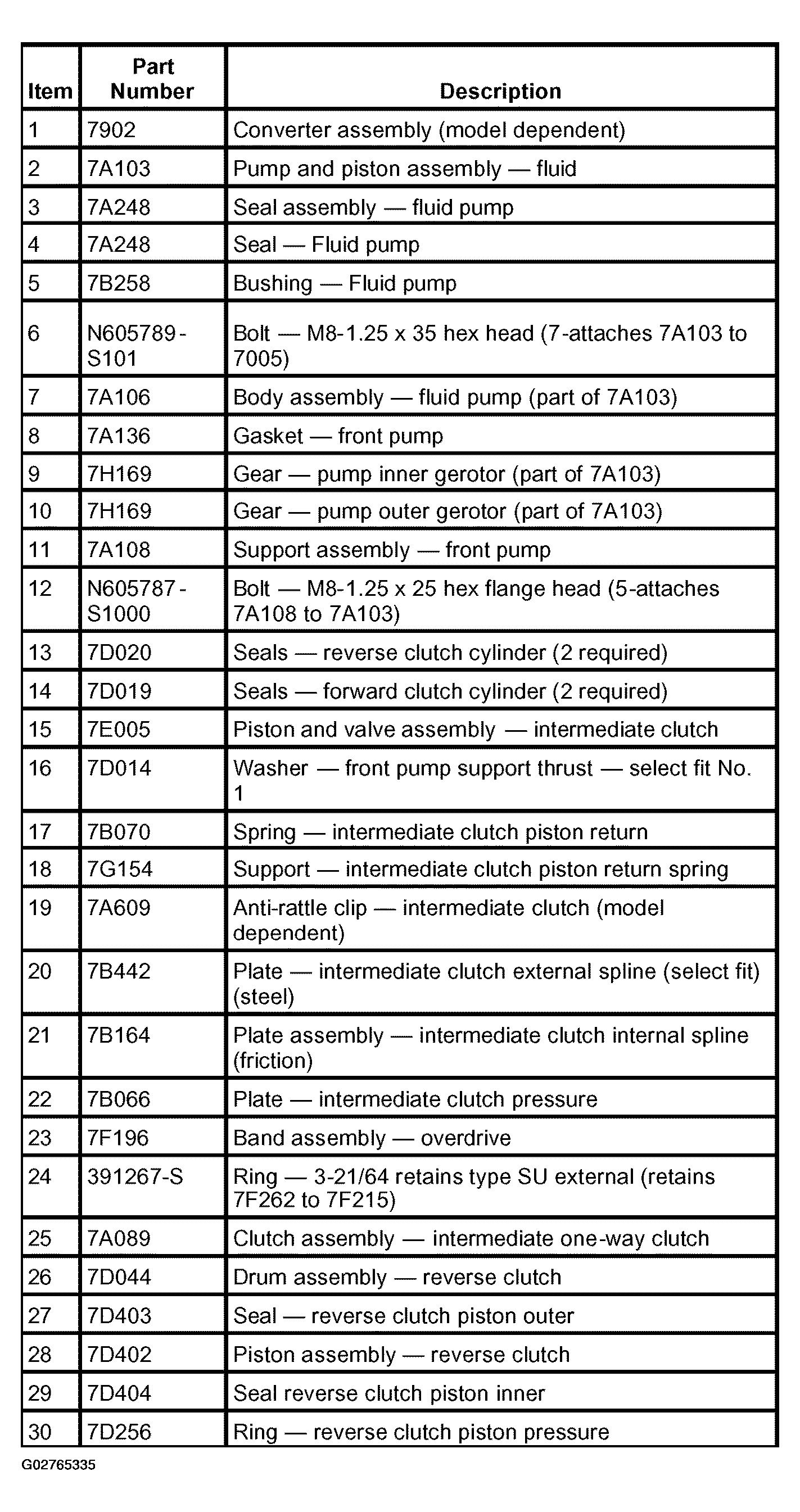

Fig 3: Item Description Of Automatic Transmission (Items 1-30)
Courtesy of FORD MOTOR CO.

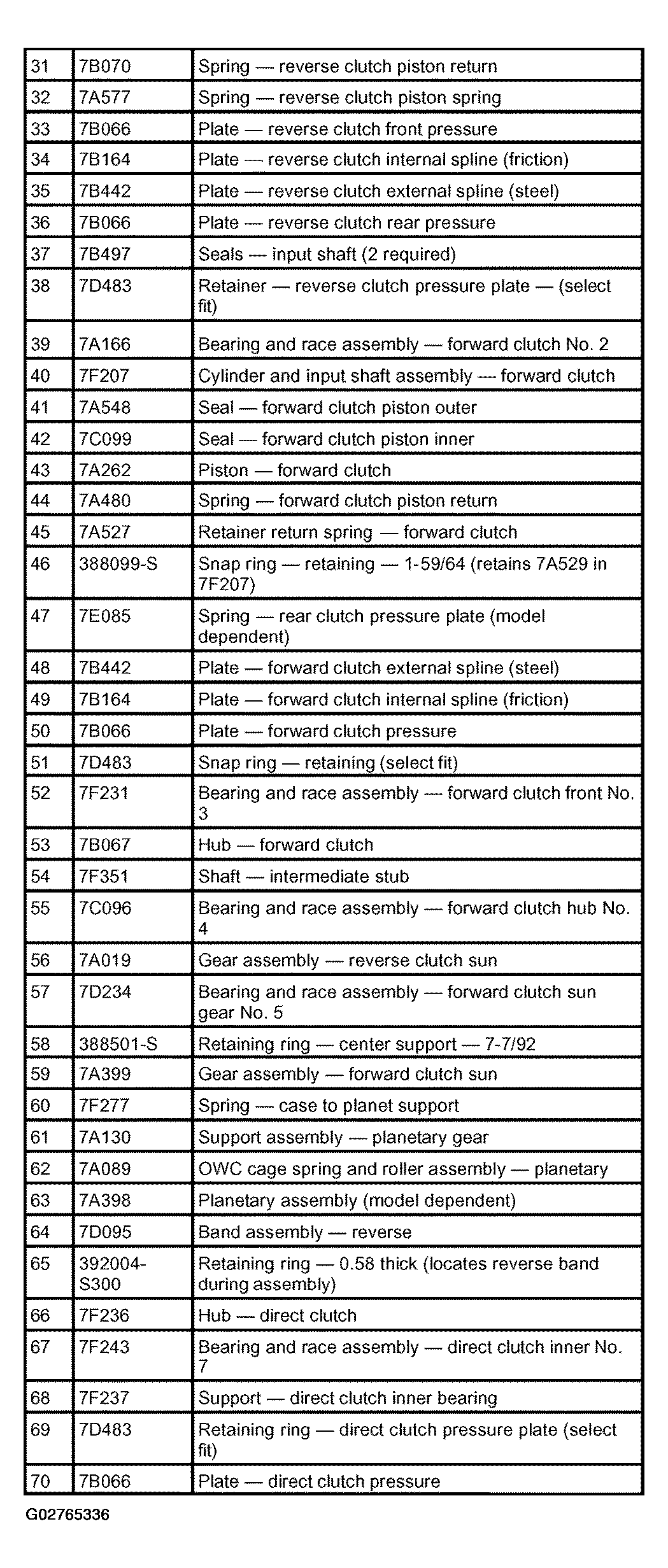

Fig 4: Item Description Of Automatic Transmission (Items 31-70)
Courtesy of FORD MOTOR CO.

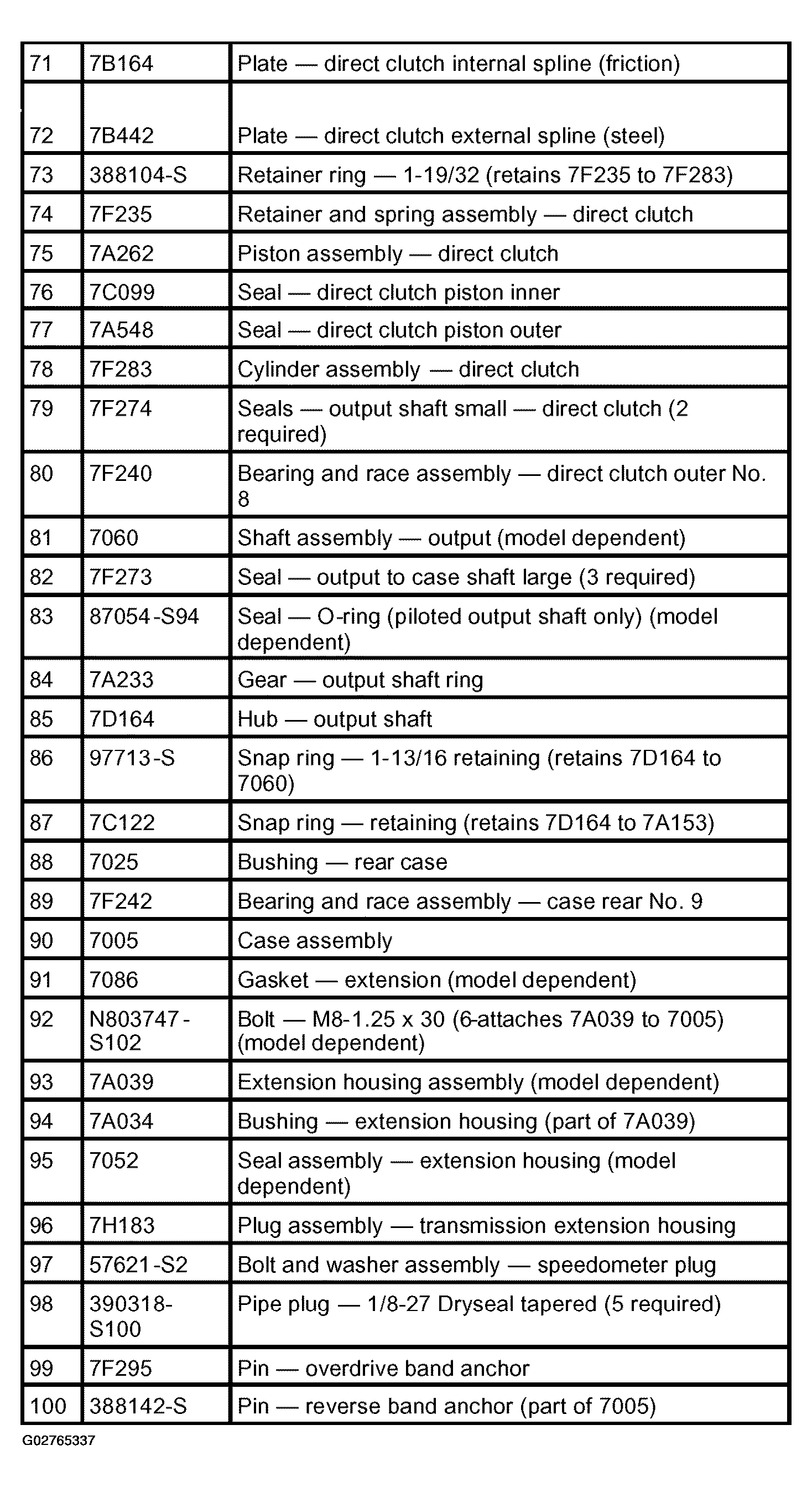

Fig 5: Item Description Of Automatic Transmission (Items 71-100)
Courtesy of FORD MOTOR CO.

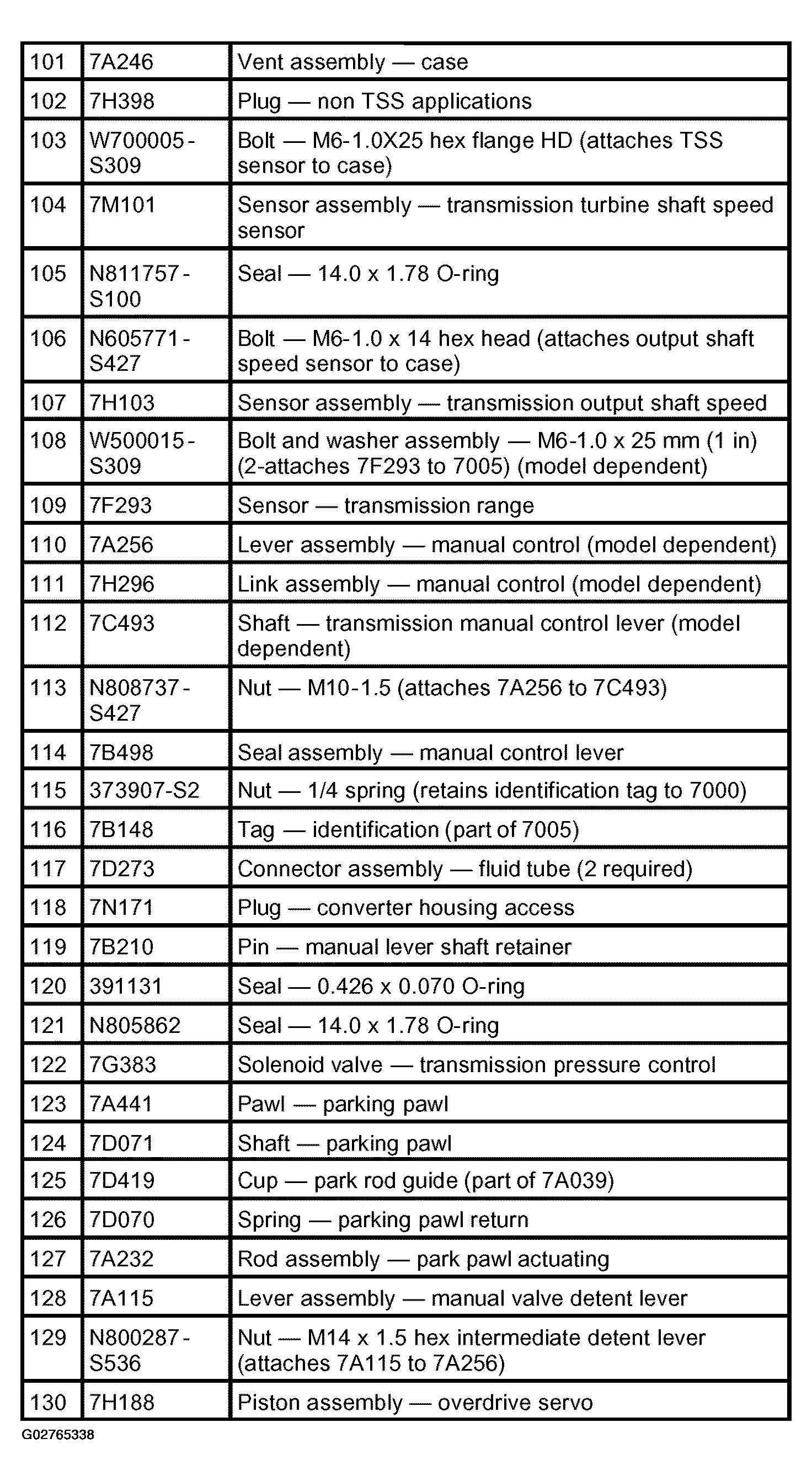

Fig 6: Item Description Of Automatic Transmission (Items 101-130)
Courtesy of FORD MOTOR CO.

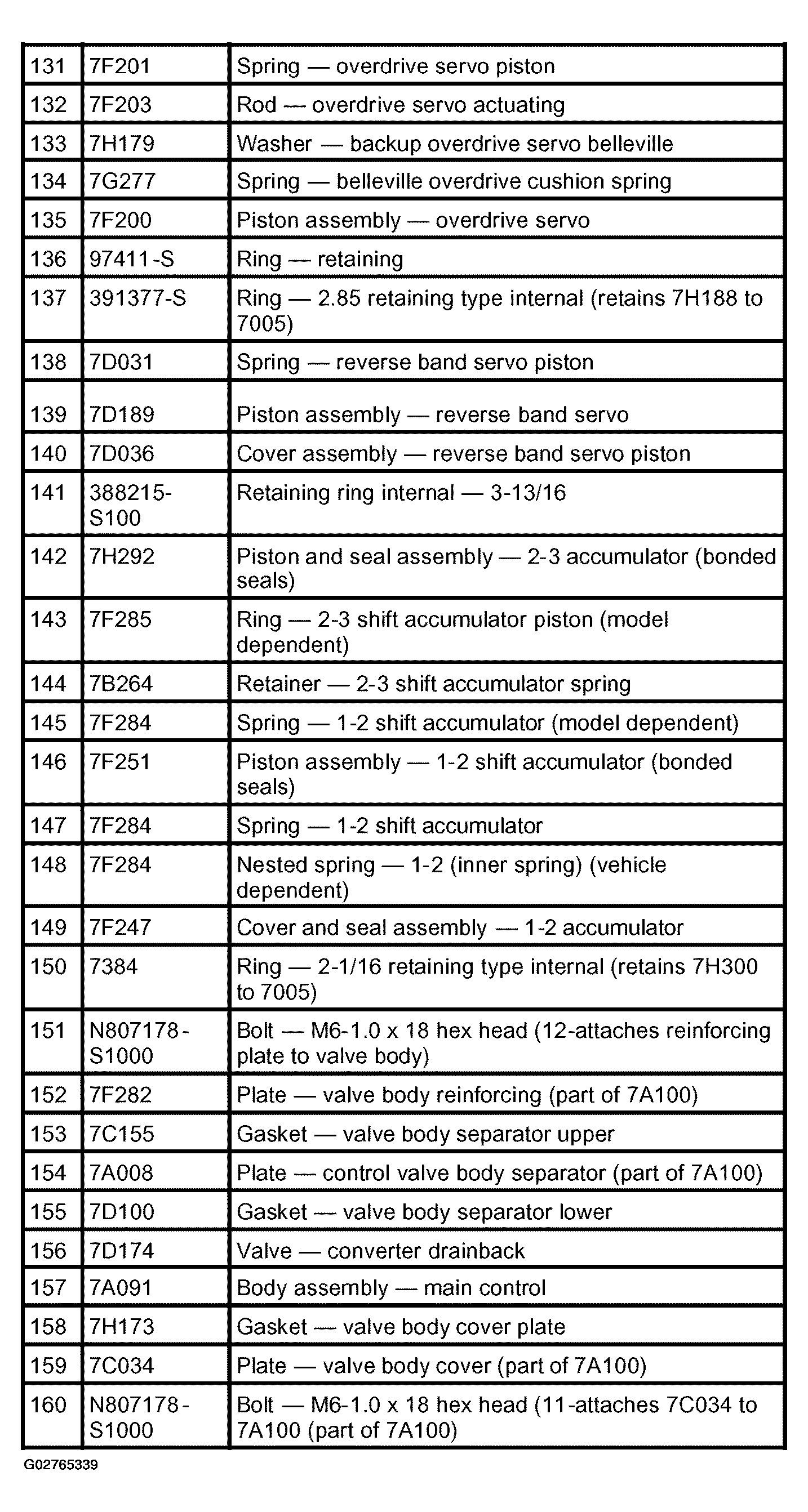

Fig 7: Item Description Of Automatic Transmission (Items 131-160)
Courtesy of FORD MOTOR CO.

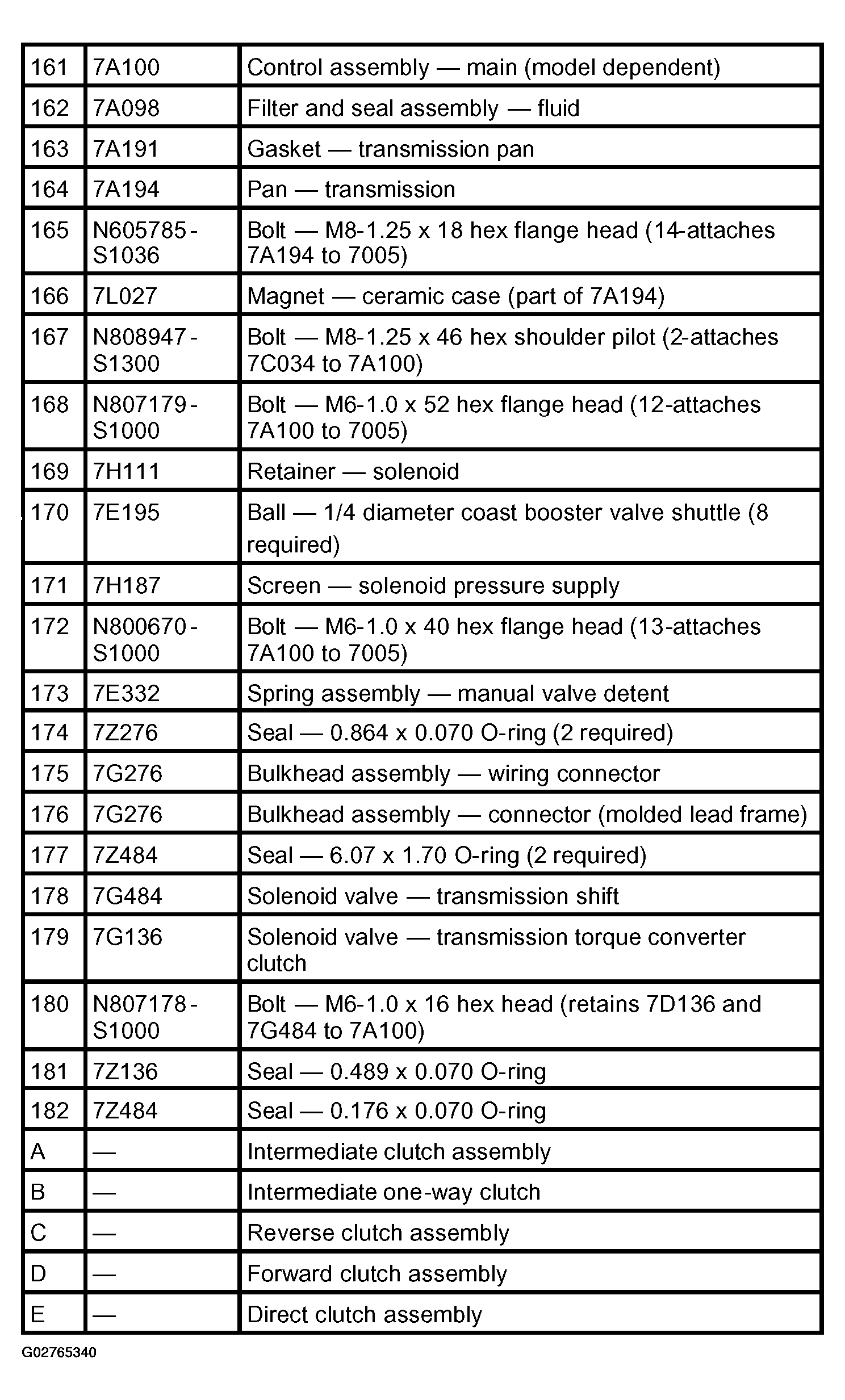

Fig 8: Item Description Of Automatic Transmission (Items 161-182/A-E)
