Hub & Wheel Bearings: Reassembly

WARNING: This page is about a different car, the 1999 Mercury Mystique, 1999 Mercury Cougar, 1999 Ford Contour, 1998 Mercury Mystique, and 1998 Ford Contour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean knuckle bearing bore and hub bearing journal. If hub bearing journal is scored or damaged, replace hub. DO NOT attempt to service hub. Replace bearing if disassembled for any reason.
  2. Install outer snap ring. Using a press and Pinion Bearing Cup Replacer (T80T-4000-E), install wheel bearing. See Fig 1. Install inner snap ring. Install wheel hub into steering knuckle using Threaded Drawbar (T75T-1176-A). See Fig 2.

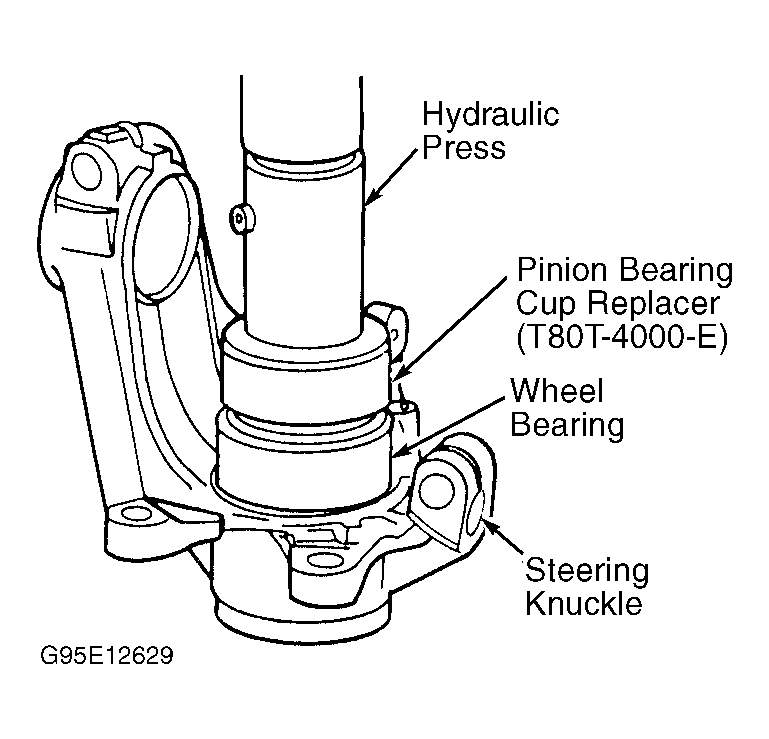

Fig 1: Installing Front Wheel Bearing
G95E12629Courtesy of FORD MOTOR CO.

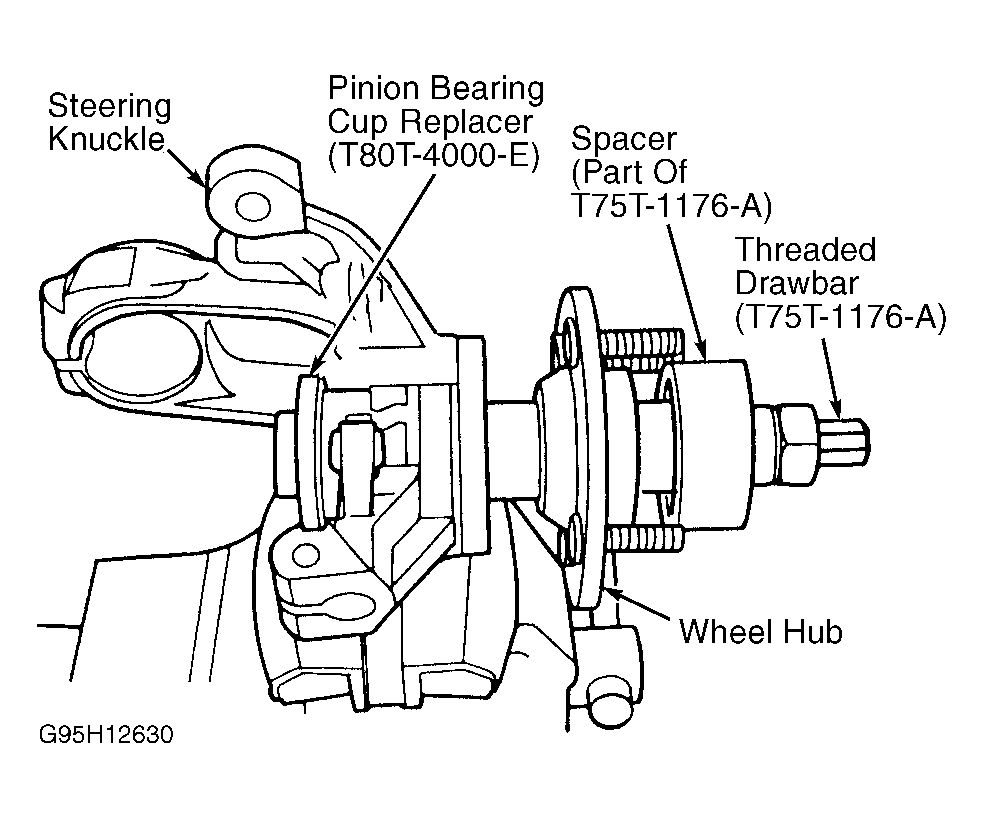

Fig 2: Installing Hub To Steering Knuckle
G95H12630Courtesy of FORD MOTOR CO.
