Section 599 (Automatic Transmission - 4R100): Removal: Transmission: Removal

ALL VEHICLES

1. With the vehicle in NEUTRAL position it on a hoist. For additional information, refer to JACKING & LIFTING .
NOTE: This vehicle has adaptive shift strategies. Whenever the battery has been disconnected and reconnected, some abnormal drive symptoms will occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts (either soft or firm) and that this is a temporary condition that will eventually return to normal operating condition.
2. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
3. Remove the air cleaner air intake duct assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .

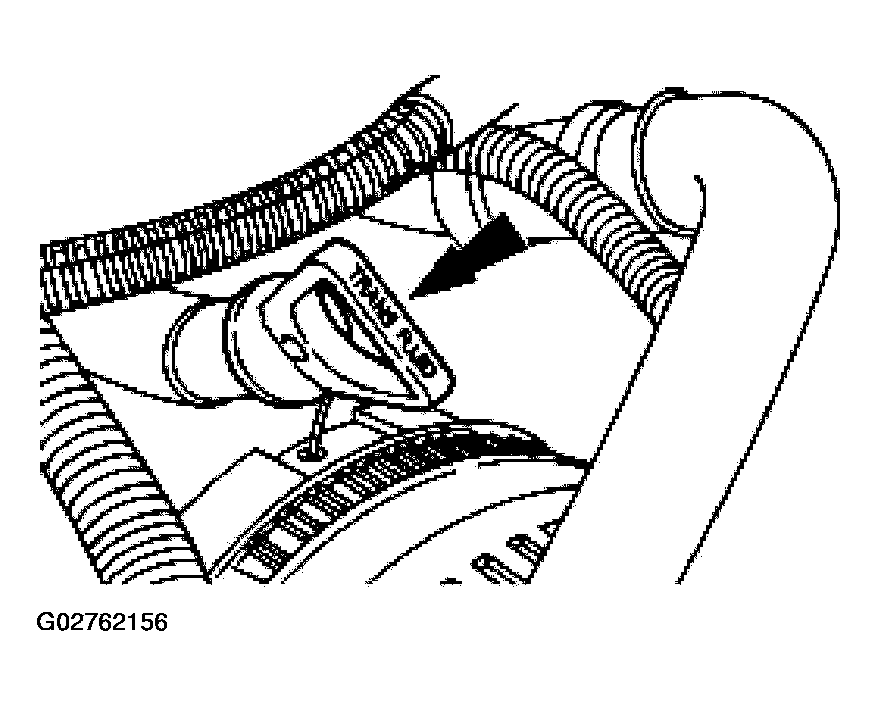

4. Remove the transmission fluid level indicator.
   Fig 1: Removing Transmission Fluid Level

   Courtesy of FORD MOTOR CO.
5. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

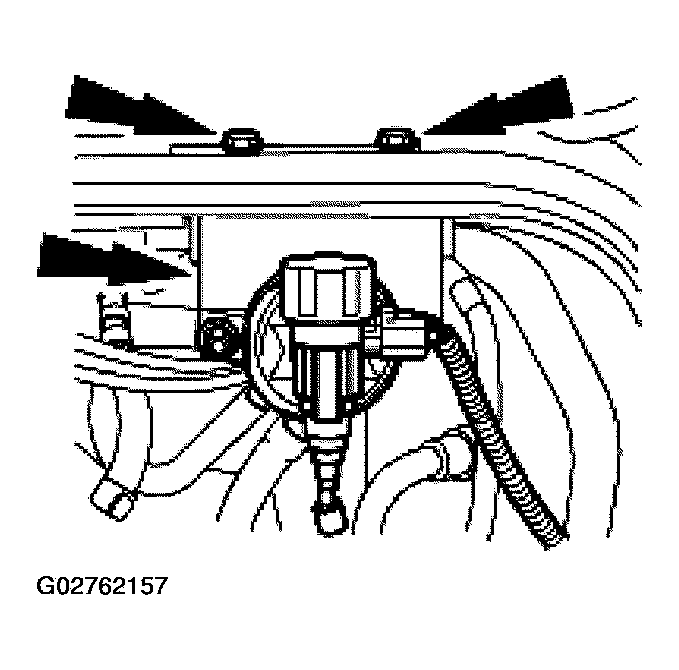

6. Remove the vapor management valve assembly and position it aside.
   Fig 2: Removing Vapor Management Valve Assembly

   Courtesy of FORD MOTOR CO.

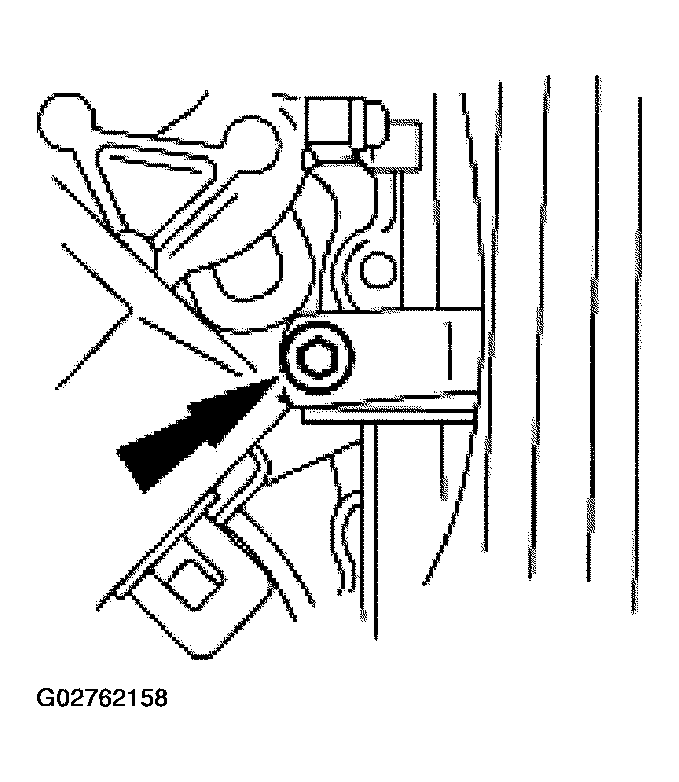

7. Remove the bolt from the bracket and position it aside.
   Fig 3: Removing Bolt From Bracket And Position

   Courtesy of FORD MOTOR CO.
8. Remove the bolt and the fluid filler tube from the short fluid inlet tube, and secure it aside.
   Fig 4: Removing The Bolt And The Fluid Filler Tube From The Short Fluid

   Courtesy of FORD MOTOR CO.

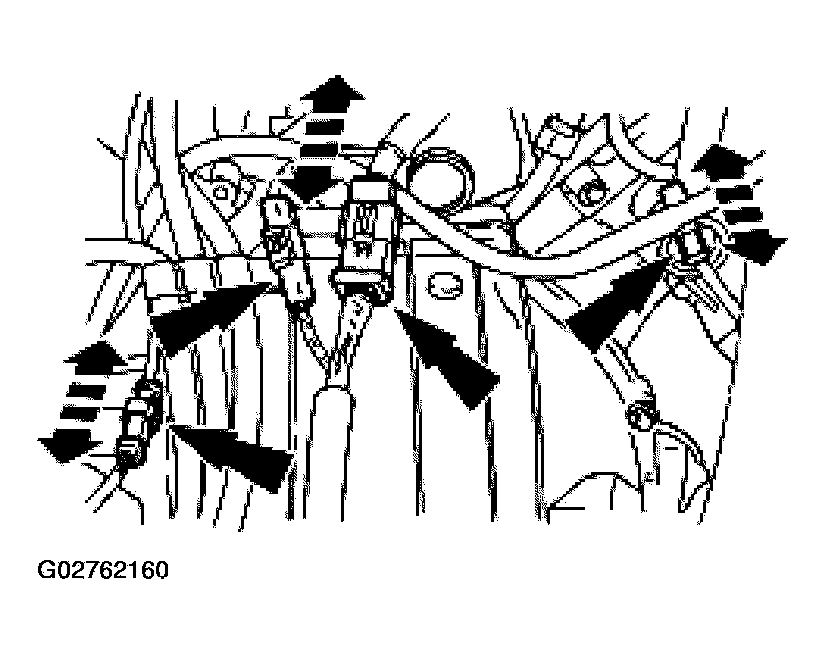

9. Disconnect the electrical harness connectors.
   Fig 5: Remove bolt and fluid filler tube from the short fluid

   Courtesy of FORD MOTOR CO.
NOTE: As the bolts are removed, note the length of each bolt for correct location during installation.
Fig 6: Removing Transmission-To-Engine Retaining Bolts
Courtesy of FORD MOTOR CO.
10. Remove the transmission-to-engine retaining bolts
11. Remove the rear driveshaft. For additional information, refer to DRIVESHAFT .

    VEHICLES EQUIPPED WITH A TRANSMISSION-MOUNTED PARKING BRAKE

12. Remove the transmission-mounted parking brake.
    1. Keep the parking brake vent in the upward position to prevent contamination of the brake shoes and linings.

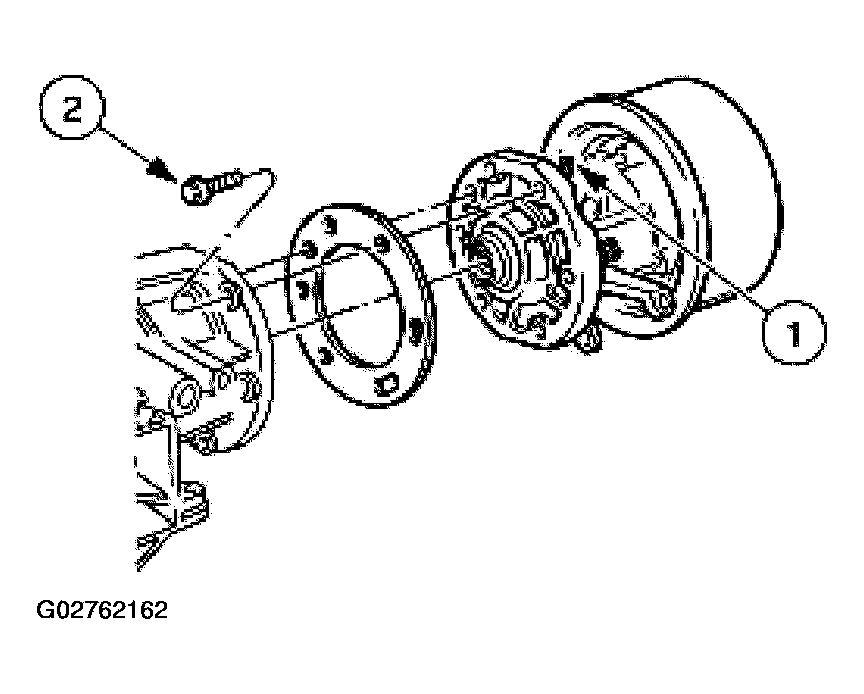

    2. Remove the six bolts, parking brake assembly and the gasket from the extension housing.
       • Discard the bolts and the gasket. Clean the mating surfaces.
    Fig 7: Removing Six Bolts Parking Brake Assembly And Gasket From Extension Housing

    Courtesy of FORD MOTOR CO.

    ALL VEHICLES

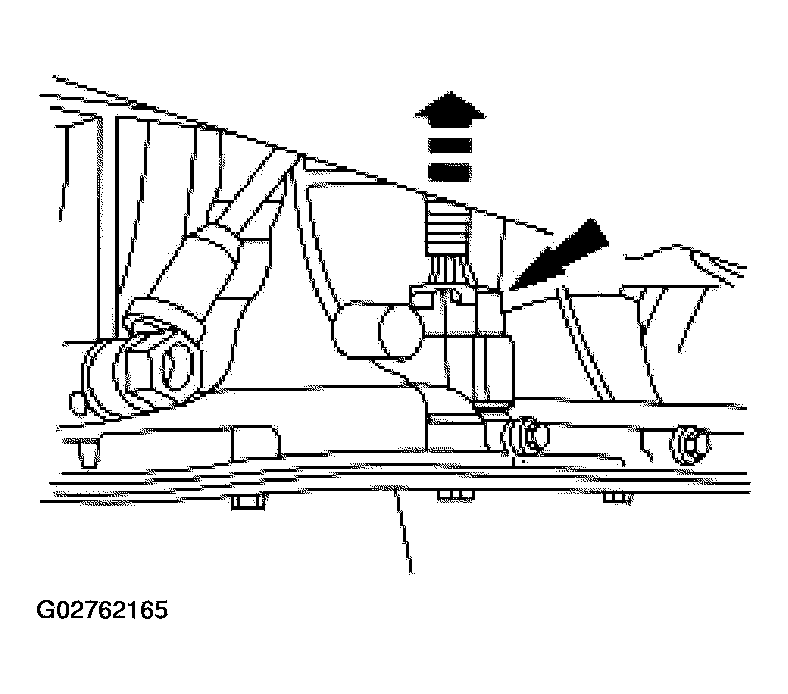

13. Disconnect the transmission range (TR) sensor connector.
    Fig 8: Disconnecting Transmission Range (TR) Sensor Connector

    Courtesy of FORD MOTOR CO.
14. If equipped, remove the heat shield.
    Fig 9: Removing Heat Shield

    Courtesy of FORD MOTOR CO.

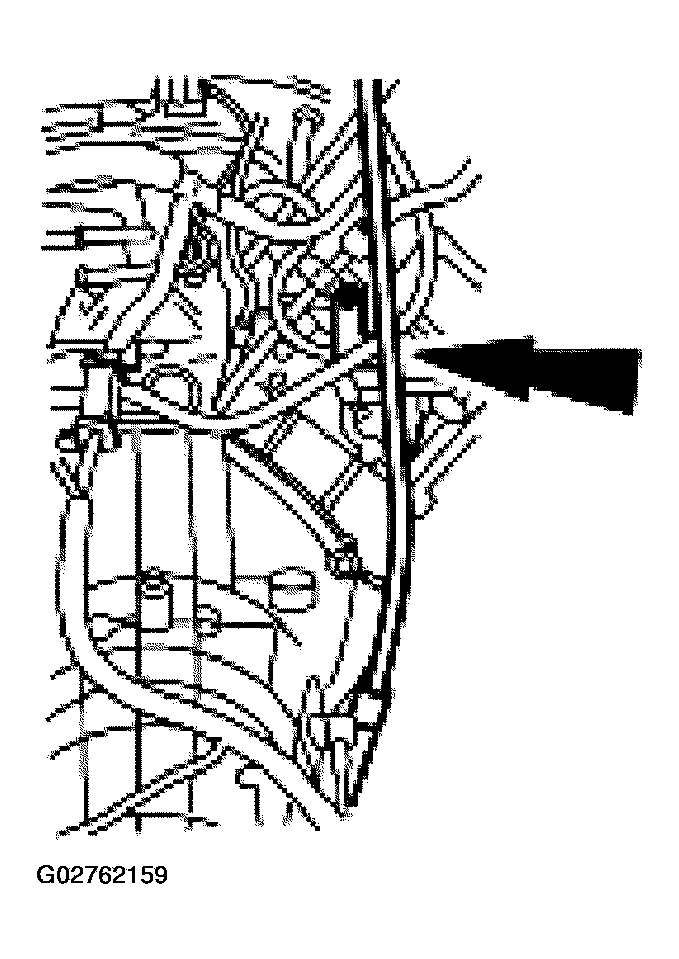

15. Disconnect the solenoid body connector.
    Fig 10: Disconnecting Solenoid Body Connector

    Courtesy of FORD MOTOR CO.

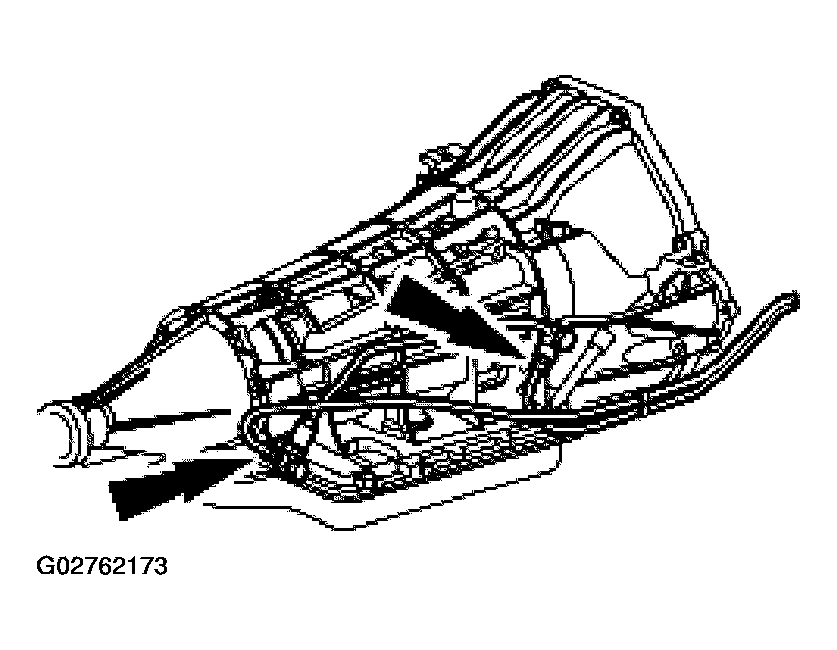

16. Disconnect the shift cable at the transmission and position it aside.
    Fig 11: Disconnecting Shift Cable At Transmission And Position

    Courtesy of FORD MOTOR CO.
17. Remove the starter motor. For additional information, refer to STARTERS - EXCEPT DIESEL or STARTERS - DIESEL .

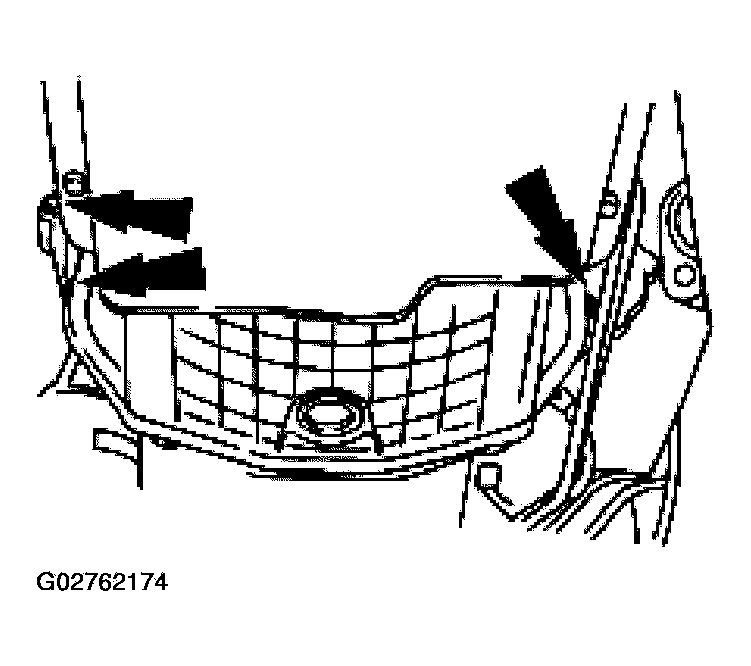

18. Remove the cylinder block opening cover.
    Fig 12: Removing Cylinder Block Opening Cover

    Courtesy of FORD MOTOR CO.
19. Remove and discard the torque converter-to-flexplate retaining nuts.
    Fig 13: Removing And Discard Torque Converter-To-Flexplate Retaining Nuts

    Courtesy of FORD MOTOR CO.

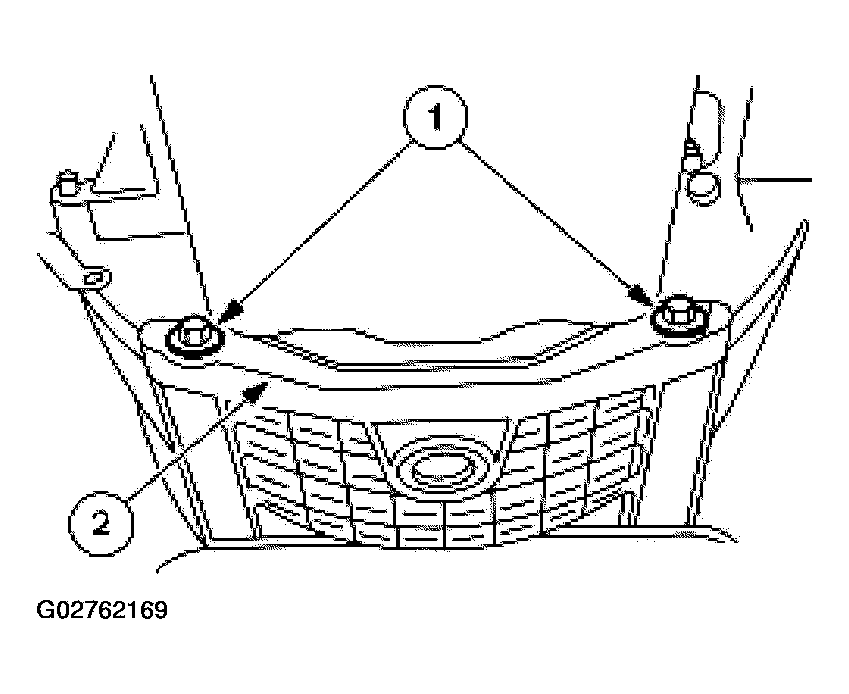

20. Remove the flexplate inspection cover.
    1. Remove the bolts.
    2. Remove the flexplate inspection cover.
    Fig 14: Removing Flexplate Inspection Cover

    Courtesy of FORD MOTOR CO.
CAUTION: Be sure not to raise the back of the transmission too high. If it makes contact with the underbody, damage to the turbine shaft speed (TSS) sensor can occur.
21. Install a suitable high-lift transmission jack.

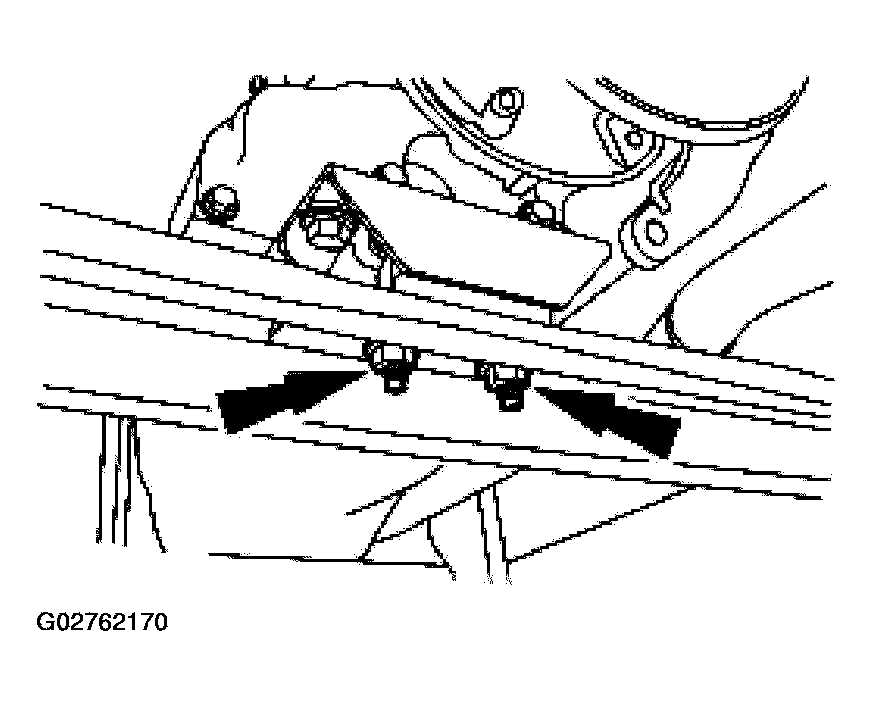

22. Remove the rear transmission mount nuts.
    Fig 15: Removing Rear Transmission Mount Nuts

    Courtesy of FORD MOTOR CO.
23. Remove the heat shields, if equipped.
    Fig 16: Removing Heat Shields

    Courtesy of FORD MOTOR CO.

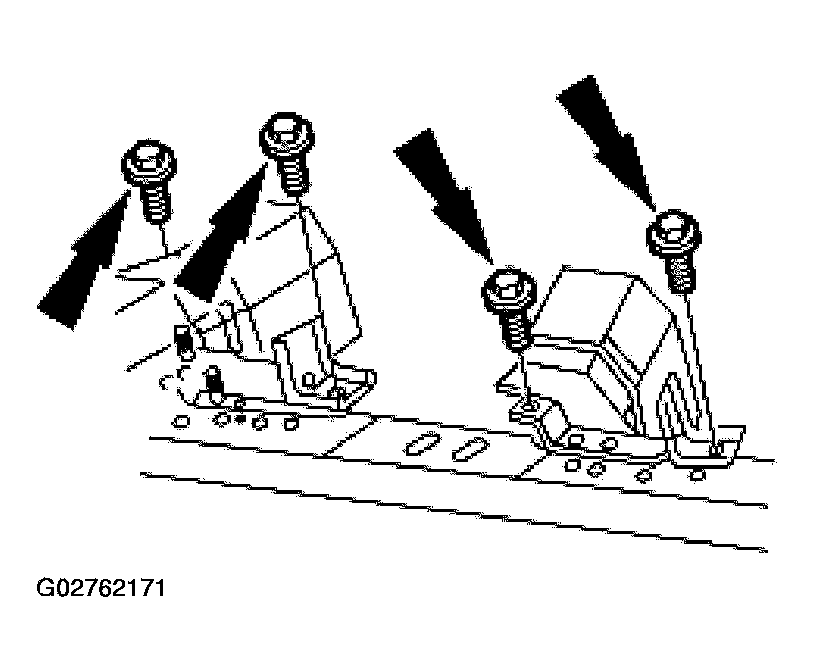

24. Remove the transmission support crossmember.
    Fig 17: Removing Transmission Support Crossmember

    Courtesy of FORD MOTOR CO.

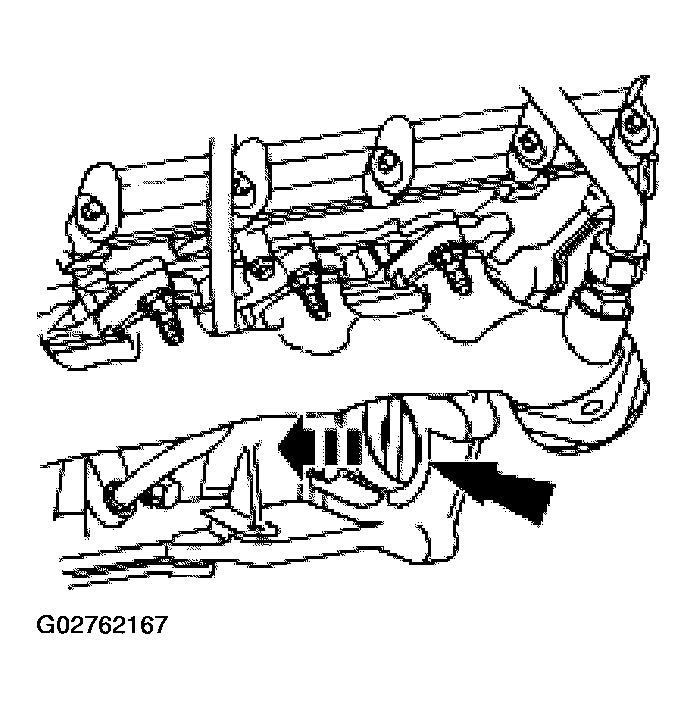

25. Disconnect the fluid cooler tubes at the cooler bypass valve (CBV). Plug all fittings and position the tubes aside.
    Fig 18: Disconnecting Fluid Cooler Tubes At Cooler Bypass Valve (CBV)

    Courtesy of FORD MOTOR CO.

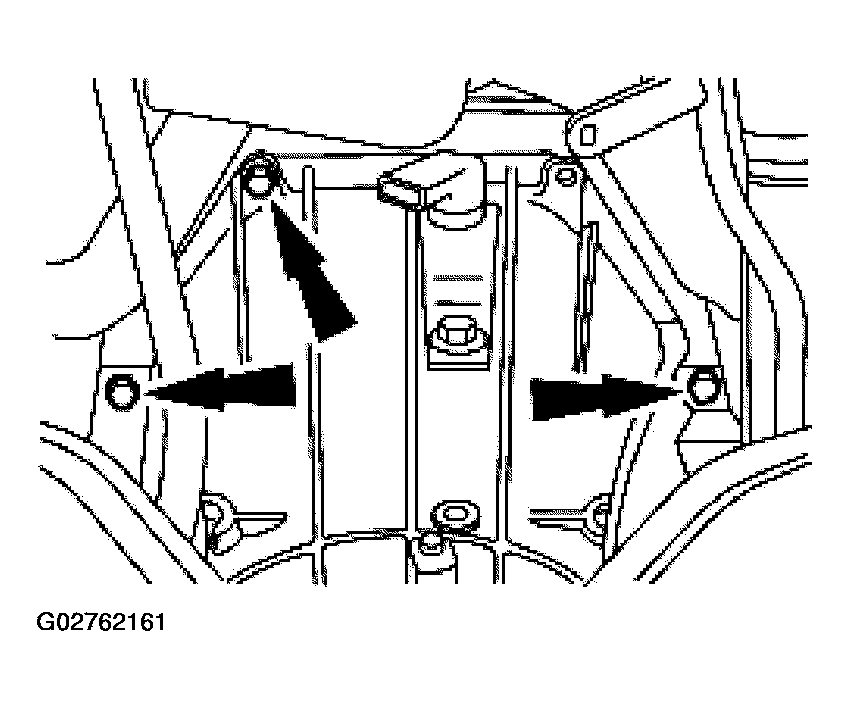

26. Remove the transmission-to-engine bolts.
    Fig 19: Removing Transmission-To-Engine

    Courtesy of FORD MOTOR CO.
WARNING: The torque converter is heavy and can result in injury if it falls out of the transmission. Secure the torque converter in the transmission.

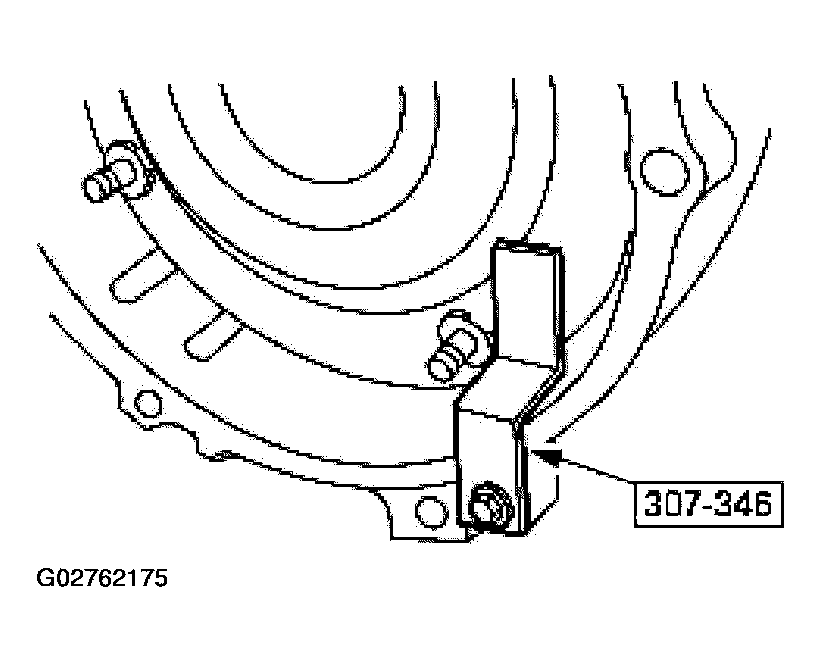

Fig 20: Installing Special Tool
Courtesy of FORD MOTOR CO.
27. Leaving the transmission in a horizontal position, slide it back far enough to install the special tool.
    • Install the special tool.
CAUTION: Use care while removing the transmission to avoid damage to the TSS sensor.
CAUTION: Do not use the cooler bypass valve (CBV) as a handle. Damage to the cooler bypass valve assembly can occur or damage to the case can result.
CAUTION: Use a safety strap to hold the transmission to the high-lift transmission jack. Place the strap behind the CBV to prevent damage to the cooler bypass valve.

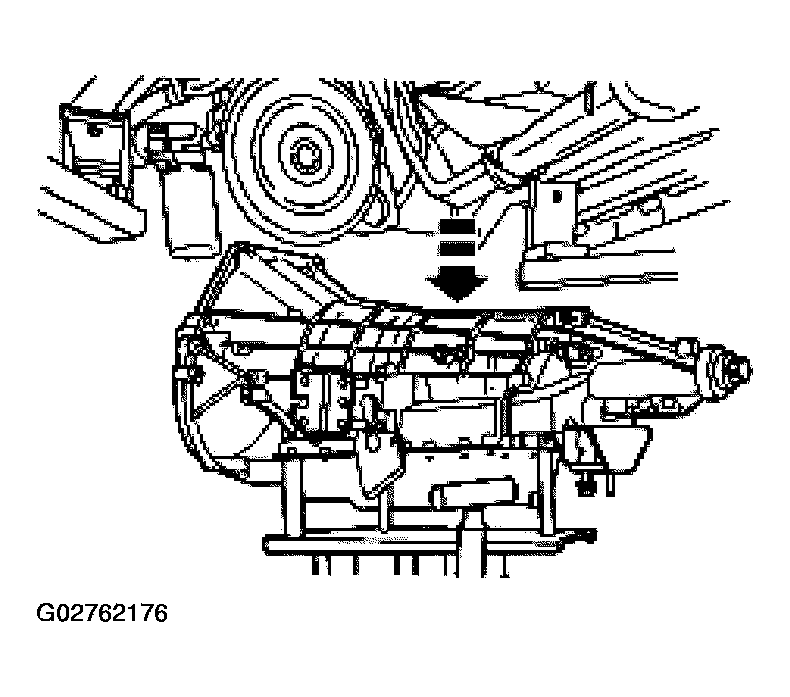

Fig 21: Removing Transmission From Vehicle
Courtesy of FORD MOTOR CO.
28. Remove the transmission from the vehicle.
    • Move the transmission extension housing with a slight side-to-side motion to separate the transmission from the engine and the torque converter from the flexplate.
29. Once the transmission has been removed the transmission the fluid coolers, cooler tubes and the cooler bypass valve will need to be cleaned. Carry out the transmission fluid cooler-backflushing and cleaning. For additional information, refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .
