Transmission Insulator & Retainer: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator and retainer.

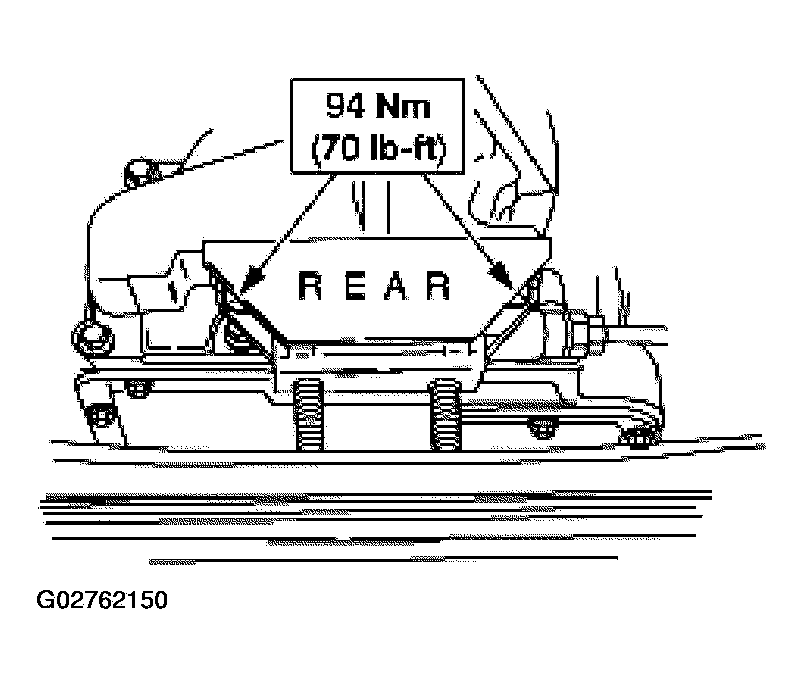

    Fig 1: Installing Insulator And Retainer
    G02762150Courtesy of FORD MOTOR CO.
  2. Lower the transmission on to the rear crossmember support.

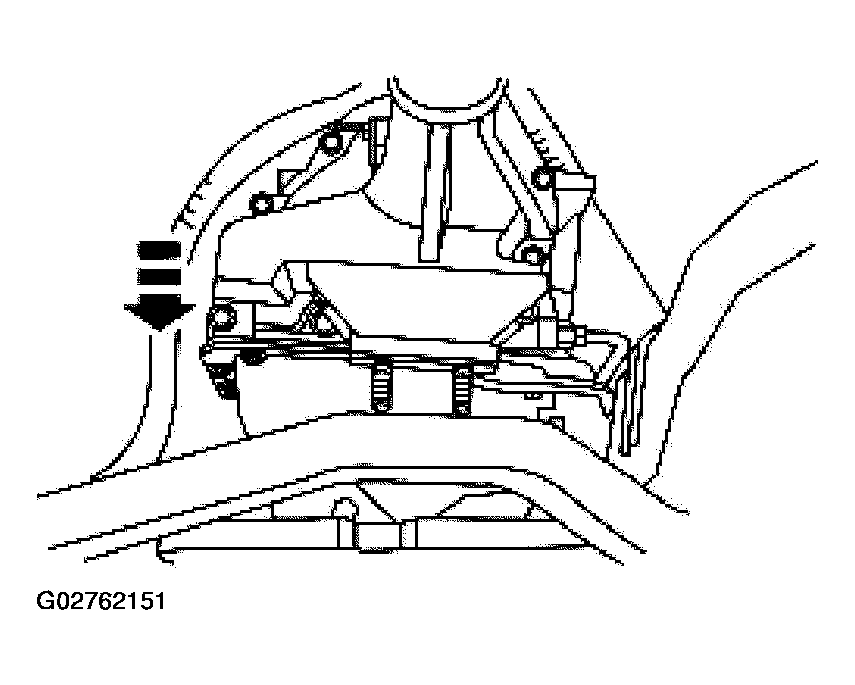

    Fig 2: Identifying Lower Transmission On To Rear Crossmember Support
    G02762151Courtesy of FORD MOTOR CO.
  3. Install the nuts.
    Fig 3: Installing Nuts
    G02762152Courtesy of FORD MOTOR CO.
  4. Remove the high-lift transmission jack with the special tool from the transmission.

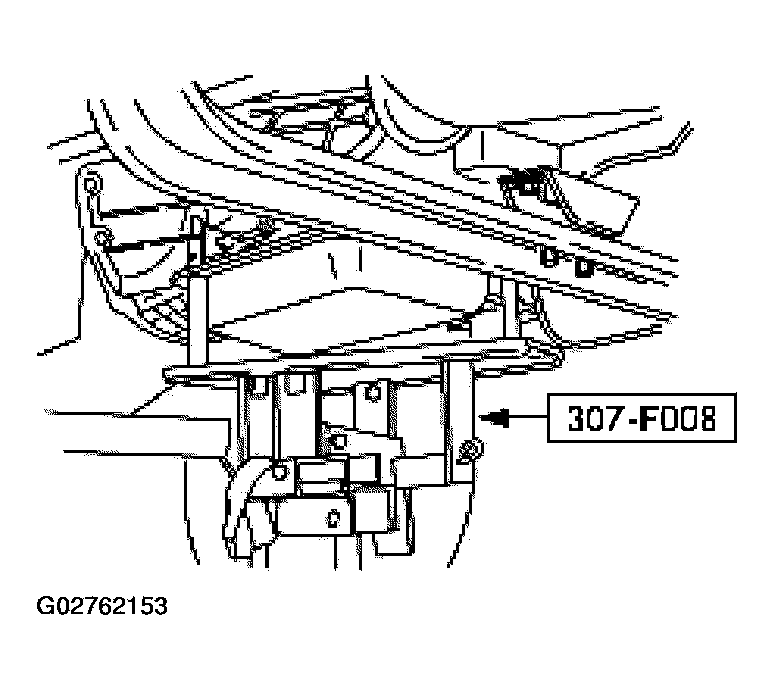

    Fig 4: Removing High-Lift Transmission Jack
    G02762153Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid pan-to-case retaining bolts.

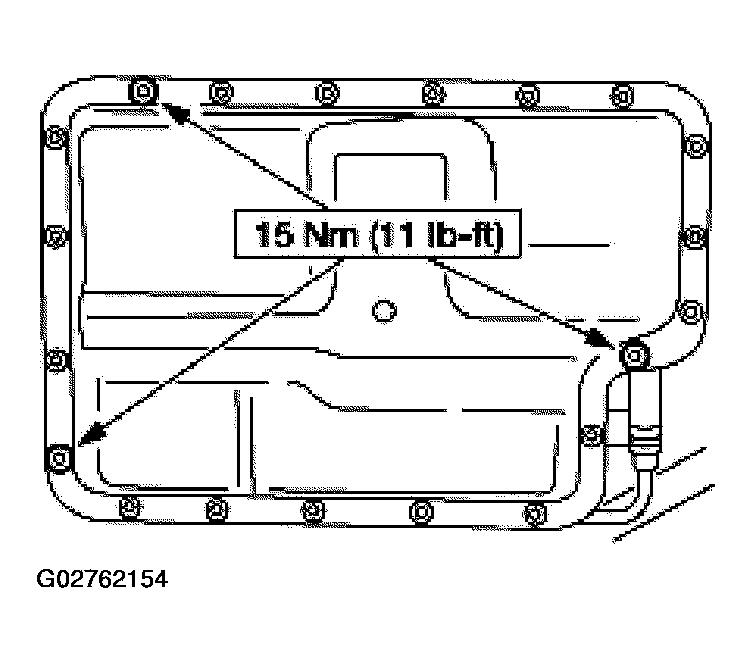

    Fig 5: Installing Transmission Fluid Pan-To-Case
    G02762154Courtesy of FORD MOTOR CO.
  6. Remove the supports and lower the vehicle.
