Transmission Filler Tube: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fluid level indicator.
    Fig 1: Removing Fluid Level Indicator
    G02762034Courtesy of FORD MOTOR CO.
  2. With the vehicle in NEUTRAL position it on a hoist. For additional information, refer to JACKING & LIFTING .
  3. Remove the RH front wheel.
  4. Remove the inner wheel liner.

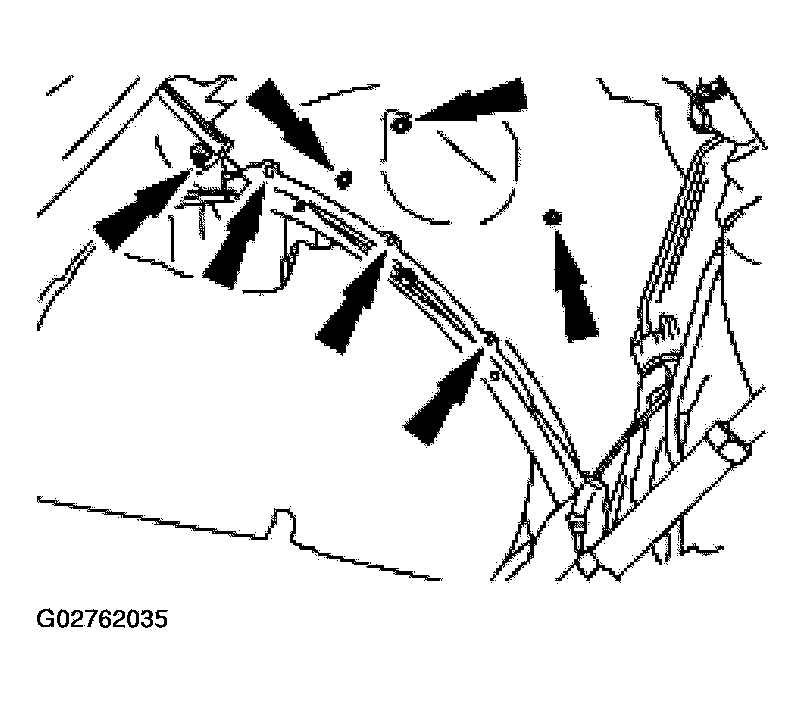

    Fig 2: Removing Inner Wheel Liner
    G02762035Courtesy of FORD MOTOR CO.
  5. Remove the bolt.

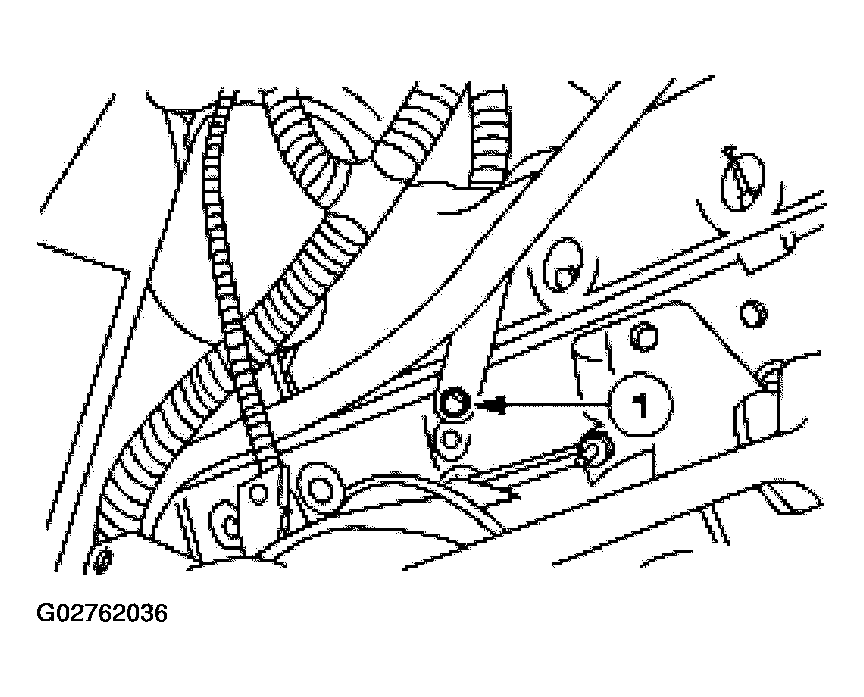

    Fig 3: Removing Bolt
    G02762036Courtesy of FORD MOTOR CO.
    6. NOTE: It may be necessary to disconnect the wiring harness from the starter motor to remove the transmission fluid filler tube.

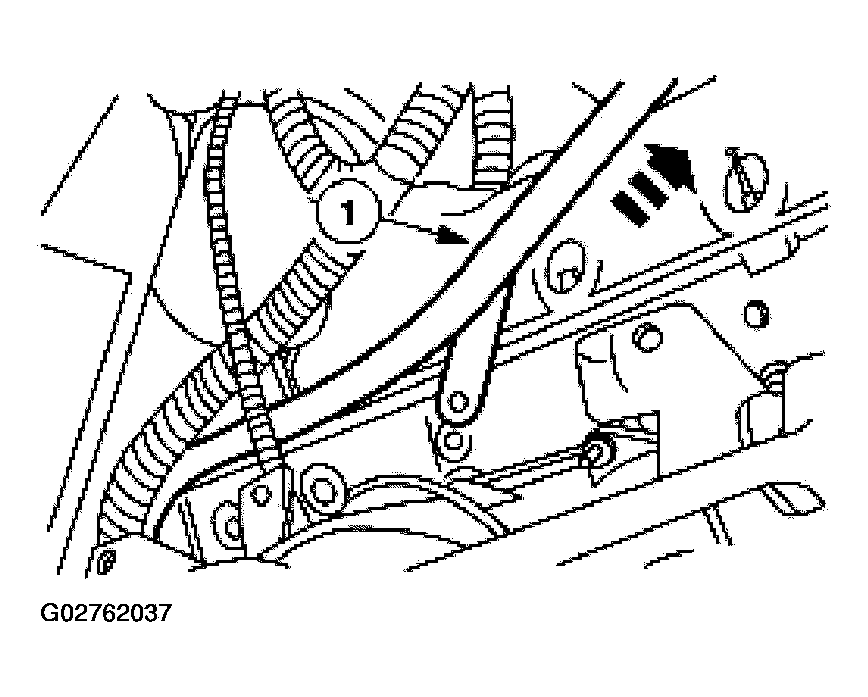

    Fig 4: Removing Transmission Fluid Filler Tube
    G02762037Courtesy of FORD MOTOR CO.
  6. Remove the transmission fluid filler tube.
