Transmission Filler Tube: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Coat the O-ring at the bottom of the transmission fluid filler tube with clean automatic transmission fluid. If removed install the starter wiring harness.

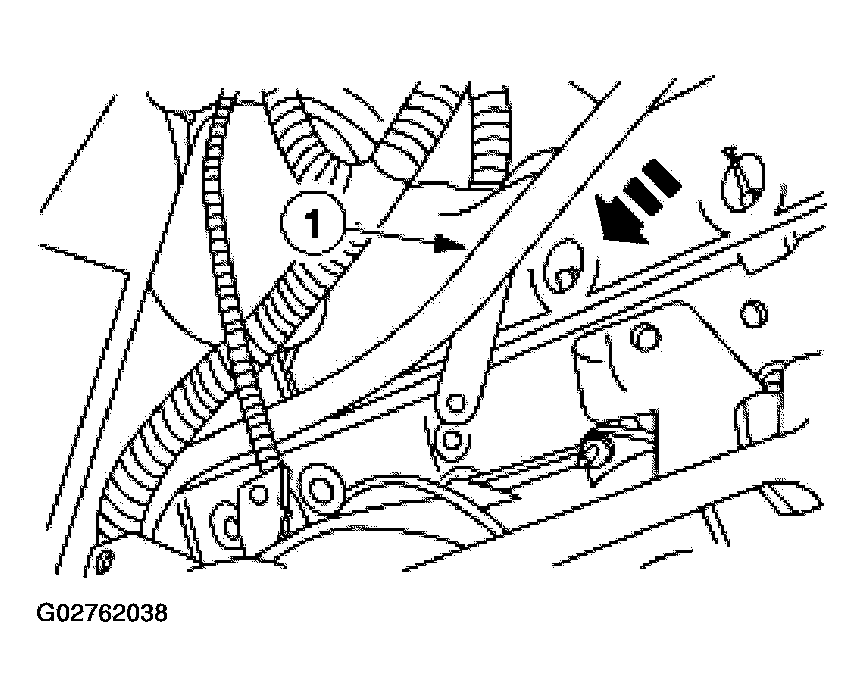

    Fig 1: Installing Transmission Fluid Filler Tube
    G02762038Courtesy of FORD MOTOR CO.
  1. Install the transmission fluid filler tube.
  2. Install the transmission fluid filler tube bolt.

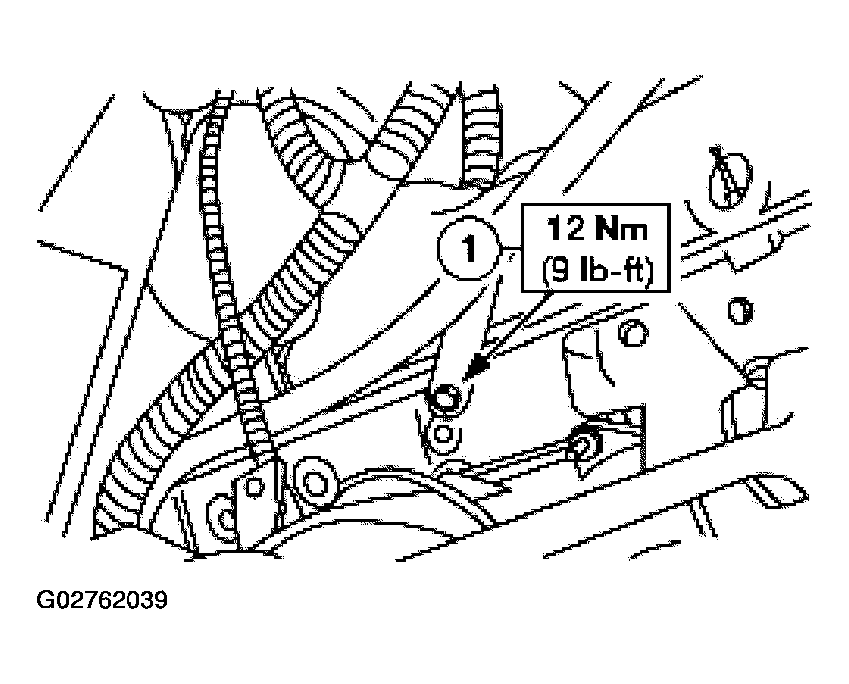

    Fig 2: Installing Transmission Fluid Filler Tube
    G02762039Courtesy of FORD MOTOR CO.
  3. Install the inner wheel liner.

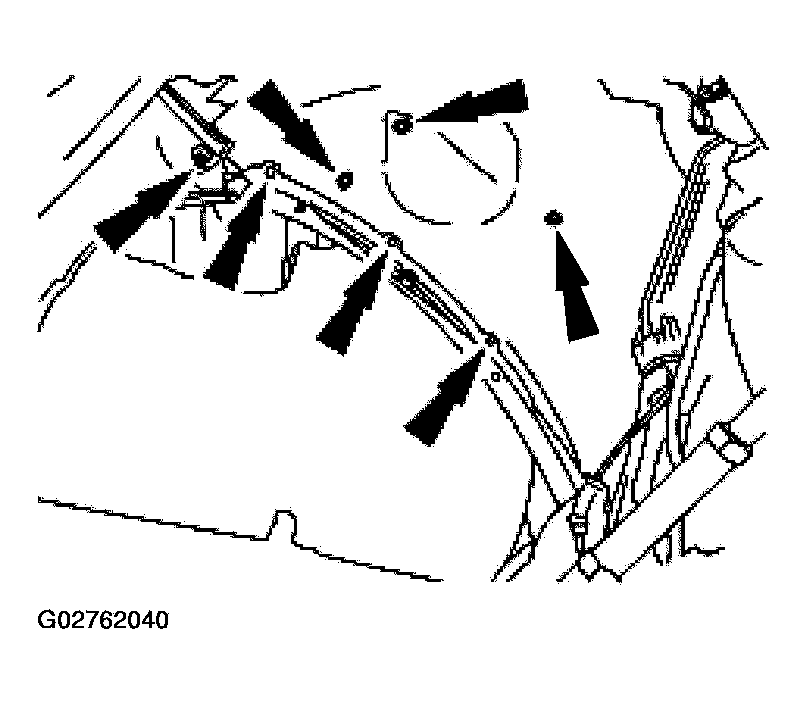

    Fig 3: Installing Inner Wheel Liner
    G02762040Courtesy of FORD MOTOR CO.
  4. Install the RH front wheel.
  5. Lower the vehicle.
  6. Install the fluid level indicator.
    Fig 4: Installing Rh Front Wheel
    G02762041Courtesy of FORD MOTOR CO.
