Park System: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If installing a new park gear, refer to OUTPUT SHAFT .

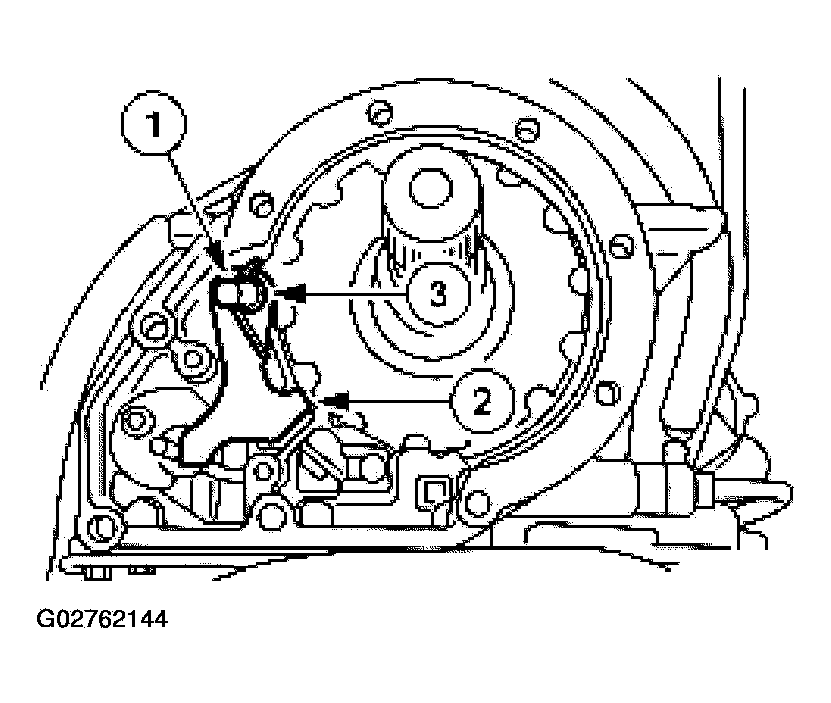

    Fig 1: Installing Park Pawl Return Spring
    G02762144Courtesy of FORD MOTOR CO.
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

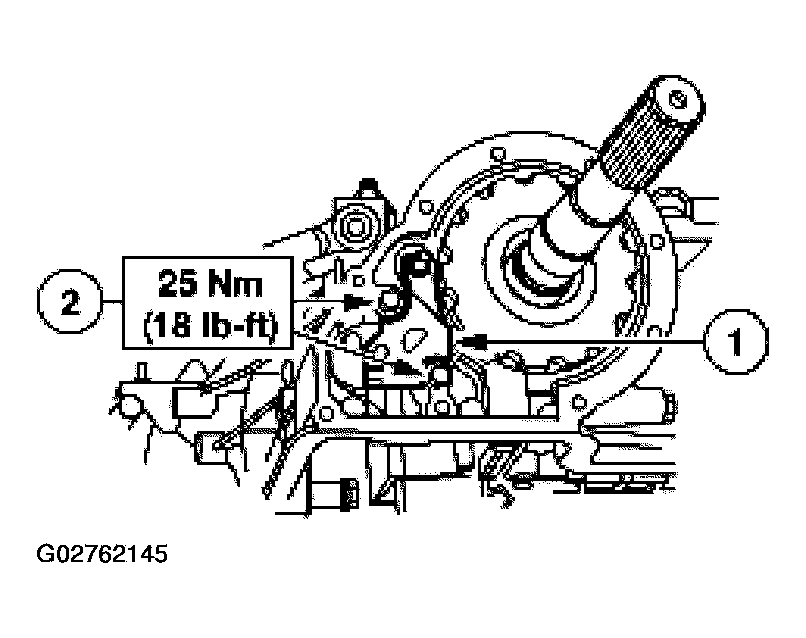

    Fig 2: Installing Parking Rod Guide Plate
    G02762145Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing.
