Main Control Valve Body - Accumulator Body, Solenoid Body: Installation

ALL VEHICLES

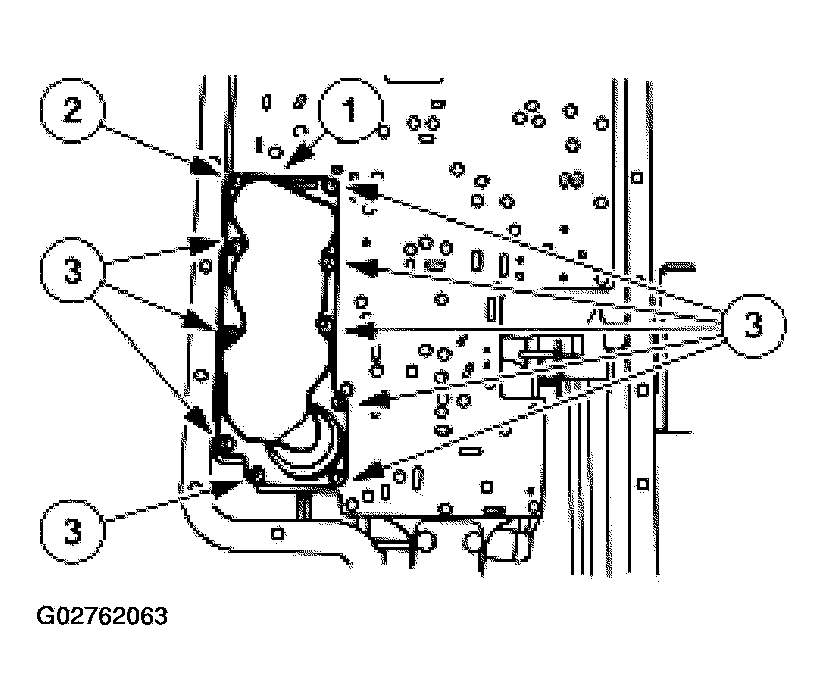

1. Assemble the new gaskets to the valve body separator plate.
   1. Main control to case gasket.
   2. Valve body separator plate.
   3. Main control to separator plate gasket.
   Fig 1: Applying A Light Film Of Petroleum Jelly To Valve Body Separator Plate Prior To Assembling

   Courtesy of FORD MOTOR CO.
   NOTE: Apply a small amount of petroleum jelly to each check ball prior to positioning them on the valve body separator plate.

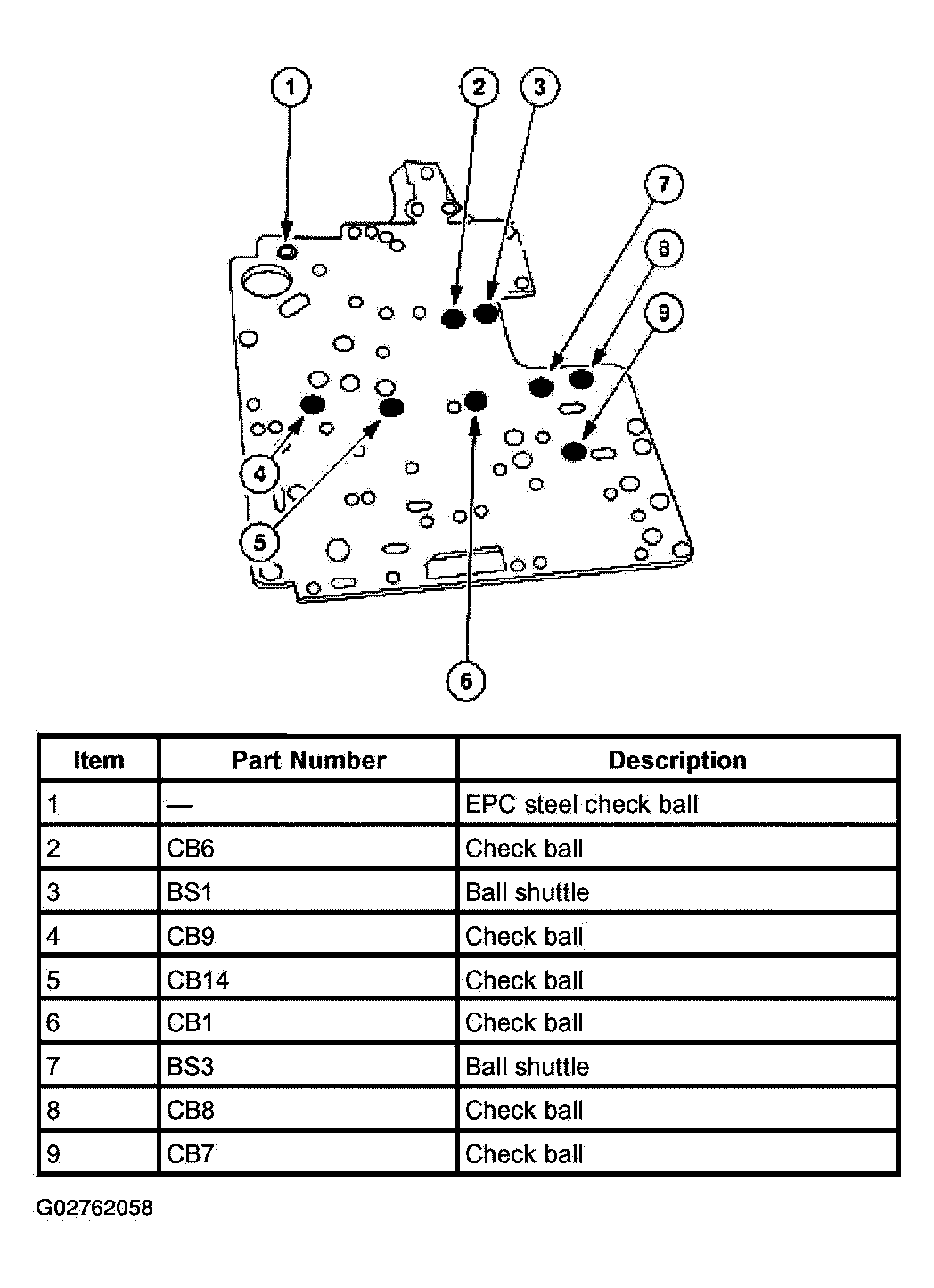

2. Install eight rubber and one steel, EPC check balls.
   Fig 2: Installing Eight Rubber And One Steel EPC

   Courtesy of FORD MOTOR CO.
   NOTE: Apply petroleum jelly to the EPC check ball spring prior to installing it into the case.
3. Install the EPC check ball spring.
   Fig 3: Installing EPC Check Ball Spring

   Courtesy of FORD MOTOR CO.
4. Position the valve body separator plate and the gaskets to the case carefully, to retain the check balls.
   Fig 4: Positioning Valve Body Separator Plate And Gaskets

   Courtesy of FORD MOTOR CO.

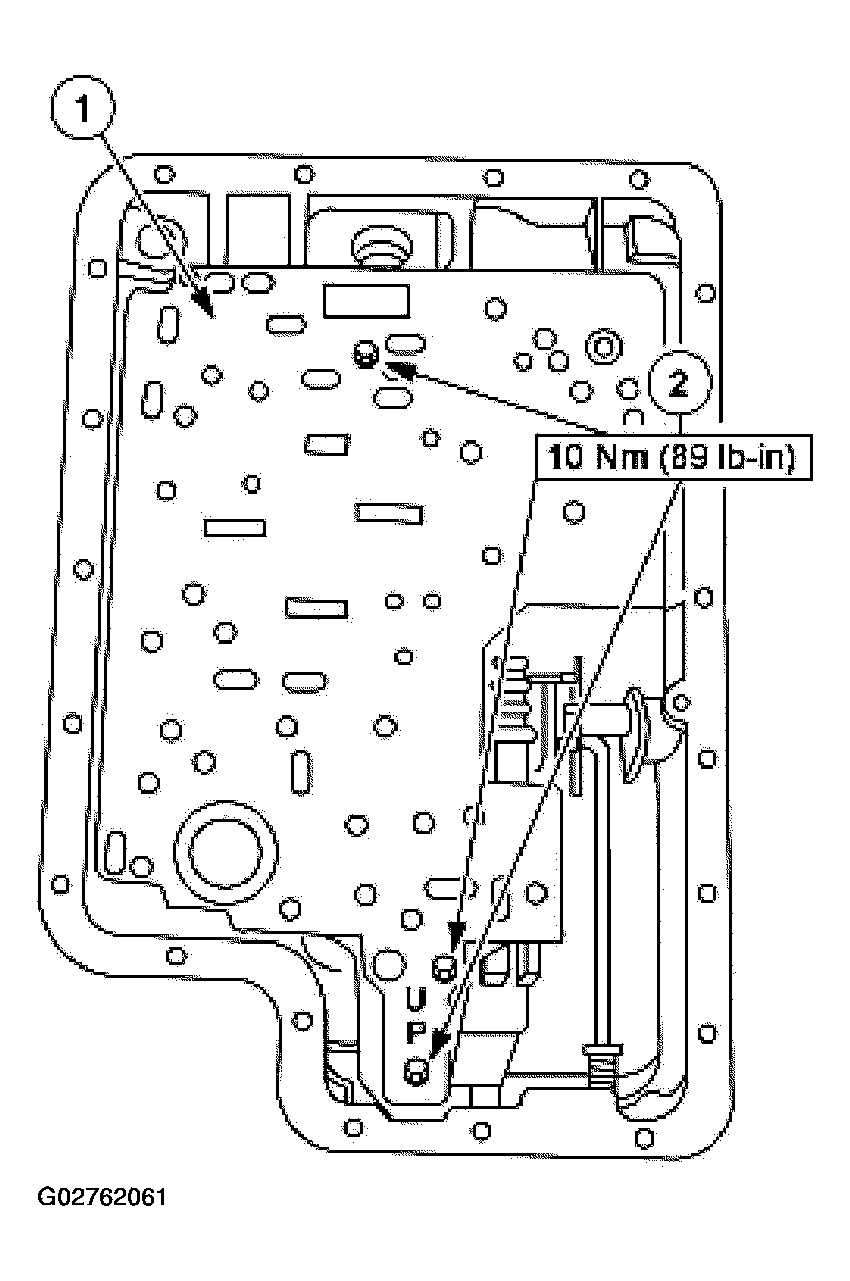

   NOTE: The word UP stamped on the separator plate reinforcing plate must be visible when installed.

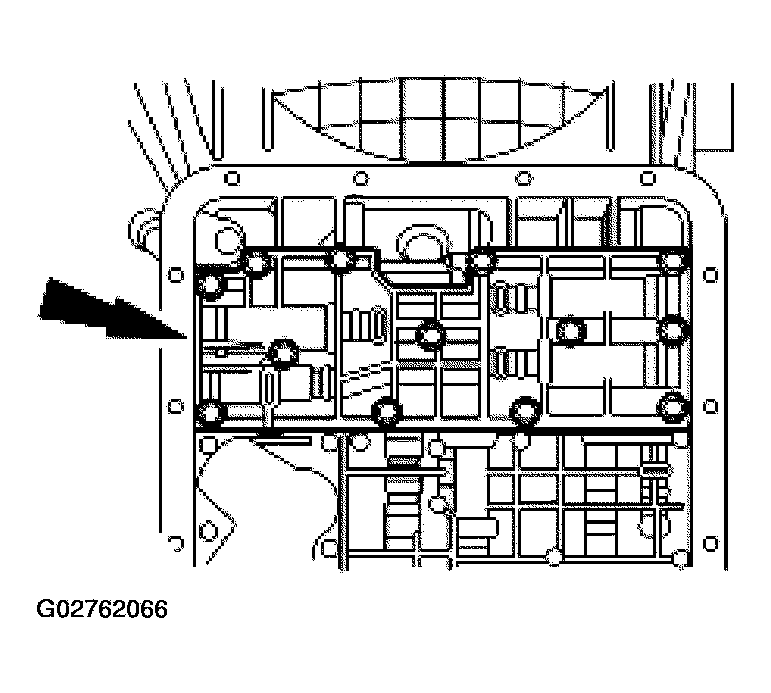

5. Install the separator plate reinforcing plate.
   1. Install the separator plate reinforcing plate.
   2. Install the retaining bolts.
   Fig 5: Installing Separator Plate Reinforcing Plate

   Courtesy of FORD MOTOR CO.

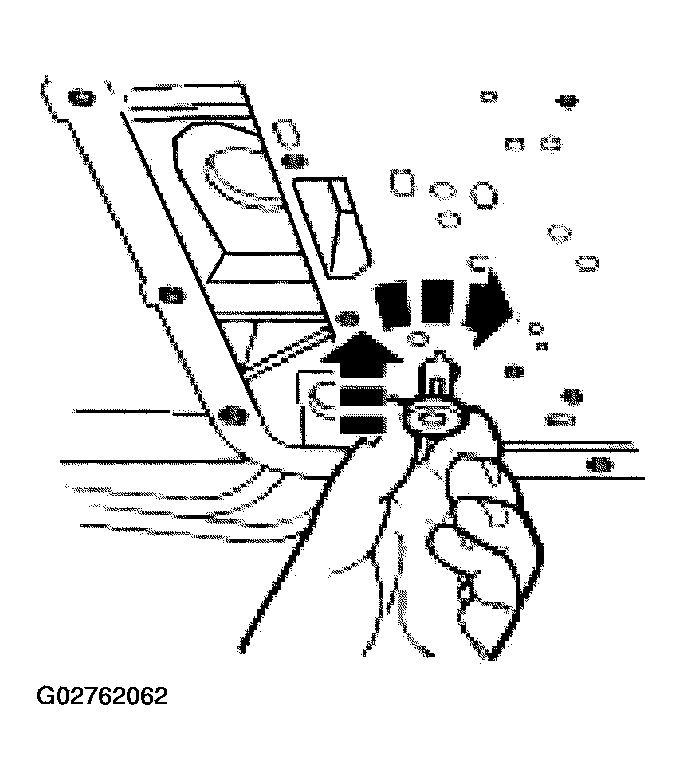

6. Install the solenoid screen assembly by pushing it in and rotating it to lock.
   Fig 6: Installing Solenoid Screen Assembly

   Courtesy of FORD MOTOR CO.
   NOTE: Prior to installing the solenoid body assembly, coat the case connector bore with silicone grease.
7. Install the solenoid body assembly.
   1. Install the solenoid body assembly.
   2. Install the nut.
   3. Install the bolts and nut finger-tight.
   Fig 7: Installing Solenoid Body Assembly

   Courtesy of FORD MOTOR CO.
8. Install the main control valve body, aligning the manual shift valve with the inner manual valve detent lever. Install the nuts and bolts finger-tight.
   Fig 8: Installing Main Control Valve Body

   Courtesy of FORD MOTOR CO.
9. If previously installed, remove, then reinstall, the bolt into the separator plate reinforcing plate.
   1. Remove the bolt.
   2. Install the bolt.
   Fig 9: Removing Bolt Into Separator Plate Reinforcing Plate

   Courtesy of FORD MOTOR CO.

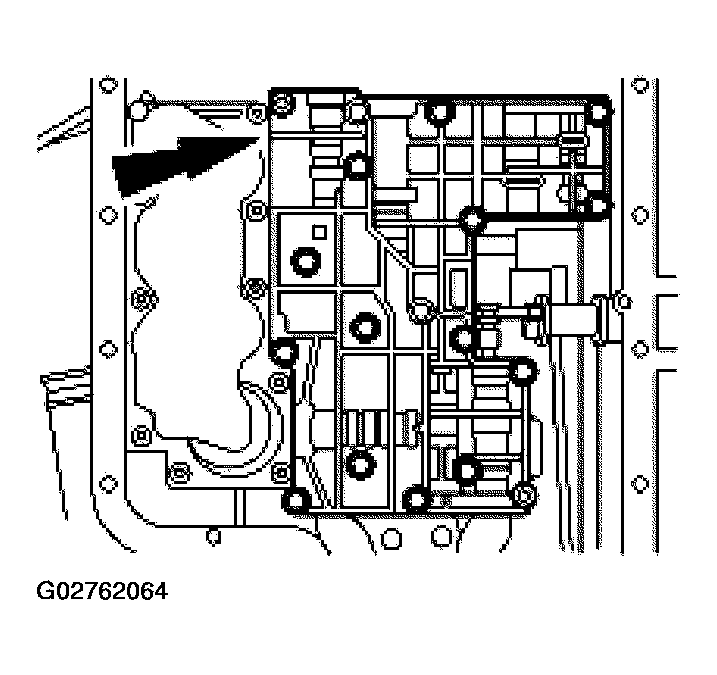

10. Install the accumulator body with the nuts and the bolts finger-tight.
    Fig 10: Installing Accumulator Body

    Courtesy of FORD MOTOR CO.

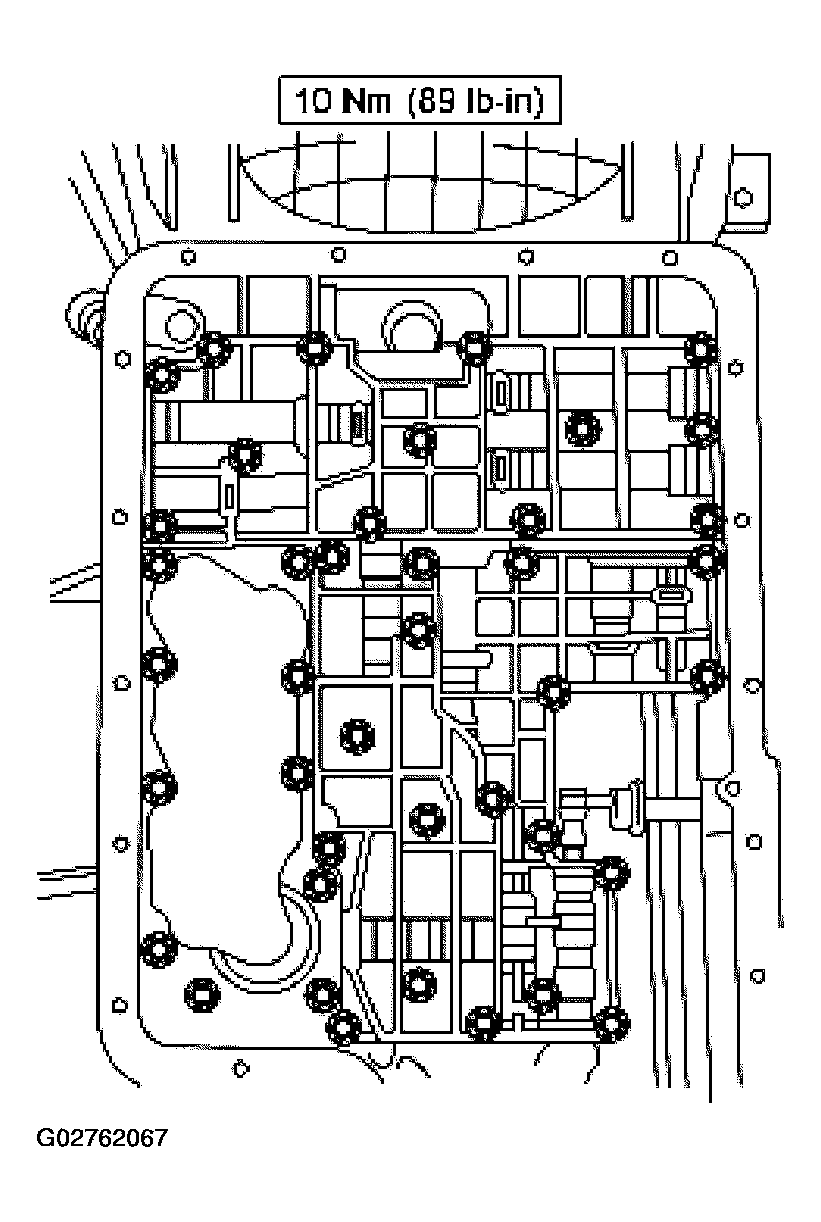

11. Tighten all accumulator body, upper and lower main control body and the solenoid body nuts and bolts.
    Fig 11: Tightening All Accumulator Body

    Courtesy of FORD MOTOR CO.
    CAUTION: Make sure that the pump bore is clean and the old filter seal has been removed.
    NOTE: Prior to installation, lightly lubricate the seal with clean automatic transmission fluid.
12. Press the fluid filter and seal assembly into the pump bore until seated.
    Fig 12: Pressing Fluid Filter And Seal Assembly

    Courtesy of FORD MOTOR CO.
    NOTE: Do not discard the gasket unless damaged. This is a reusable gasket.
    NOTE: Apply a light coat of petroleum jelly to hold the gasket to the fluid pan.

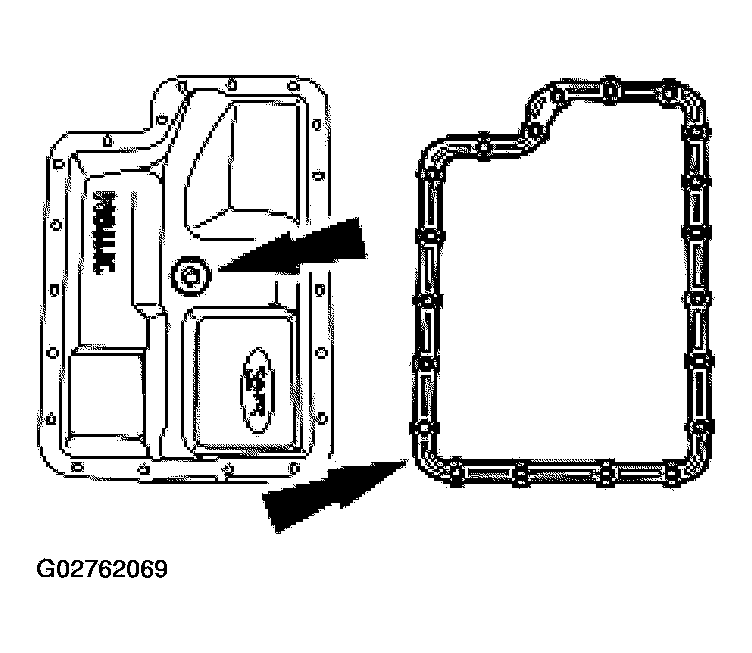

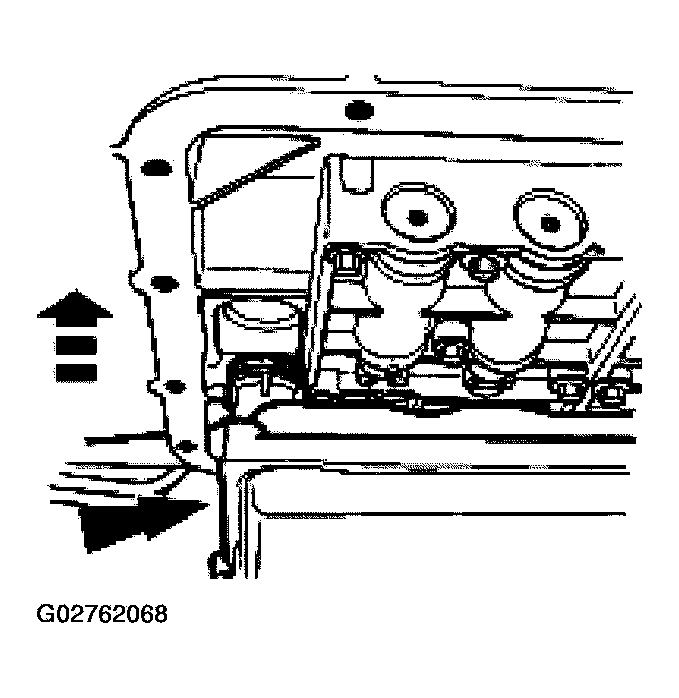

13. Position the gasket onto the clean fluid pan. Make sure the magnet is positioned over the dimple in the fluid pan.
    Fig 13: Positioning Gasket Onto Clean Fluid Pan

    Courtesy of FORD MOTOR CO.
    CAUTION: Mixing the 4x2-style and 4x4-style transmission fluid filters and transmission pan assembly components can cause transmission damage.
14. Install the correct pan with gasket for this application. Alternately tighten the bolts.
    Fig 14: Installing Correct Pan With Gasket

    Courtesy of FORD MOTOR CO.

    VEHICLES EQUIPPED WITH A FLUID PAN DRAIN PLUG

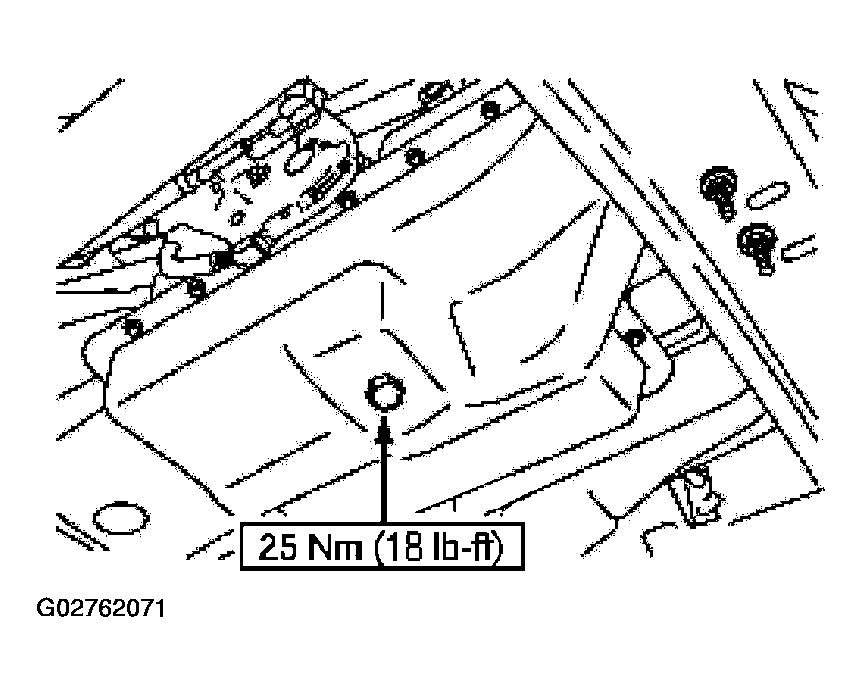

15. Install the drain plug.
    Fig 15: Installing Drain Plug

    Courtesy of FORD MOTOR CO.

    ALL VEHICLES

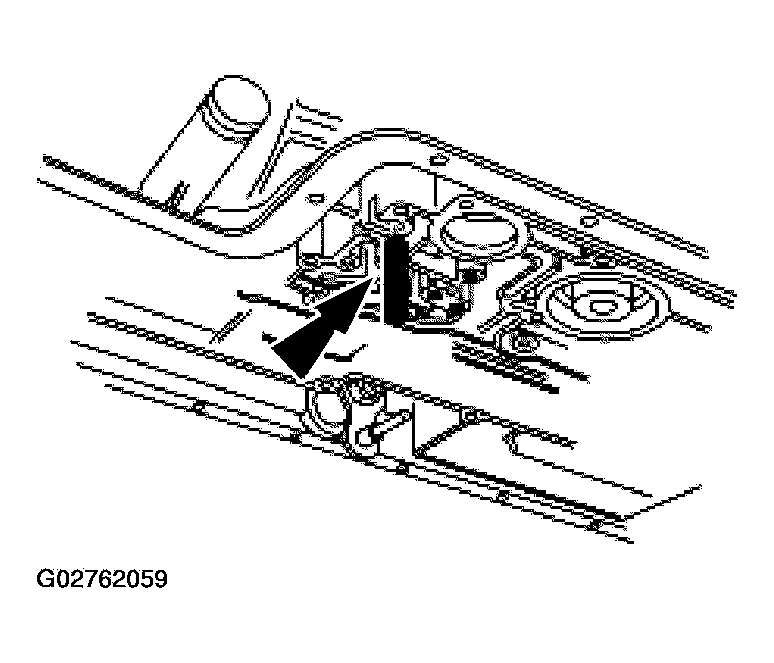

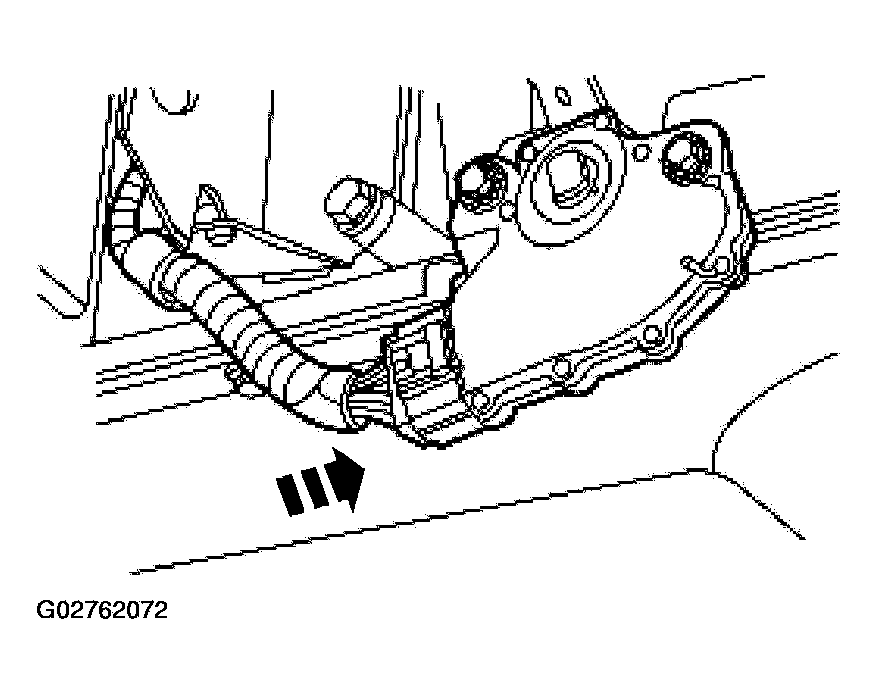

16. Connect the digital transmission range (TR) sensor connector.
    Fig 16: Connecting Digital Transmission Range (TR) Sensor Connector

    Courtesy of FORD MOTOR CO.

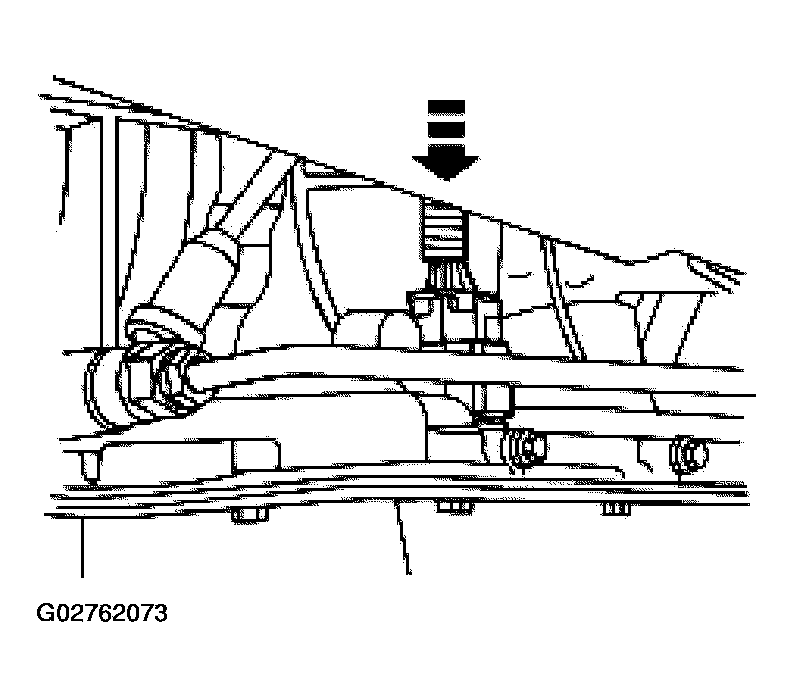

17. Connect the solenoid body connector.
    Fig 17: Connecting Solenoid Body Connector

    Courtesy of FORD MOTOR CO.
18. Remove the supports and lower the vehicle.
19. Fill the transmission to the specified level with clean automatic transmission fluid. For additional information, refer to the Fluid Capacity chart in the General Specifications  portion of this article.
