Extension Housing Seal & Bushing: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the driveshaft. For additional information, refer to the DRIVESHAFT .
Using the special tools, remove the extension housing seal.

Fig 1: Removing Driveshaft
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage any machined surfaces. The new seal may leak.

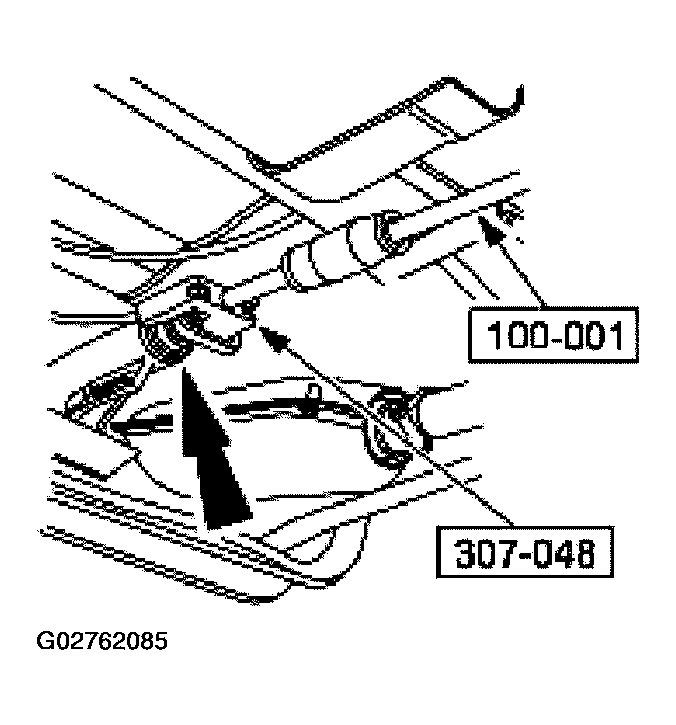

Fig 2: Removing Extension Housing Bushing

Courtesy of FORD MOTOR CO.

Using the special tool, remove the extension housing bushing.
