Digital Transmission Range (Tr) Sensor: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the digital TR sensor.
    1. Install the sensor.
    2. Loosely install the bolts.

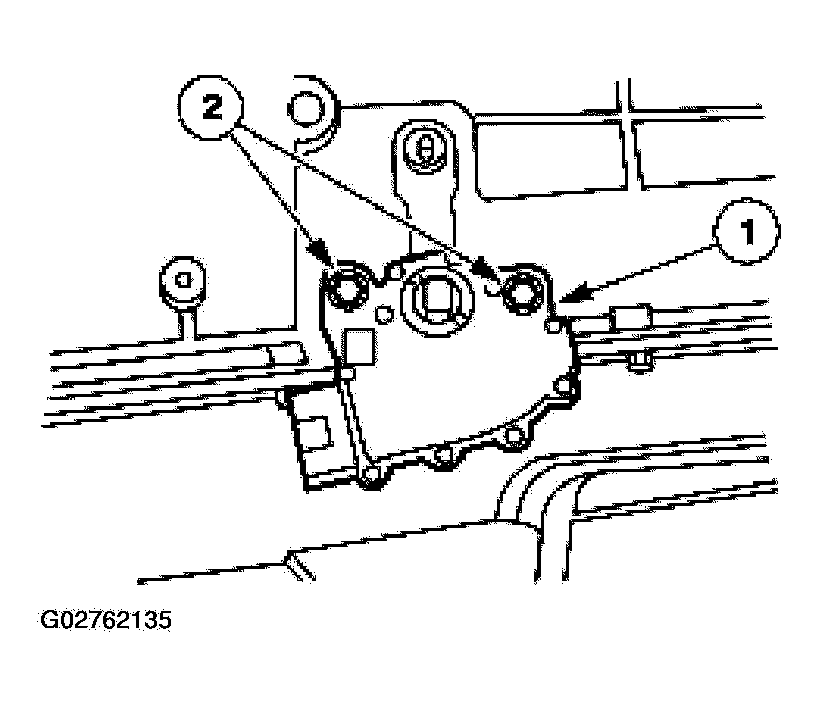

    Fig 1: Installing Digital TR Sensor
    G02762135Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure that the manual control lever is in the neutral position.

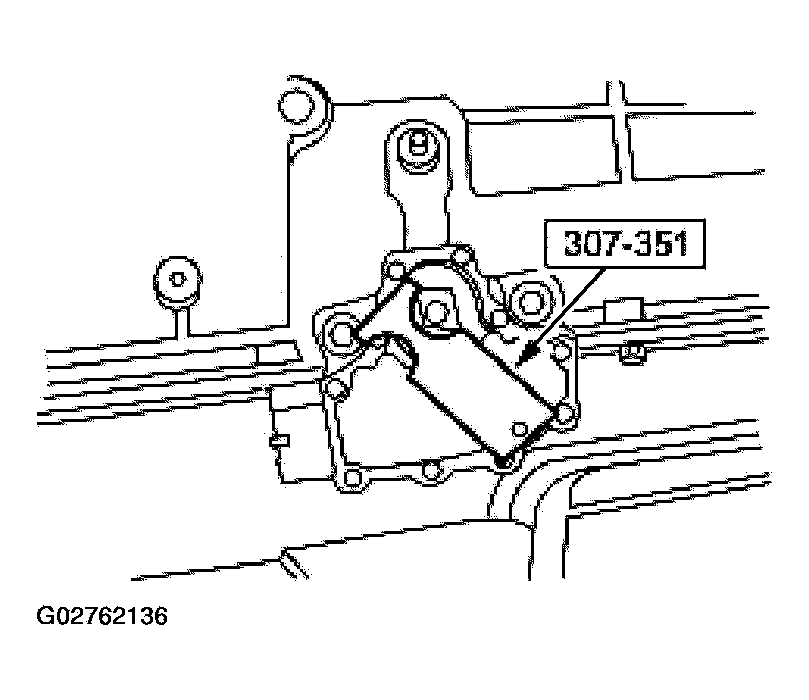

    Fig 2: Aligning Digital TR Sensor
    G02762136Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor. The tool is designed to fit snug.
  3. Tighten the bolts.

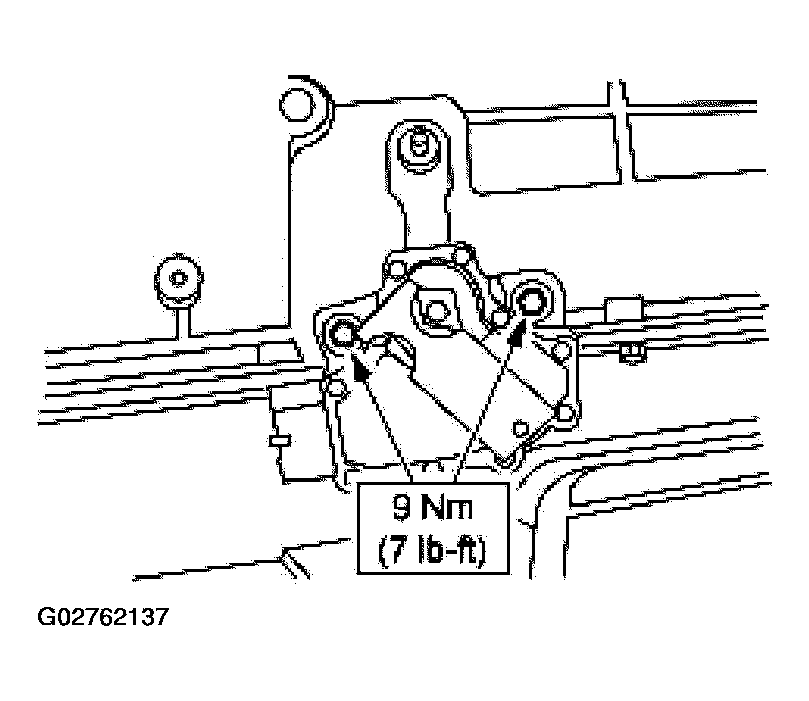

    Fig 3: Tightening Bolts
    G02762137Courtesy of FORD MOTOR CO.
  4. Reconnect the shift cable at the manual control lever.
    Fig 4: Connecting Shift Cable At Manual Control Lever
    G02762138Courtesy of FORD MOTOR CO.
  5. Reconnect the connector.

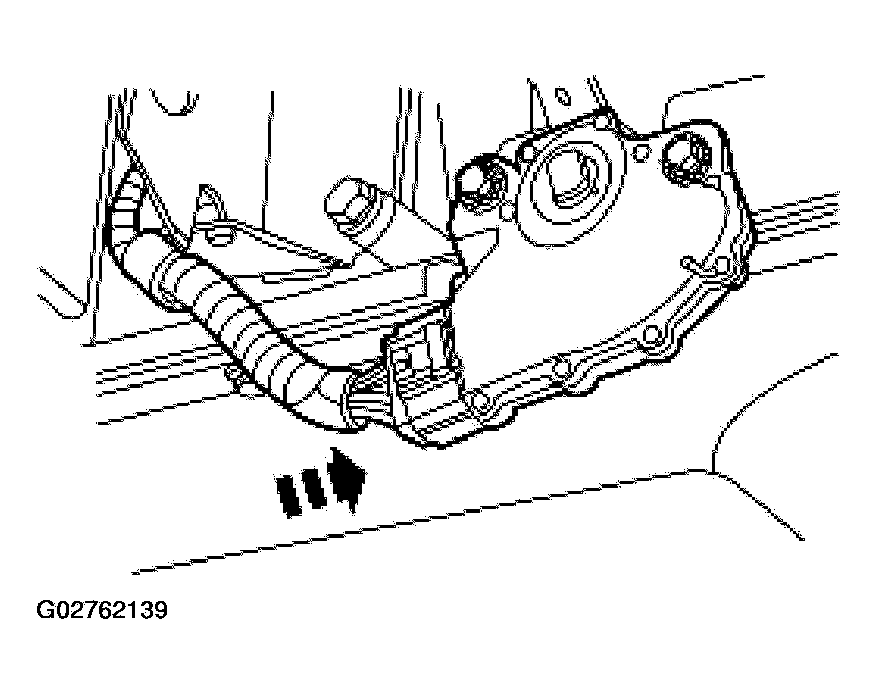

    Fig 5: Connecting Connector
    G02762139Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
