Transmission Range (Tr) Sensor Adjustment: Adjustment

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the vehicle on a hoist. Place in NEUTRAL. For additional information, refer to JACKING & LIFTING .

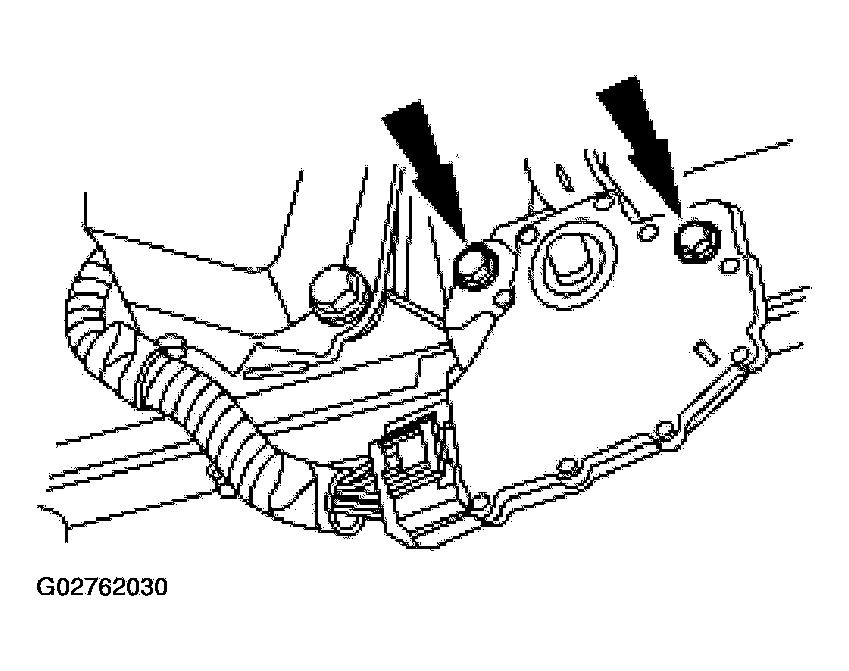

  2. Loosen the digital TR sensor bolts.
    Fig 1: Positioning Vehicle On A Hoist
    G02762030Courtesy of FORD MOTOR CO.
    3. NOTE: Make sure that the manual control lever is in the NEUTRAL position.

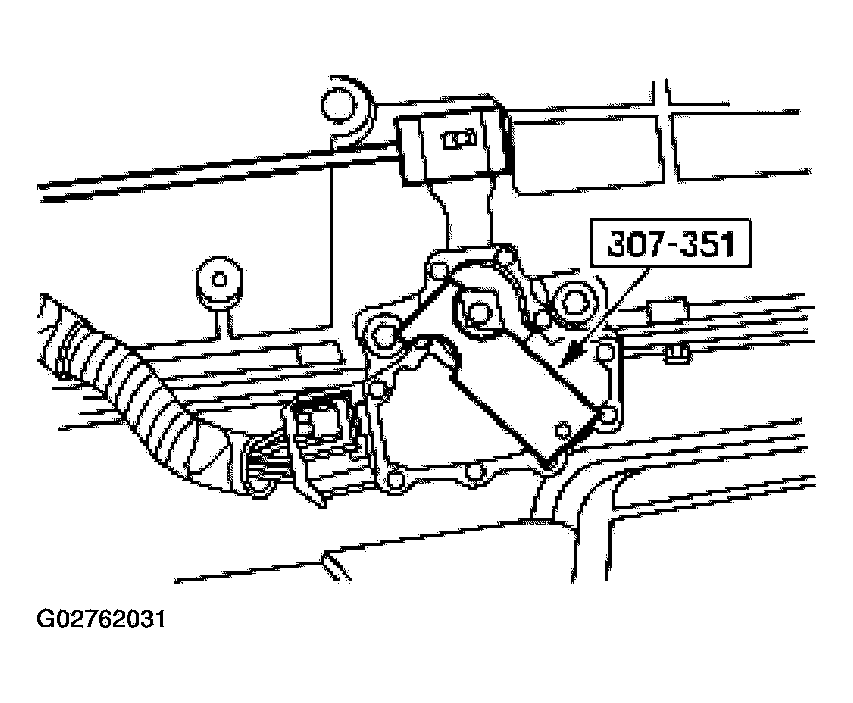

    Fig 2: Aligning Digital TR Sensor
    G02762031Courtesy of FORD MOTOR CO.
  3. Using the special tool, align the digital TR sensor.
  4. Tighten the bolts.

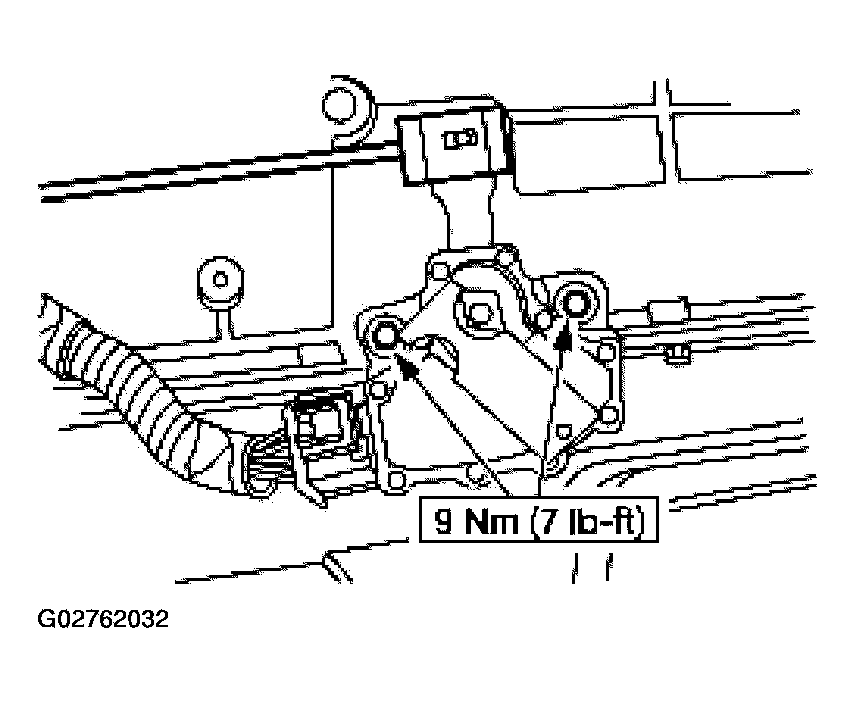

    Fig 3: Tightening Bolts
    G02762032Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
