Reverse Planet Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Individual parts of the planet assemblies are not repairable.
  1. Remove the No. 11 rear reverse planet thrust washer.

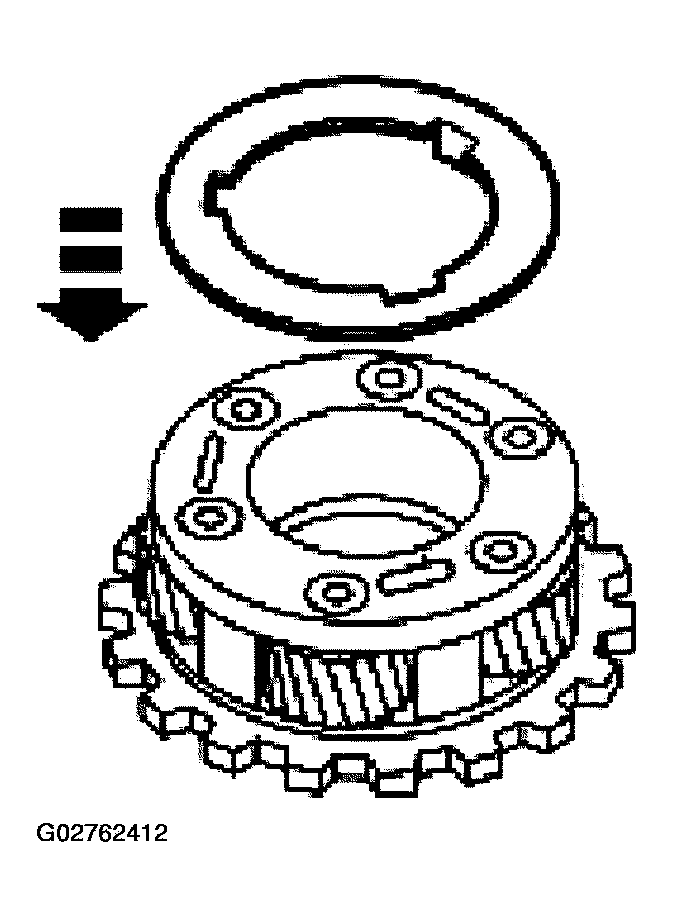

    Fig 1: Removing Rear Reverse Planet Thrust Washer
    G02762412Courtesy of FORD MOTOR CO.
  2. Remove the No. 10B front reverse planet thrust washer.
    • The pins and shafts in the planet assemblies should be checked for loose fit/damage. Use a new planet assembly if either condition exists.
    • Inspect the pinion gears for damaged or excessively worn teeth.
    • Check for free rotation of the pinion gears.
    • Check for damage in the overdrive planet assembly.

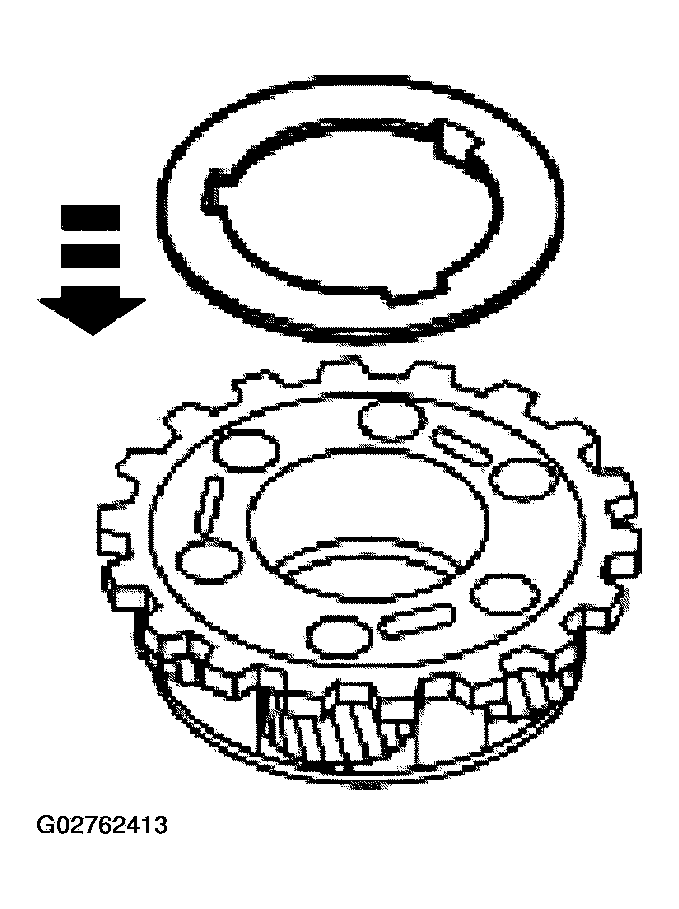

    Fig 2: Removing Front Reverse Planet Thrust Washer
    G02762413Courtesy of FORD MOTOR CO.
