Section 599 (Automatic Transmission - 4R100)
>>
Disassembly & Assembly Of Subassemblies
>>
Pump Assembly
>>
Pump Assembly, Disassembled View
Pump Assembly, Disassembled View
WARNING:
This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

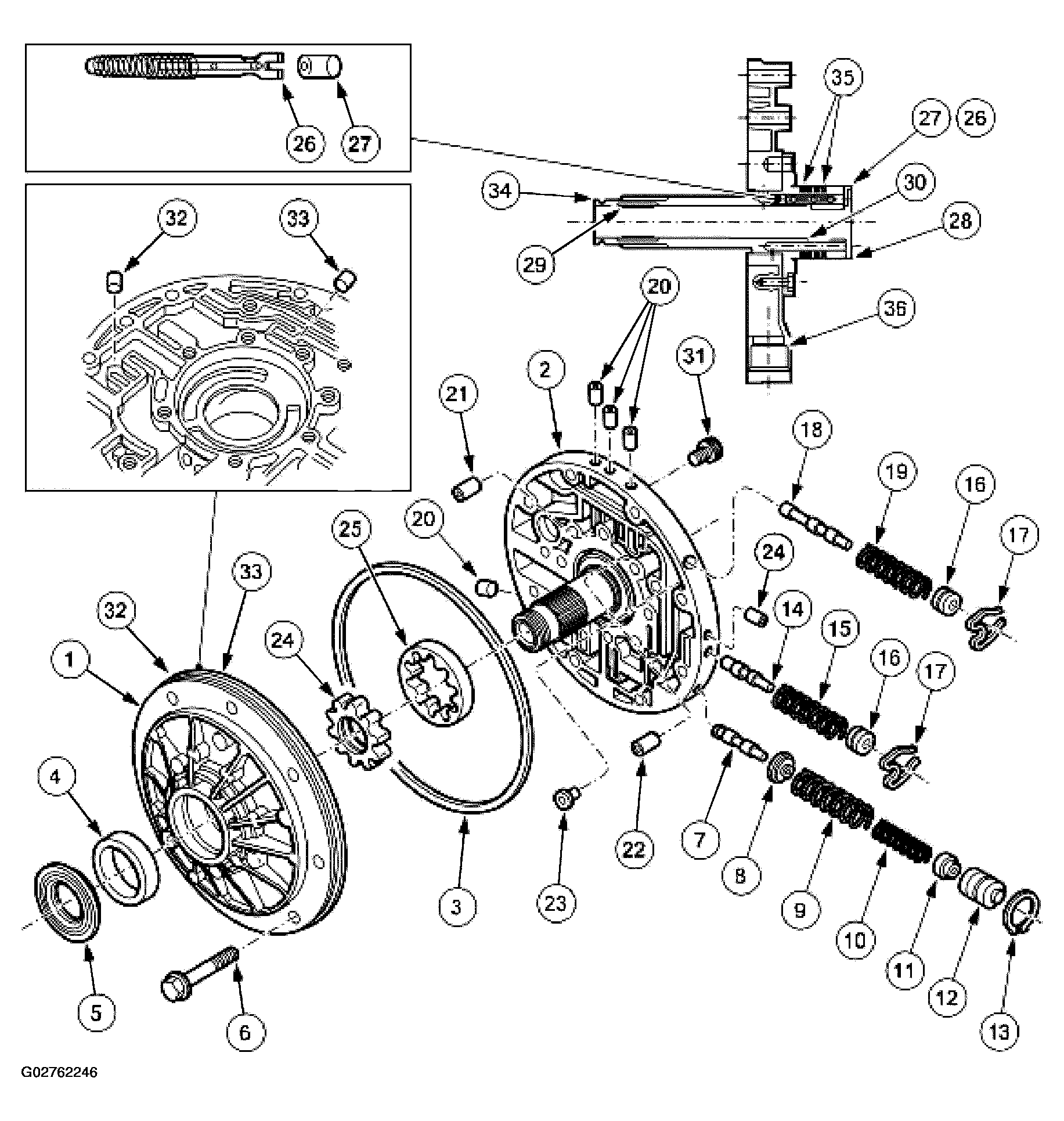

Fig 1: Disassembled View Pump Assembly
Courtesy of FORD MOTOR CO.

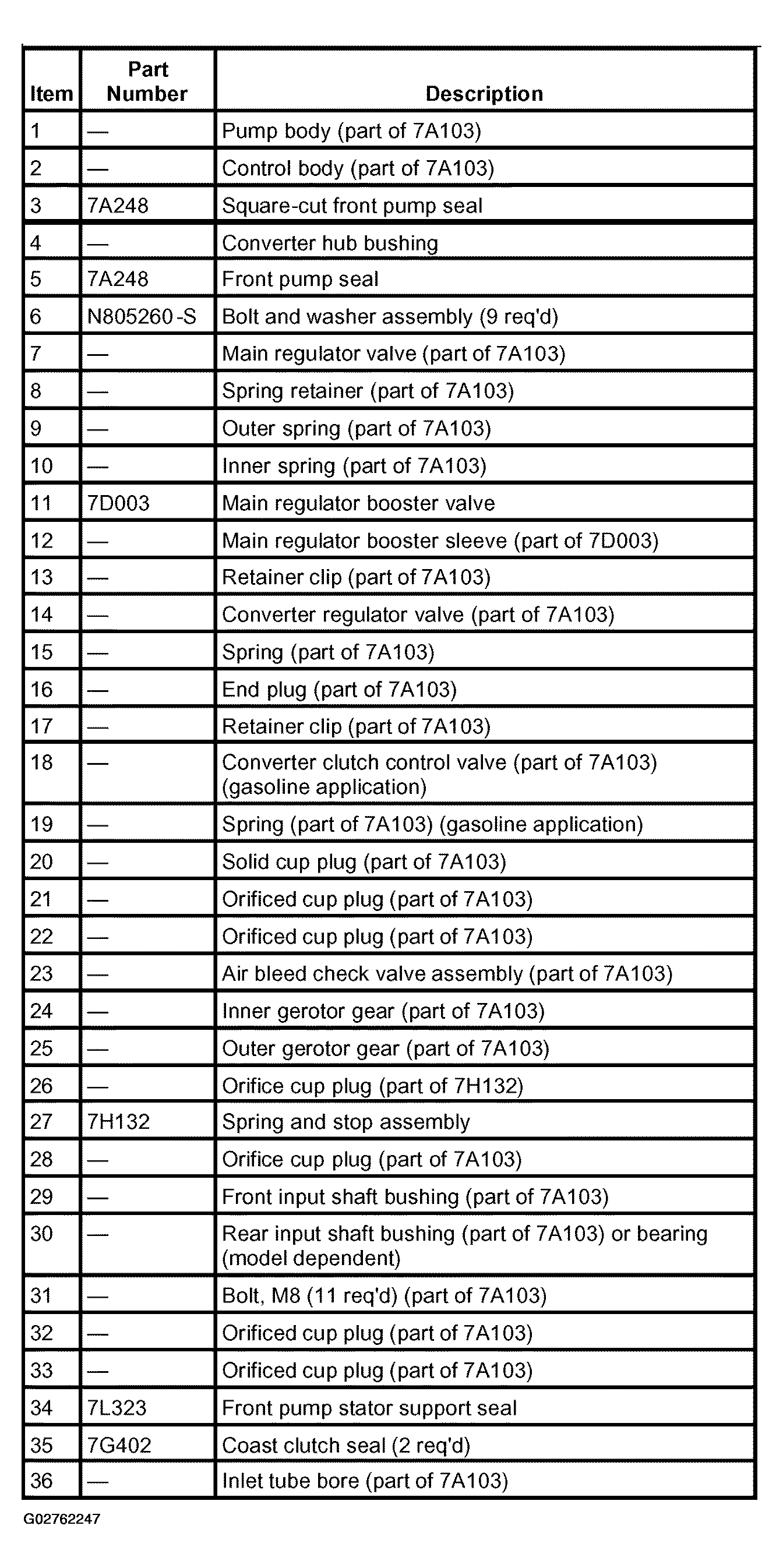

Fig 2: Items Description (Items 1-36)
Courtesy of FORD MOTOR CO.
