Upper, Lower, Accumulator & Solenoid Bodies, Disassembled View

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

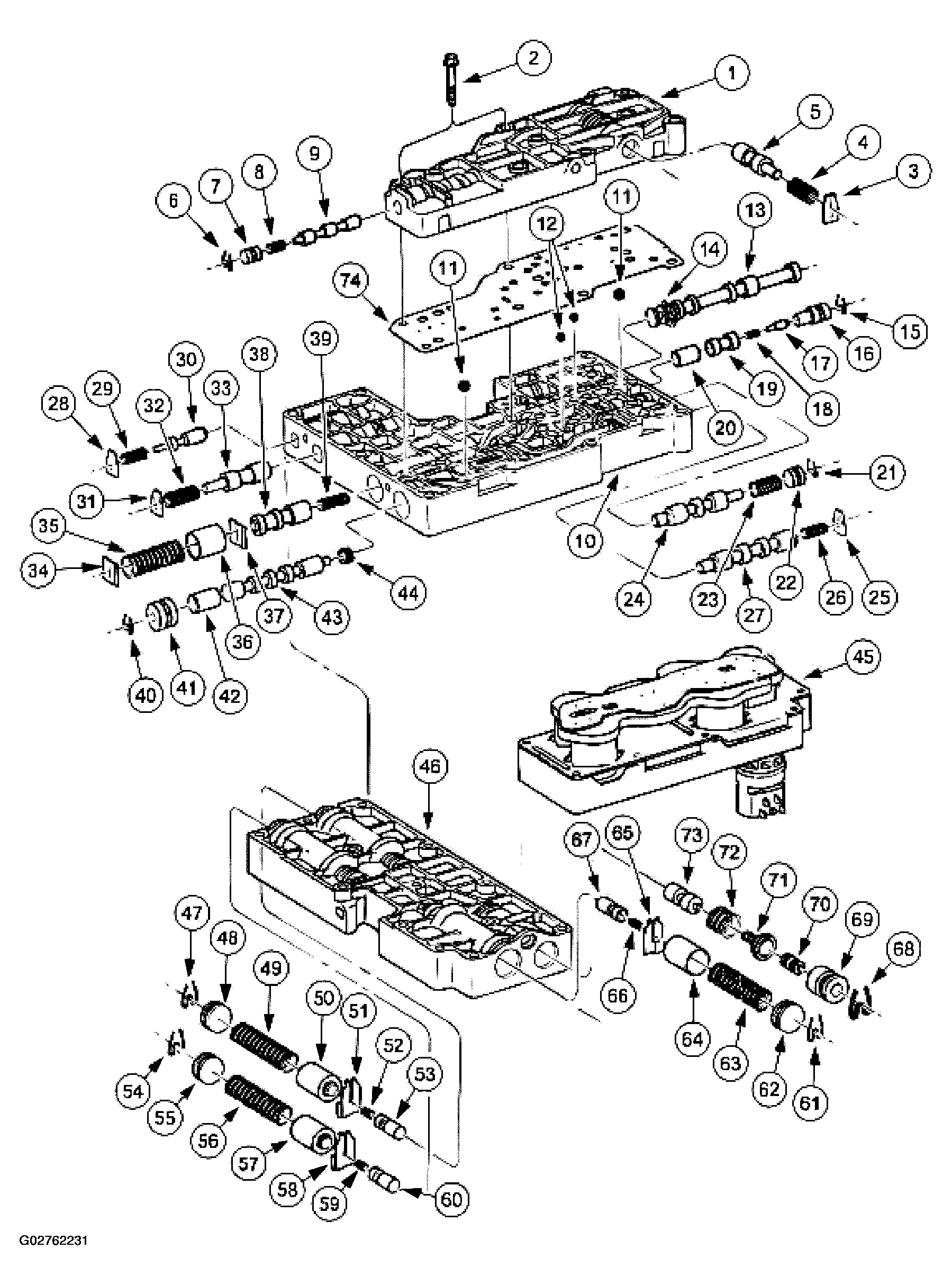

Fig 1: Disassembled View Upper, Lower, Accumulator And Solenoid Bodies
G02762231Courtesy of FORD MOTOR CO.

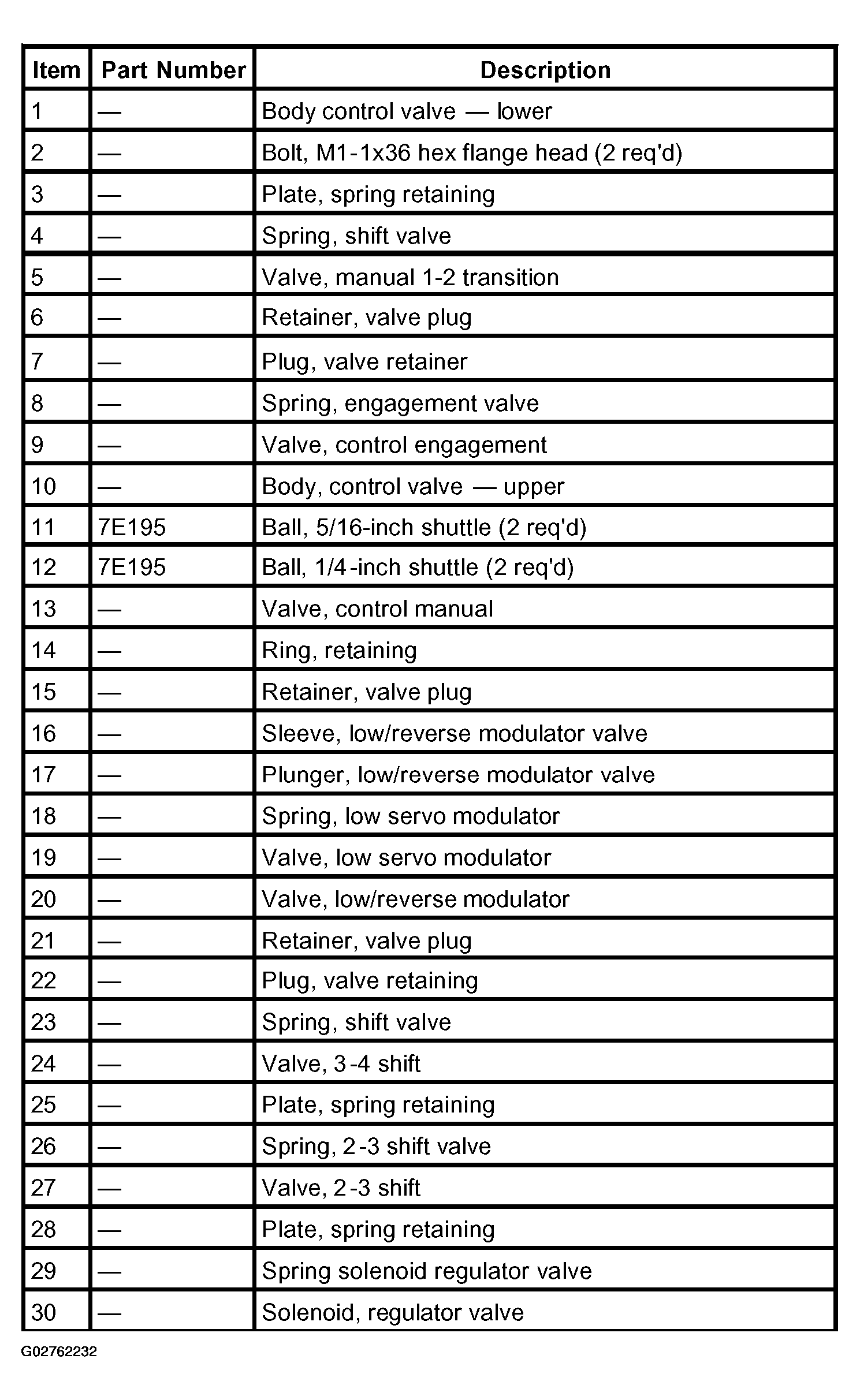

Fig 2: Item Description (Items 1-30)
G02762232Courtesy of FORD MOTOR CO.

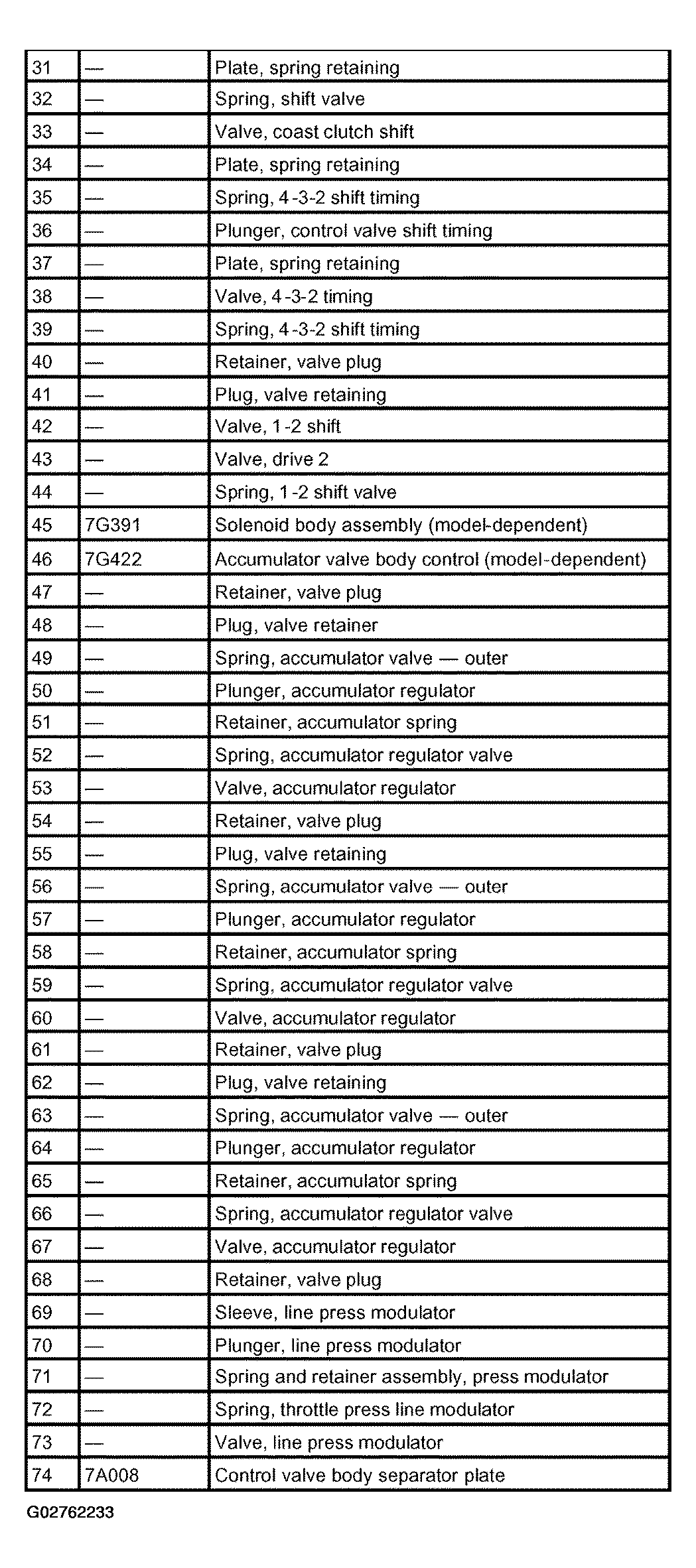

Fig 3: Item Description (Items 31-74)
G02762233Courtesy of FORD MOTOR CO.
