Main Control Valve Body-Accumulator Body Check: Disassembly

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the control valves and springs. Inspect the valves for nicks and burrs. If the valves are damaged the accumulator body will need to be replaced.

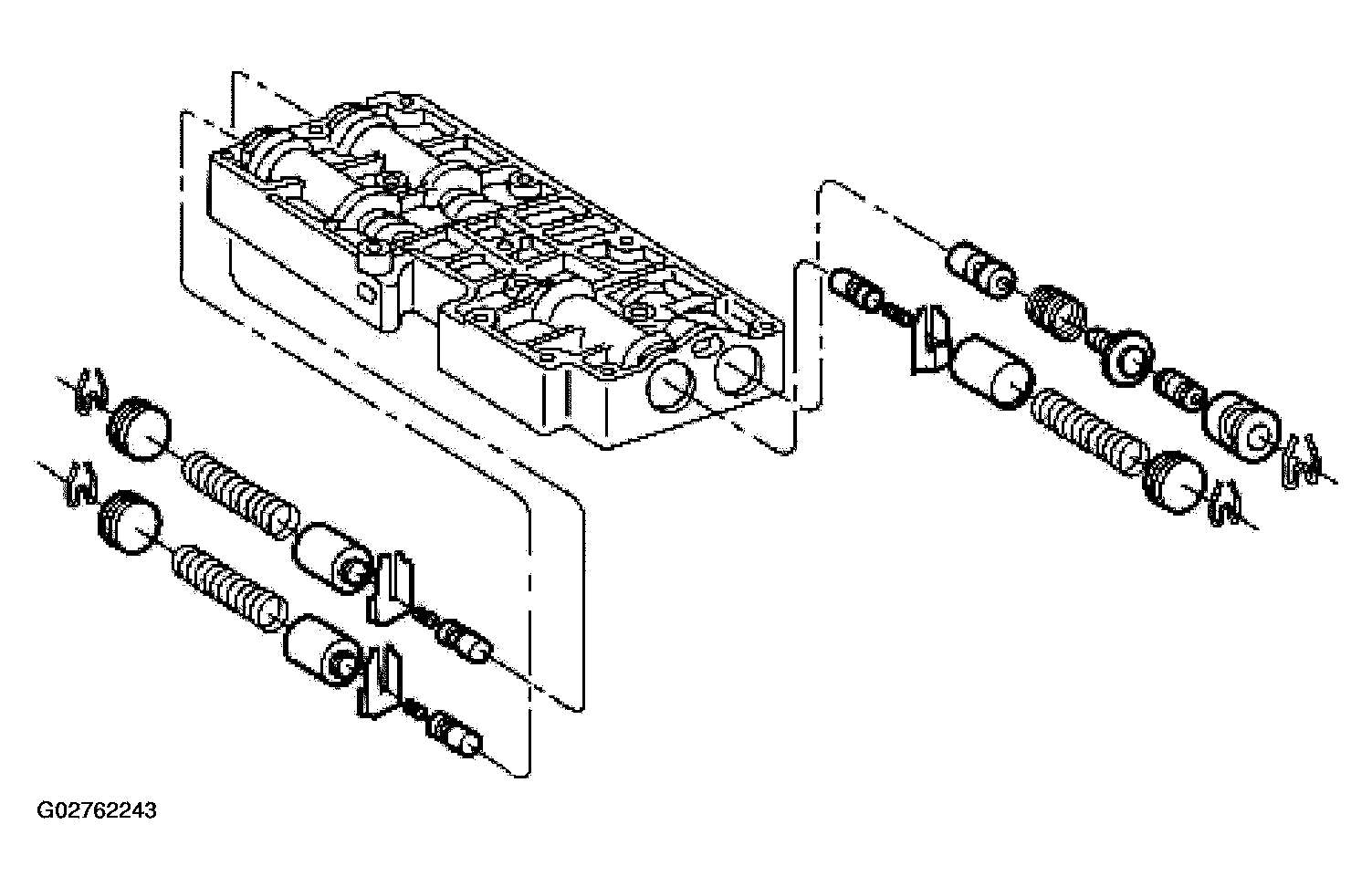

    Fig 1: Inspecting Valves For Nicks And Burrs
    G02762243Courtesy of FORD MOTOR CO.
  2. Inspect all valves, valve sleeves, valve bores for scores, nick or burrs. Check all fluid passages for obstructions. Inspect all mating surfaces for burrs and scores.
  3. Inspect all springs for distortion. Check all valves and plungers for free movement in their respective bores. All the components when dry must fall from their own weight in their respective bores.
