Front Case Bushings: Assembly

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The front case bushing has three lube grooves. The rear case bushing has one lube groove.
    Fig 1: Installing Front Case Bushing Onto Special Tool
    G02762273Courtesy of FORD MOTOR CO.
  1. Install the front case bushing onto the special tool.
  2. Place the special tool with the front case bushing through the case and into the rear case bushing.

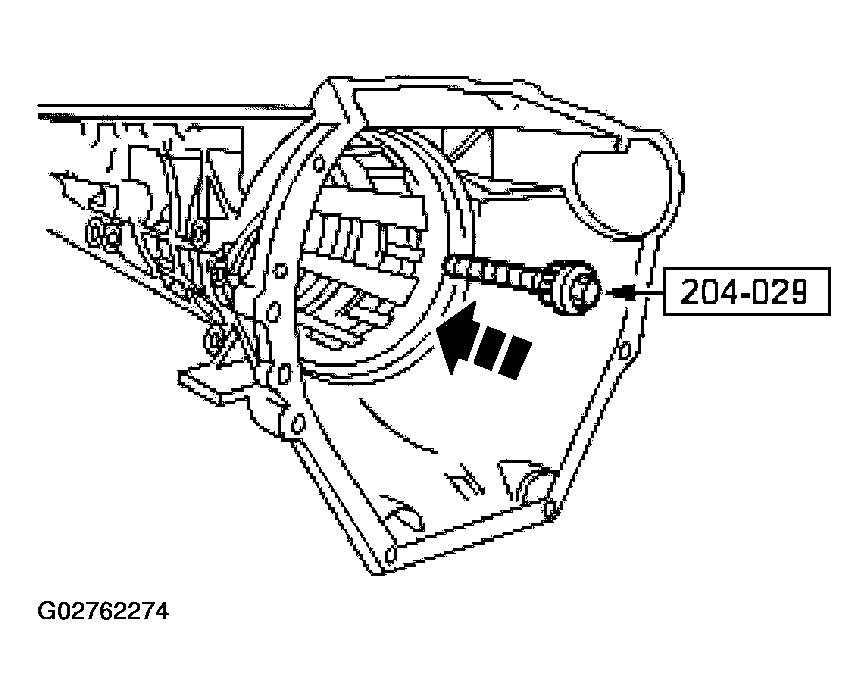

    Fig 2: Placing Special Tool With Front Case Bushing
    G02762274Courtesy of FORD MOTOR CO.
    3. CAUTION: Make sure the bushing and tool are centered in the bore.

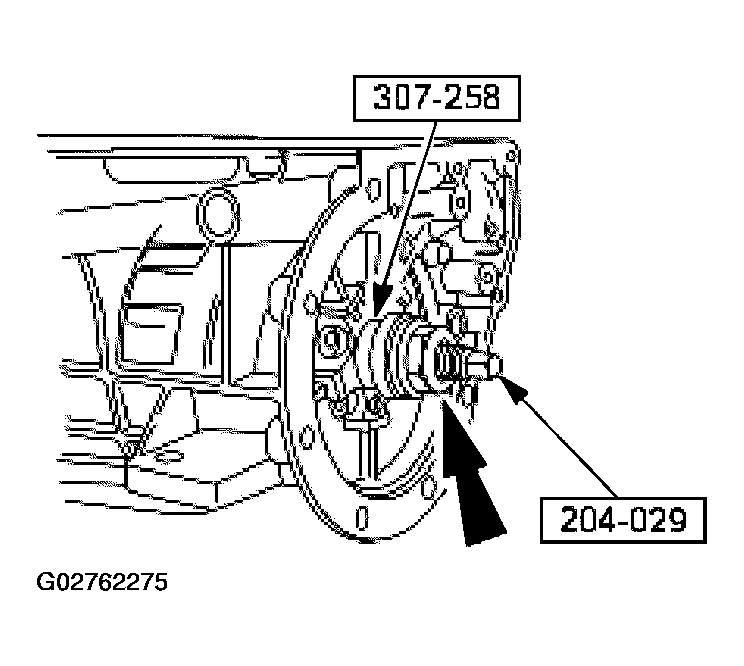

    Fig 3: Installing Washer And Nut Hand-Tight
    G02762275Courtesy of FORD MOTOR CO.
  3. Install the special tool then, install the washer and the nut hand-tight.
  4. Hold the special tool while turning the nut until the front case bushing is fully seated. Remove the tools.

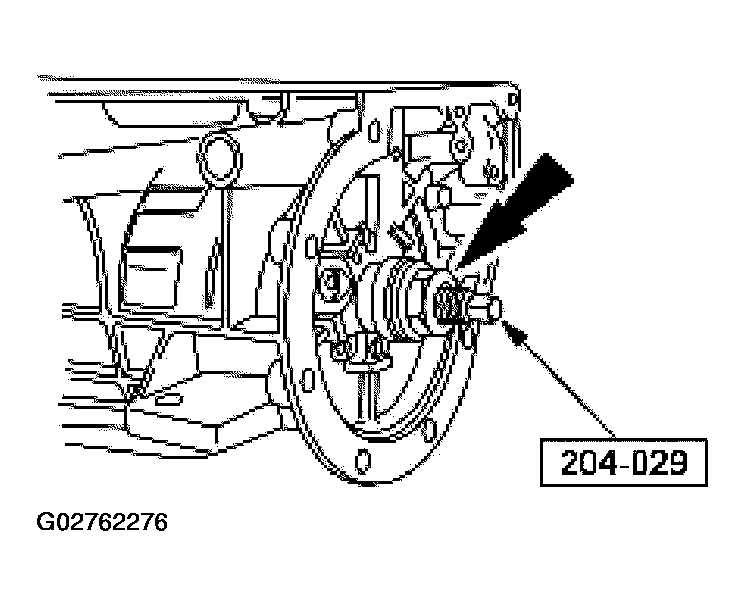

    Fig 4: Holding Special Tool While Turning Nut Until Front Case Bushing
    G02762276Courtesy of FORD MOTOR CO.
