Forward Planet Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Individual parts of the planet assemblies are not repairable.
  1. Remove the No. 9B forward clutch thrust bearing.

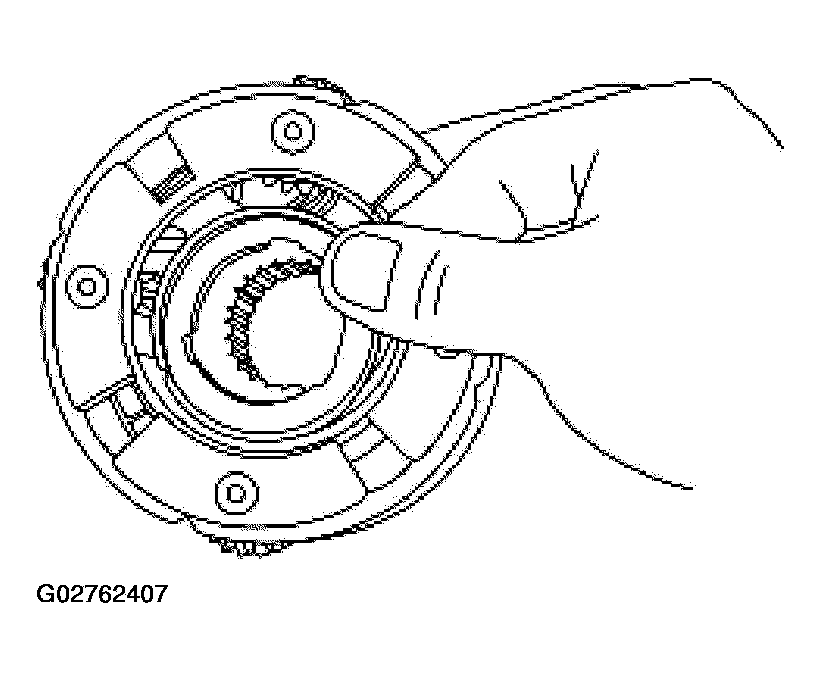

    Fig 1: Removing Forward Clutch Thrust Bearing
    G02762407Courtesy of FORD MOTOR CO.
  2. Remove the No. 10A forward planet assembly thrust bearing.
    • The pins and shafts in the plant assemblies should be checked for loose fit/damage. Use a new planet assembly if either condition exist.
    • Inspect the pinion gears for damaged or excessively worn teeth.
    • Check for free rotation of the pinion gears.
    • Check for damage in the overdrive planet assembly.

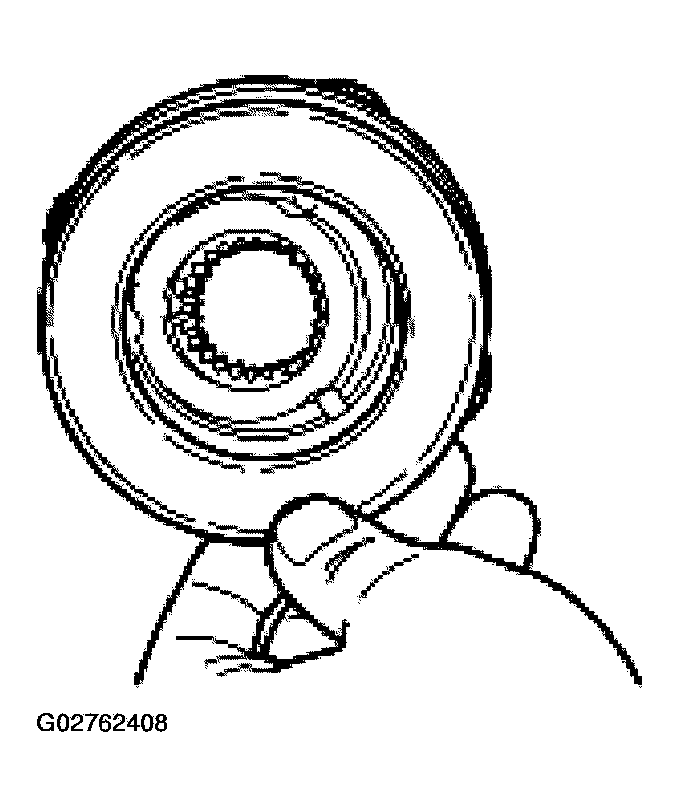

    Fig 2: Removing Forward Planet Assembly Thrust Bearing
    G02762408Courtesy of FORD MOTOR CO.
