Section 599 (Automatic Transmission - 4R100)
>>
Disassembly & Assembly Of Subassemblies
>>
Forward Clutch Assembly
>>
Forward Clutch Assembly, Disassembled View
Forward Clutch Assembly, Disassembled View
WARNING:
This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

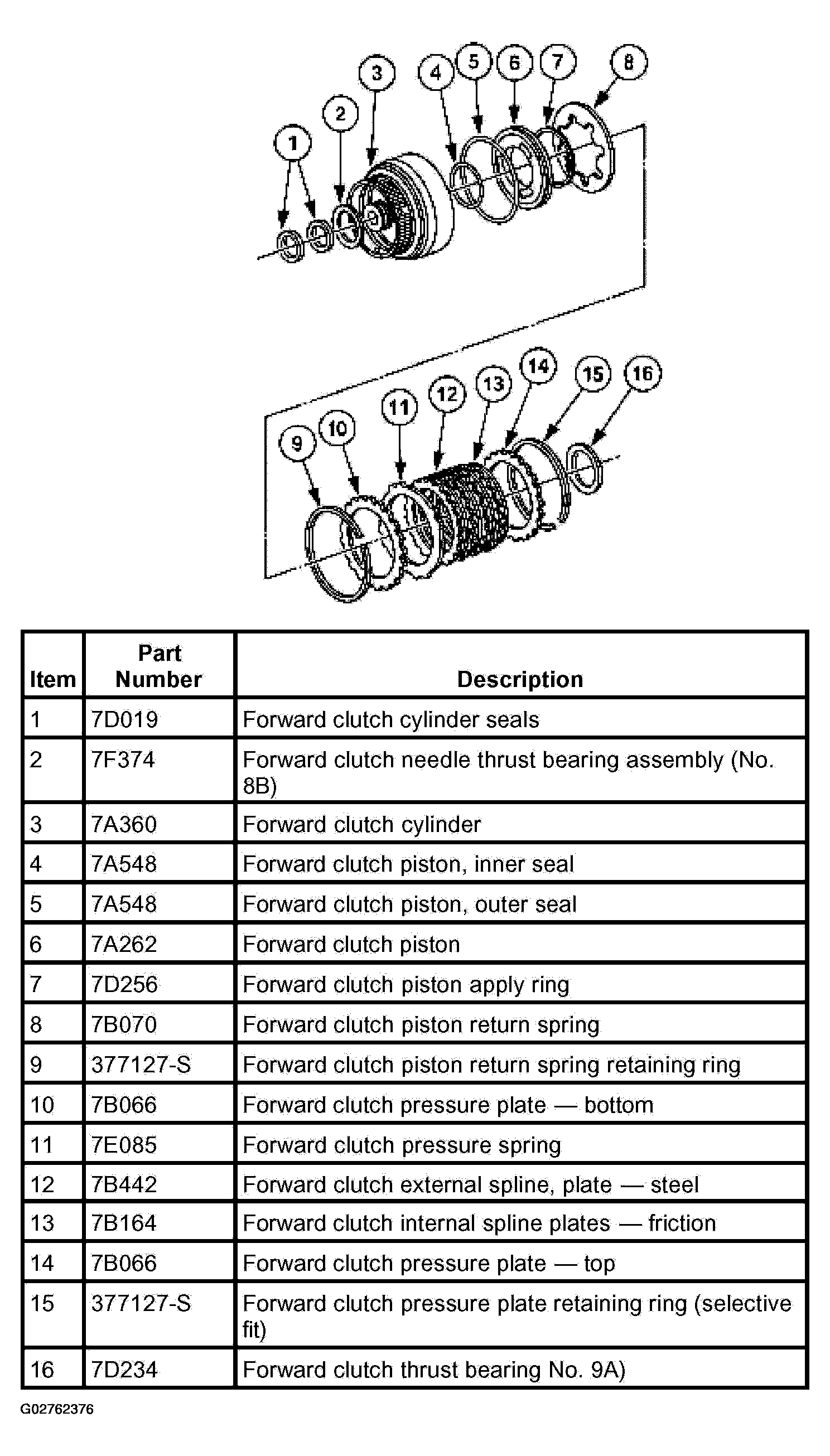

Fig 1: Disassembled View Forward Clutch Assembly
Courtesy of FORD MOTOR CO.
