Fluid Level Check

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the transmission in (P) PARK, the engine at idle, foot pressed on the brake, move the range selector lever through each gear and allow engagement of each gear. Place the range selector lever in the (P) PARK position.
  2. Wipe the fluid level indicator cap and remove the indicator.
  3. Wipe the indicator with a clean cloth.
  4. Install the indicator back in the filler tube until it is fully seated, then remove the indicator. The fluid level should be within the normal operating temperature range.

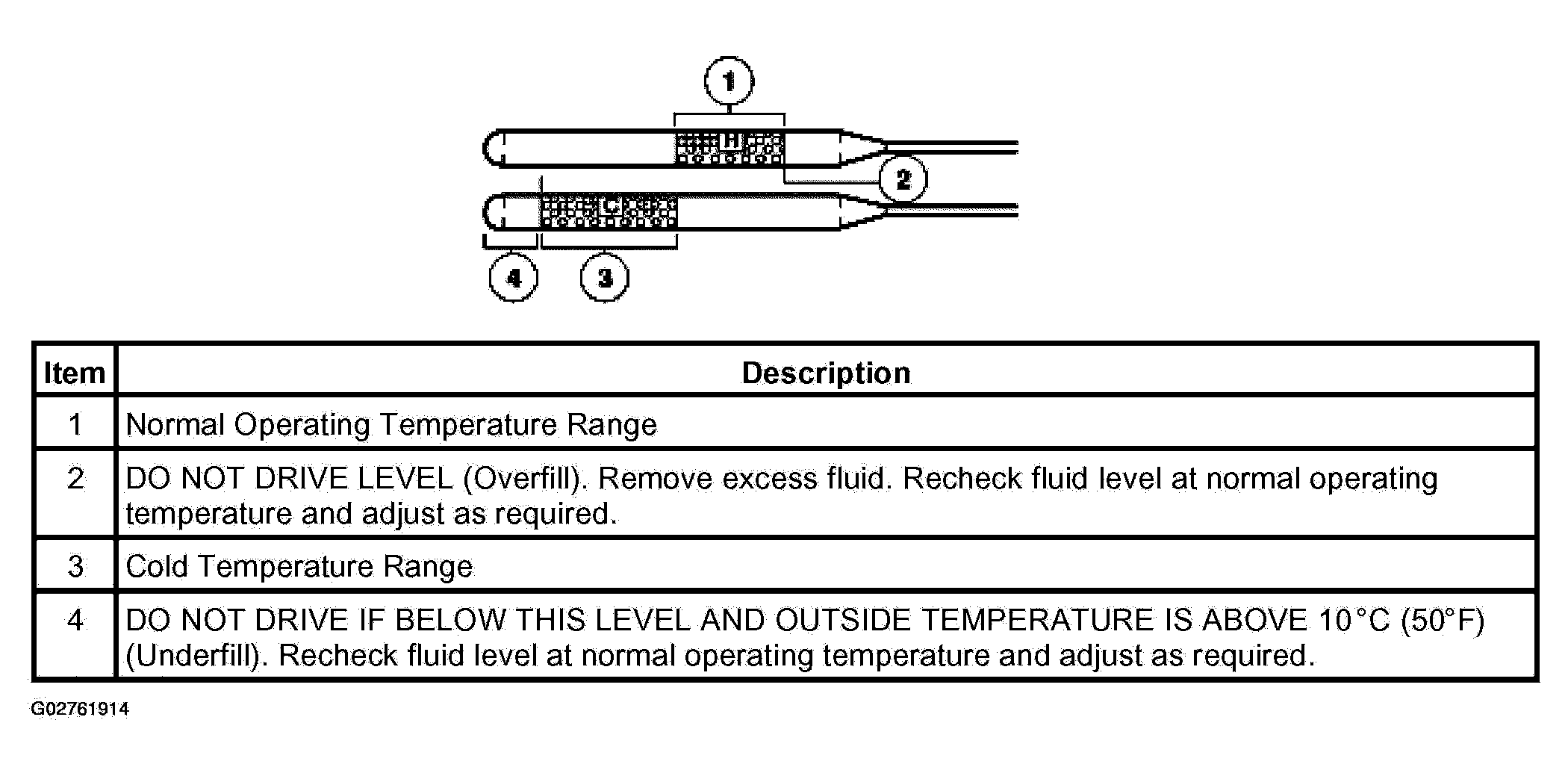

    Fig 1: Identifying Fluid Level Check
    G02761914Courtesy of FORD MOTOR CO.
