Pinpoint Test F: Turbine Shaft Speed (TSS) & Output Shaft Speed (OSS) Sensors

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Output Shaft Speed (OSS) Sensor Connector illustration preceding these pinpoint tests.

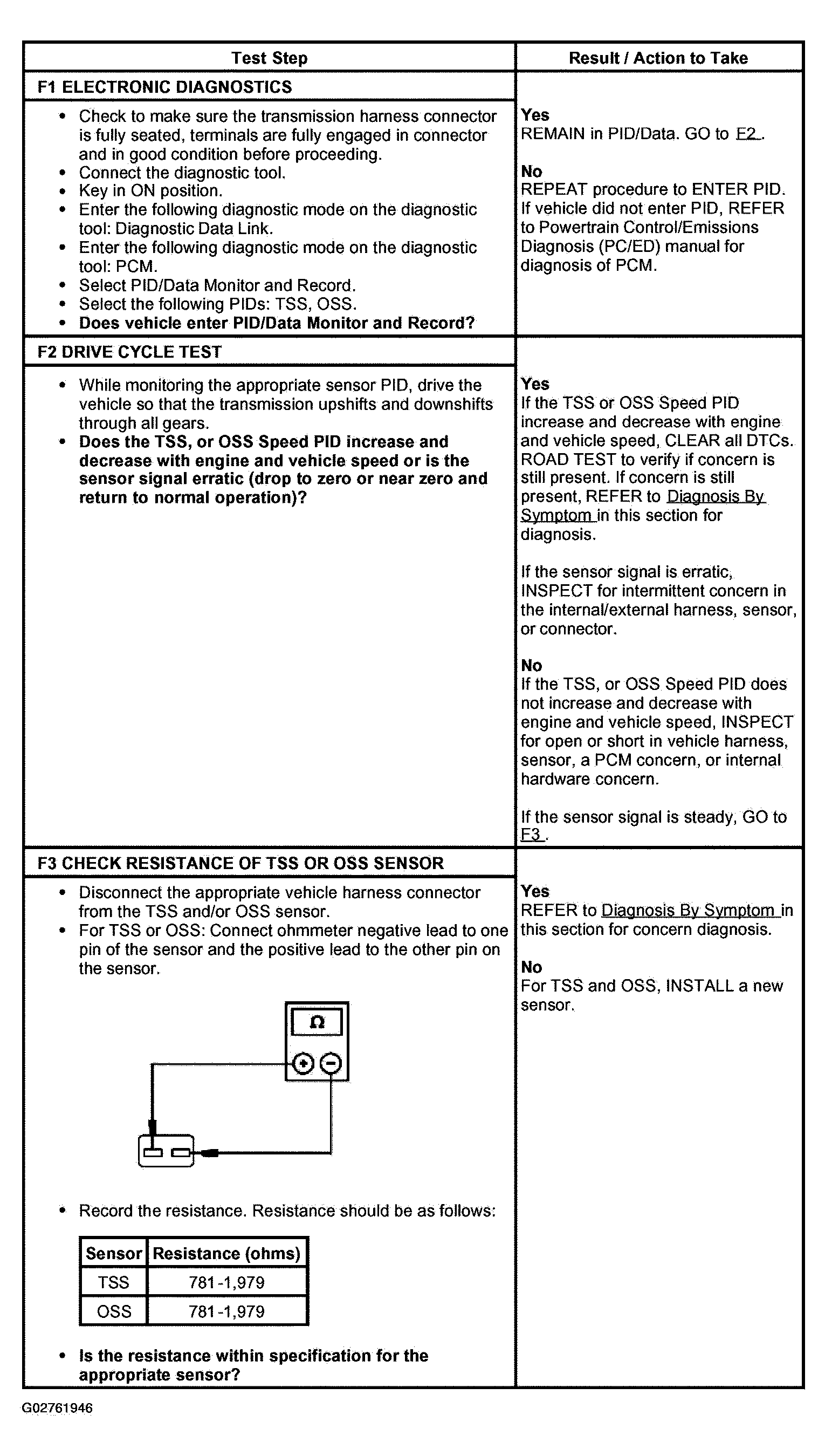

Fig 1: Pinpoint Test F: Turbine Shaft Speed (TSS) And Output Shaft Speed (OSS) Sensors (Step F1 To F3)
G02761946Courtesy of FORD MOTOR CO.
