Pinpoint Test D: Digital Transmission Range (TR) Sensor

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration preceding these pinpoint tests.

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis Chart preceding these pinpoint tests.

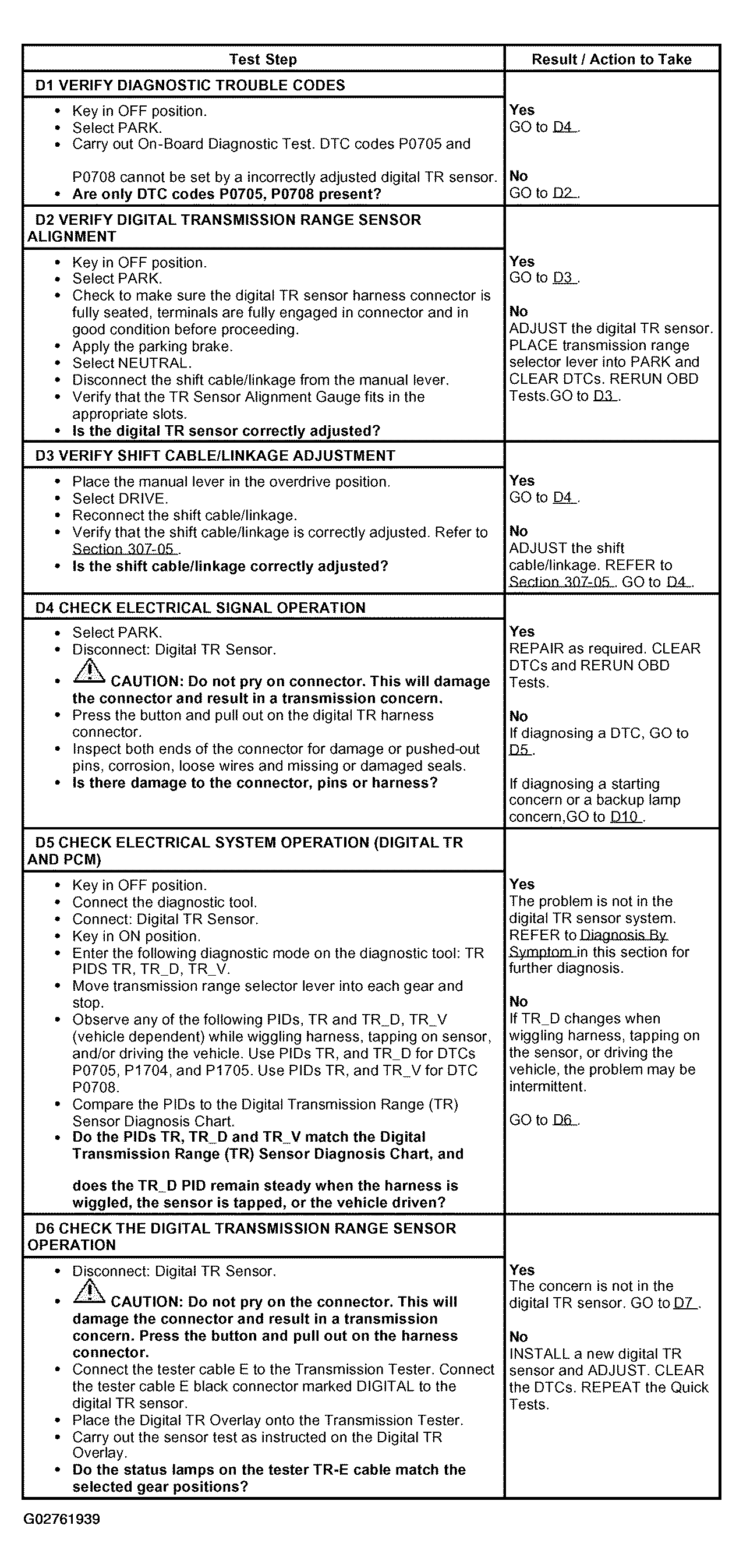

Fig 1: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D1 To D6)

Courtesy of FORD MOTOR CO.

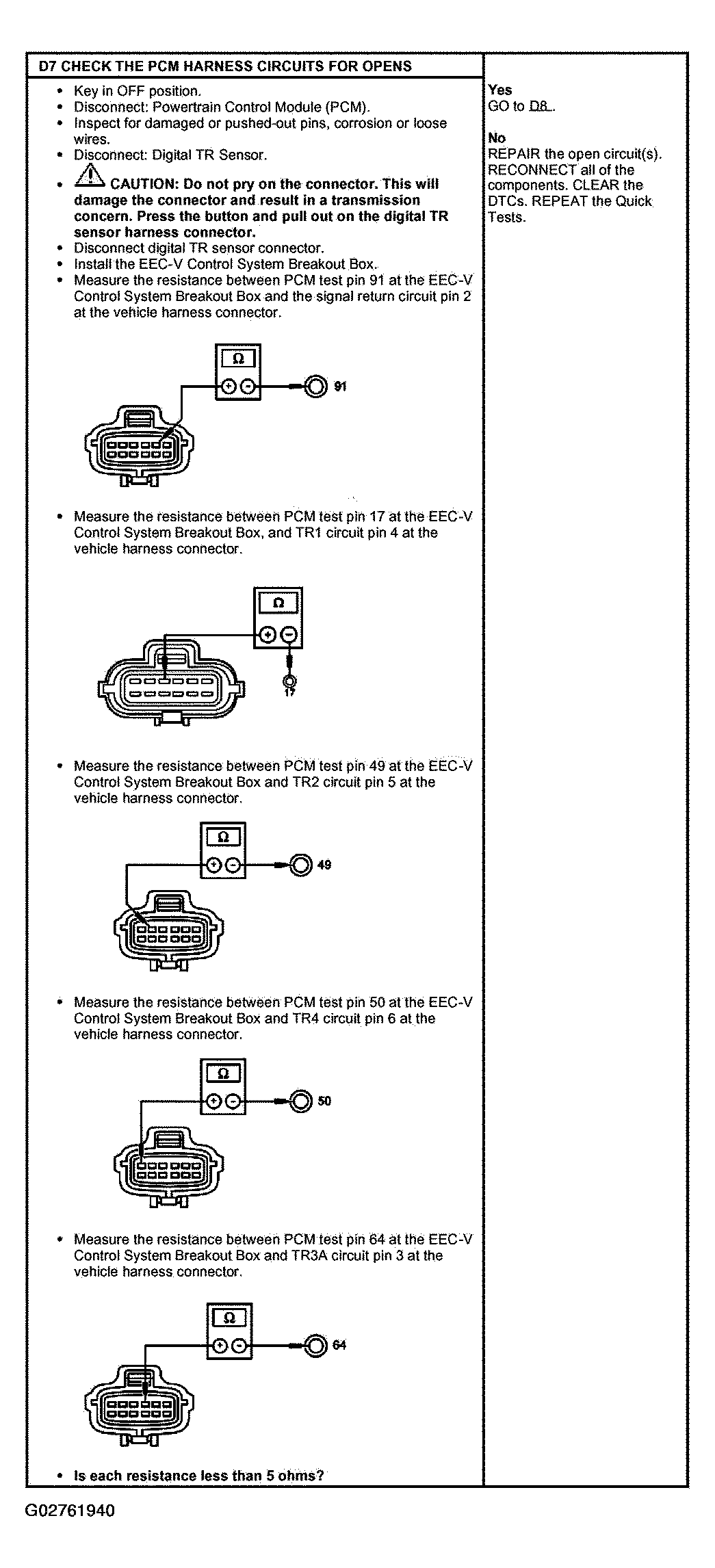

Fig 2: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D7)

Courtesy of FORD MOTOR CO.

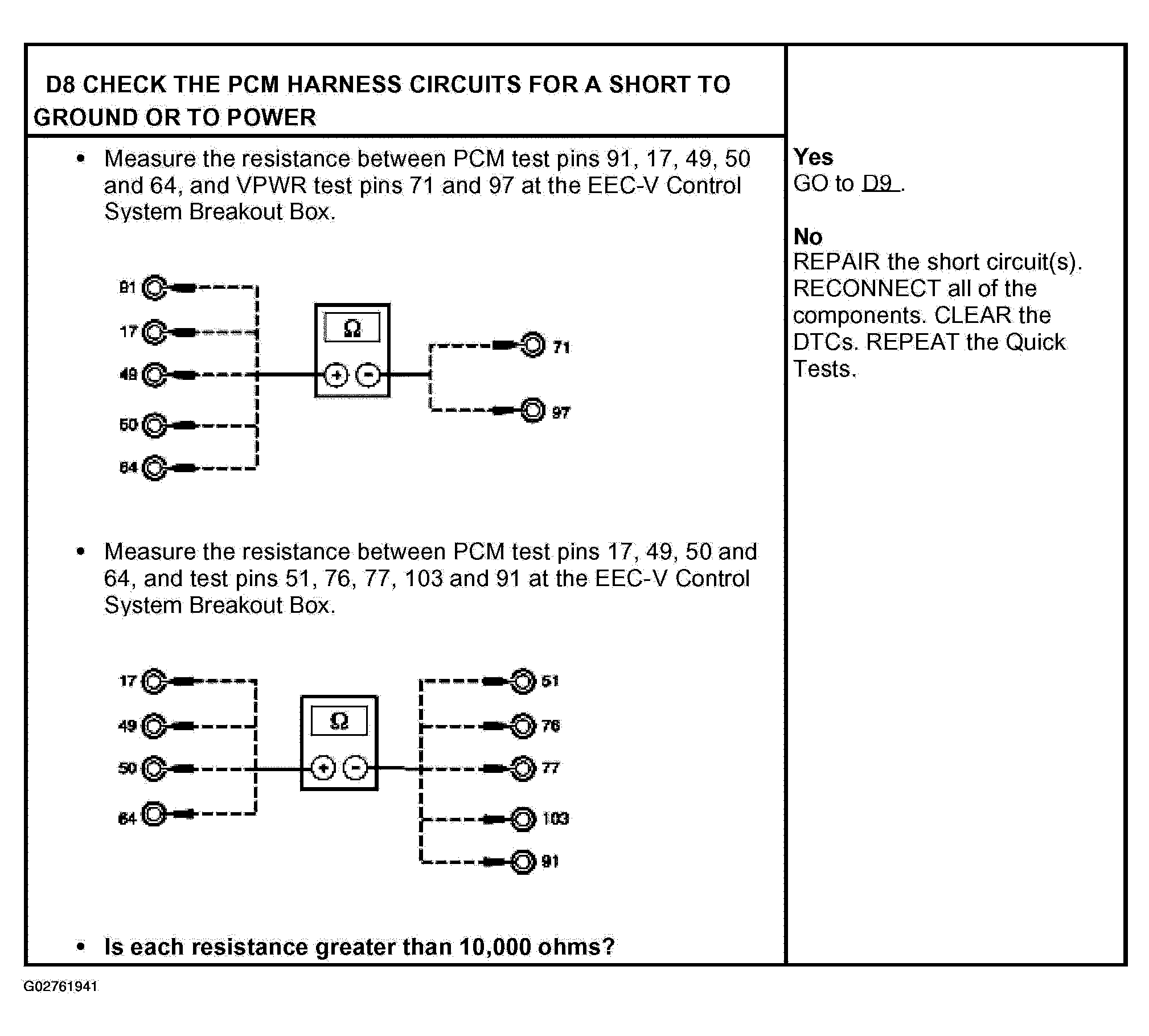

Fig 3: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D8)

Courtesy of FORD MOTOR CO.

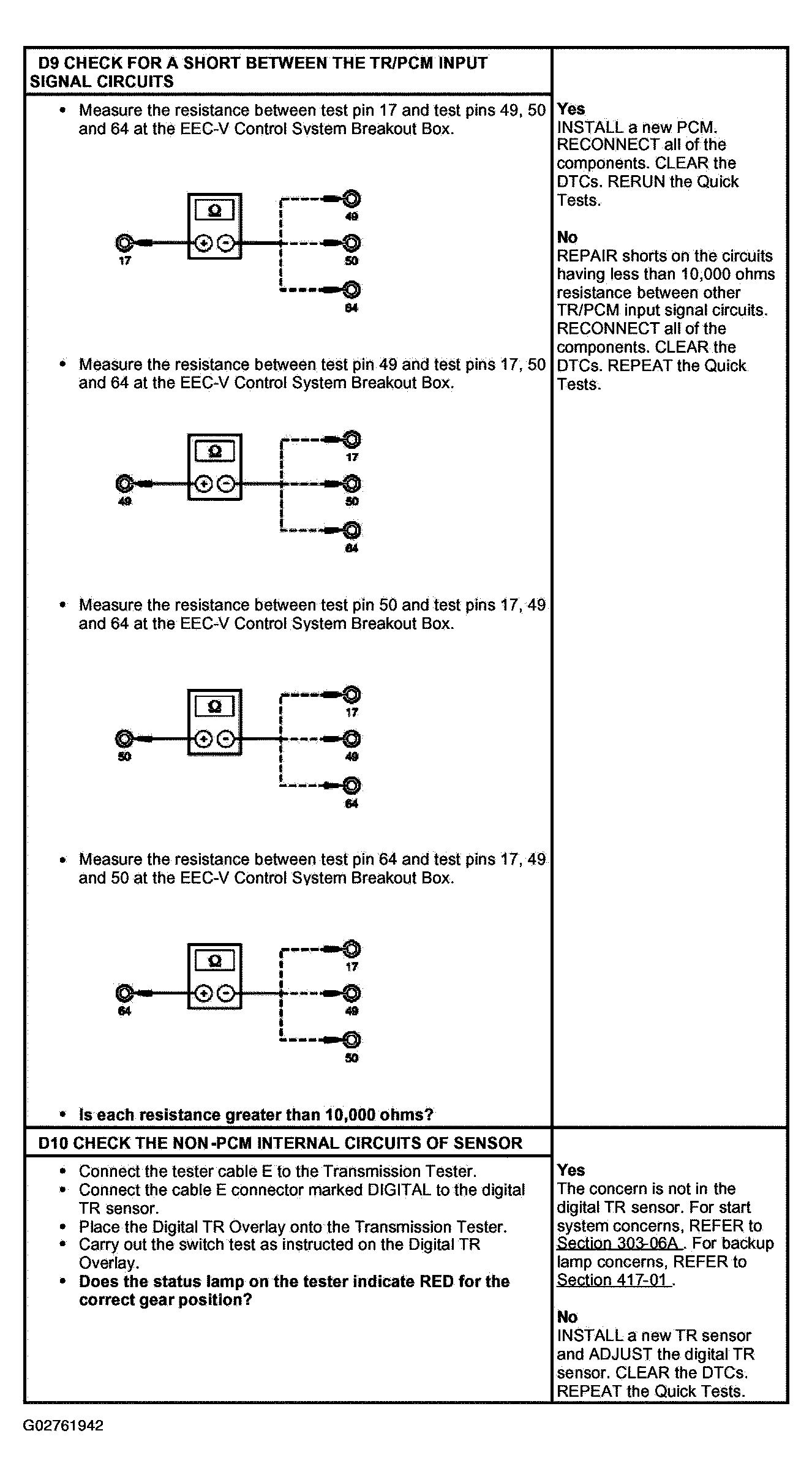

Fig 4: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D9 To D10)

Courtesy of FORD MOTOR CO.
