Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests.

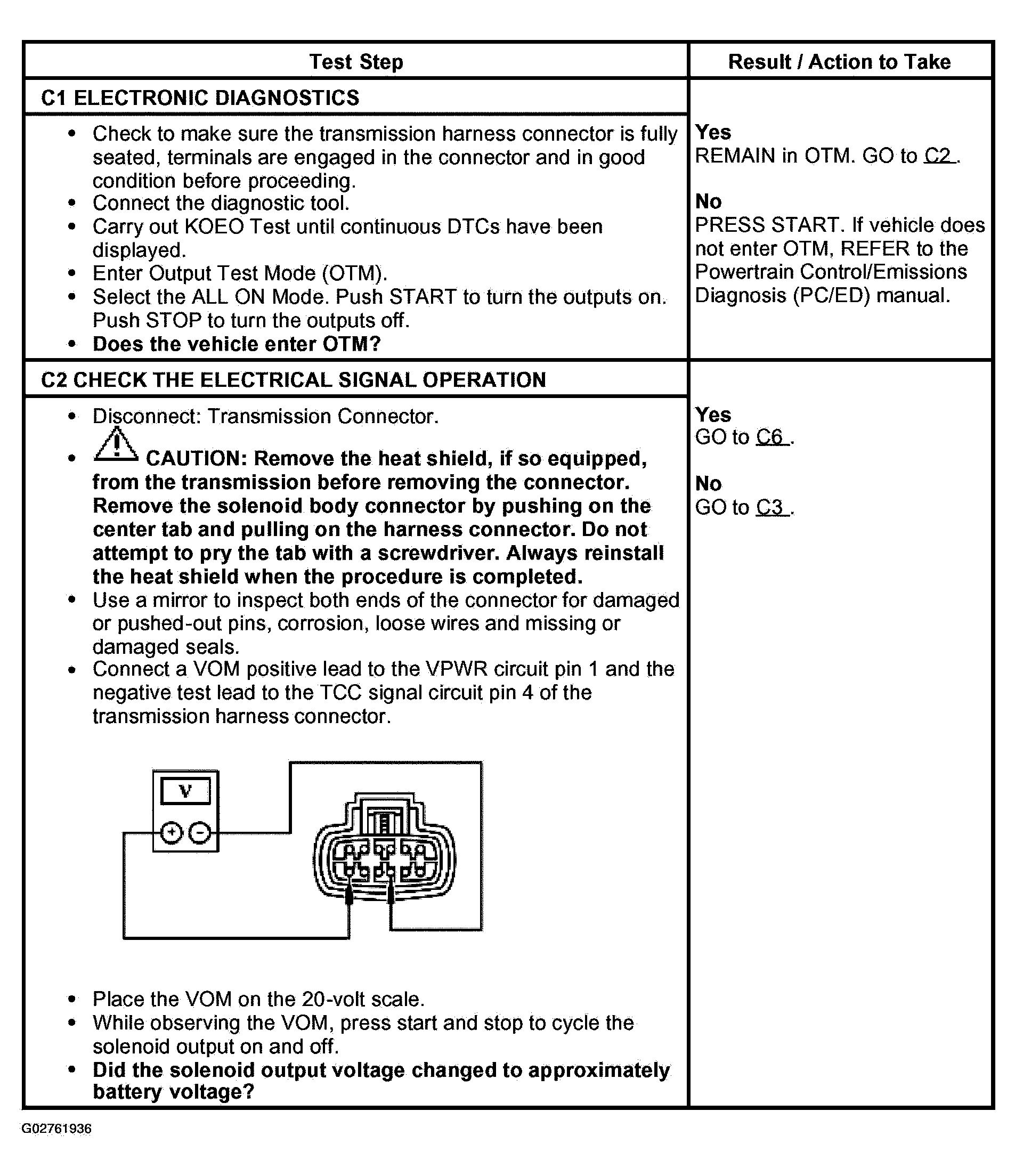

Fig 1: Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid (Step C1 To C2)
G02761936Courtesy of FORD MOTOR CO.

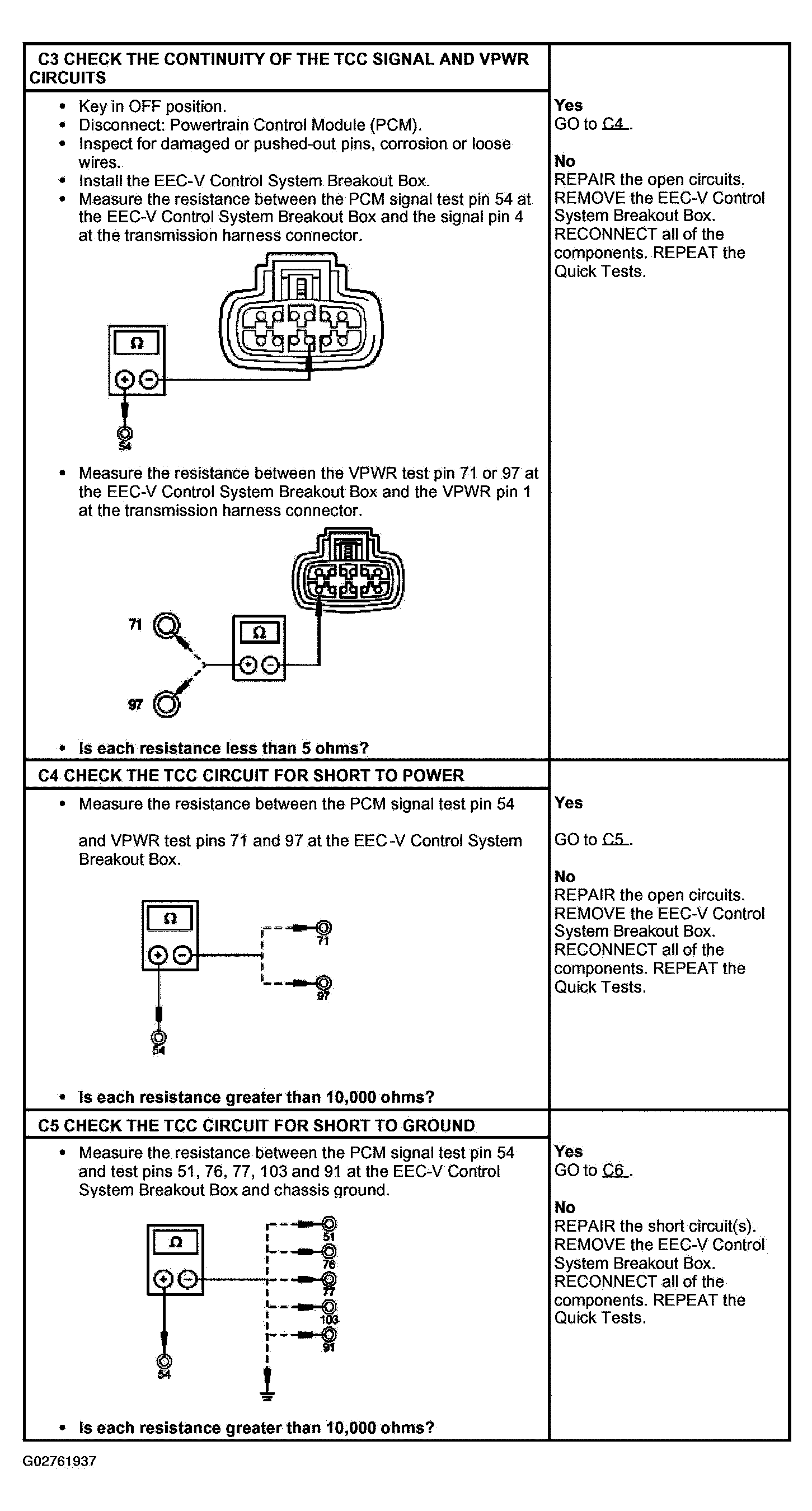

Fig 2: Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid (Step C3 To C5)
G02761937Courtesy of FORD MOTOR CO.

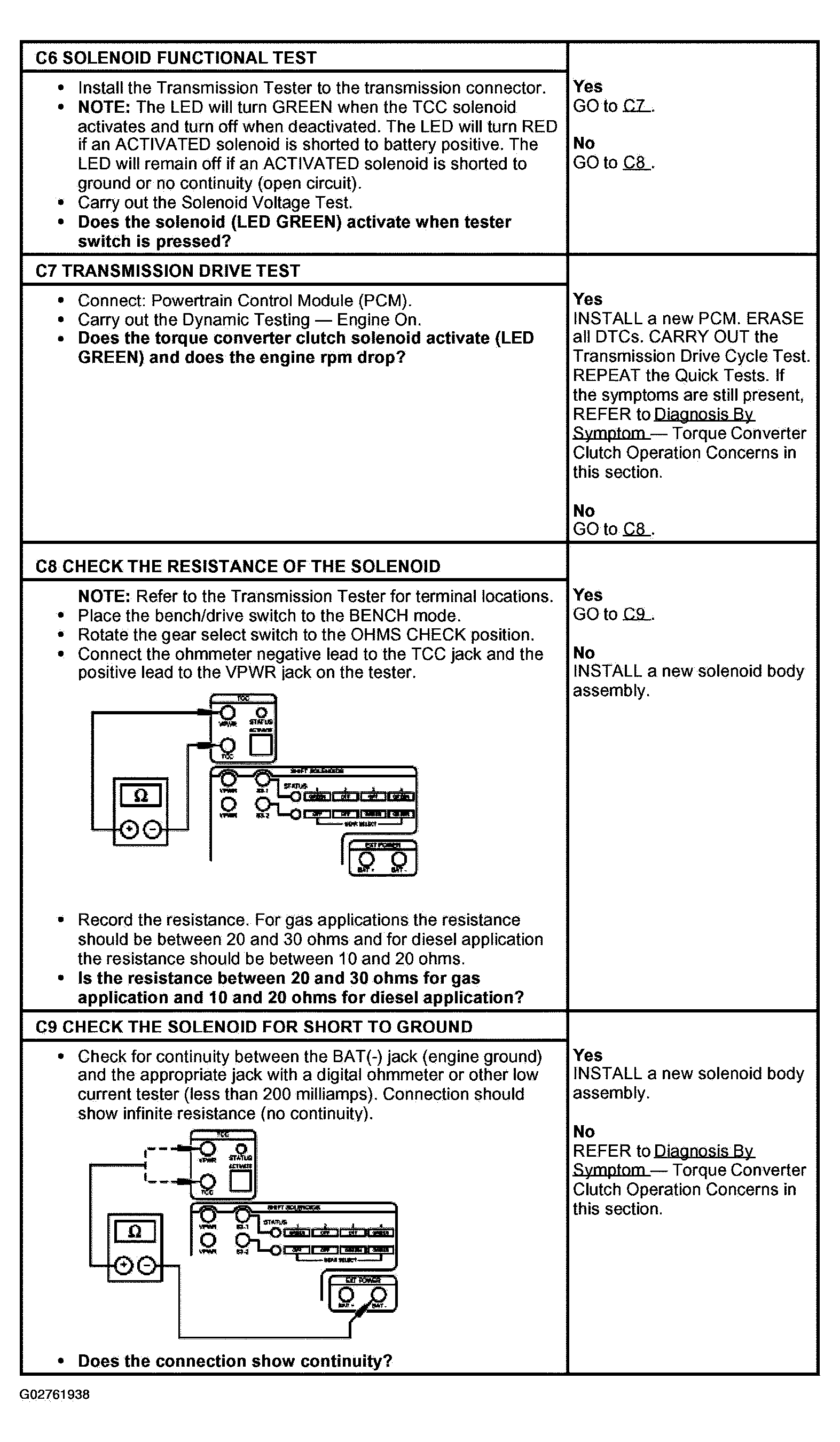

Fig 3: Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid (Step C6 To C9)
G02761938Courtesy of FORD MOTOR CO.
