Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests.

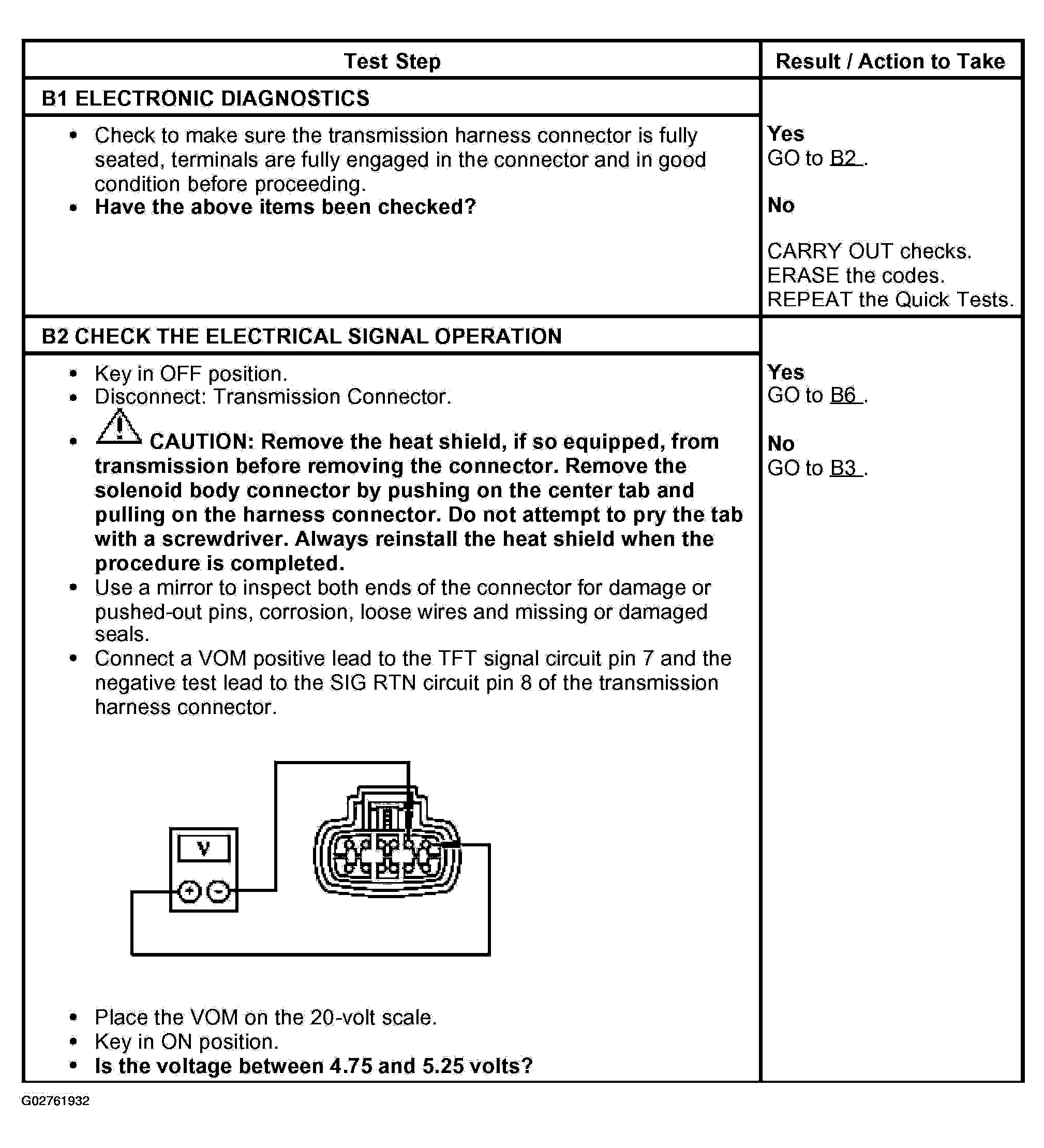

Fig 1: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B1 To B2)

Courtesy of FORD MOTOR CO.

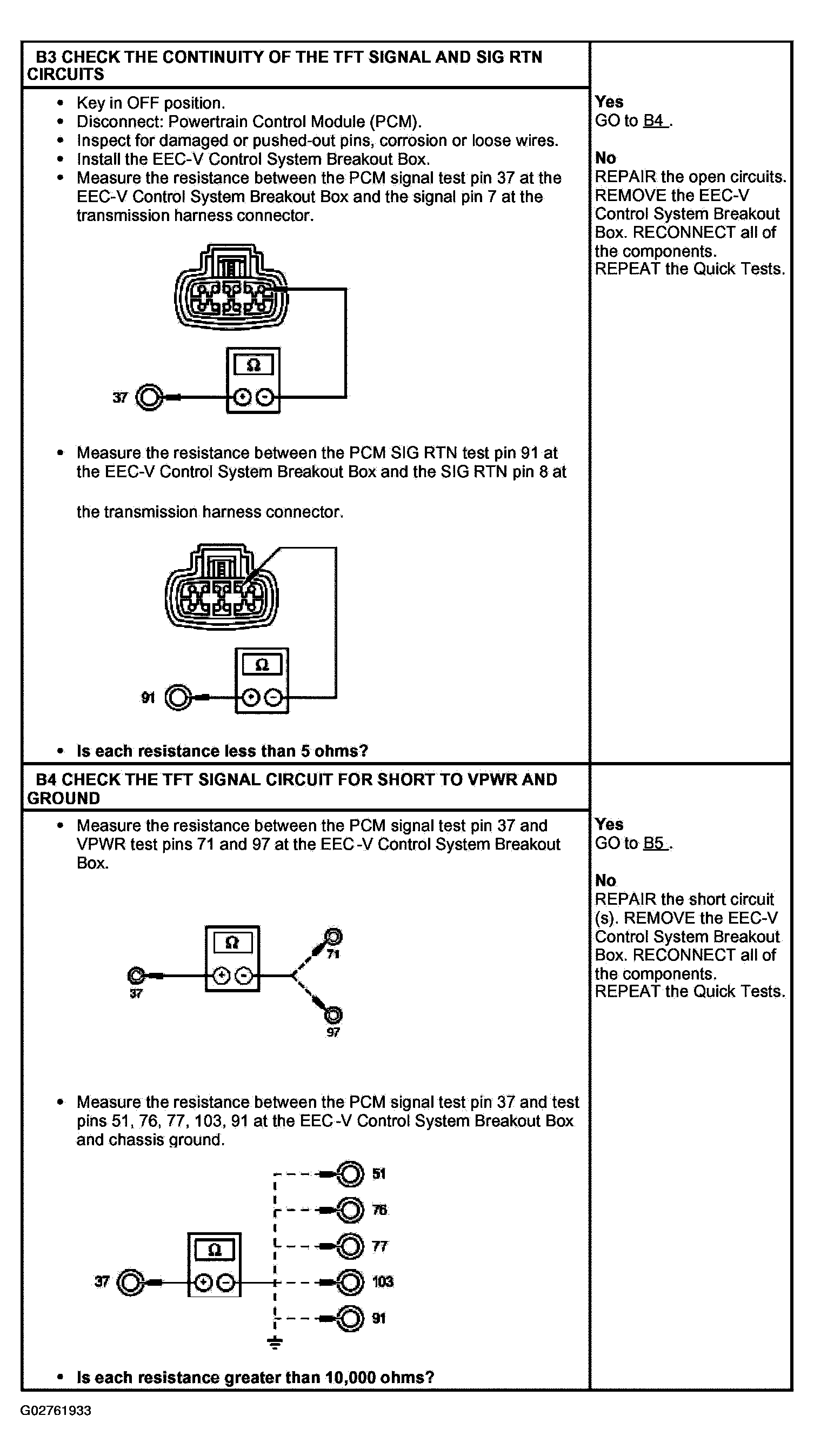

Fig 2: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B3 To B4)

Courtesy of FORD MOTOR CO.

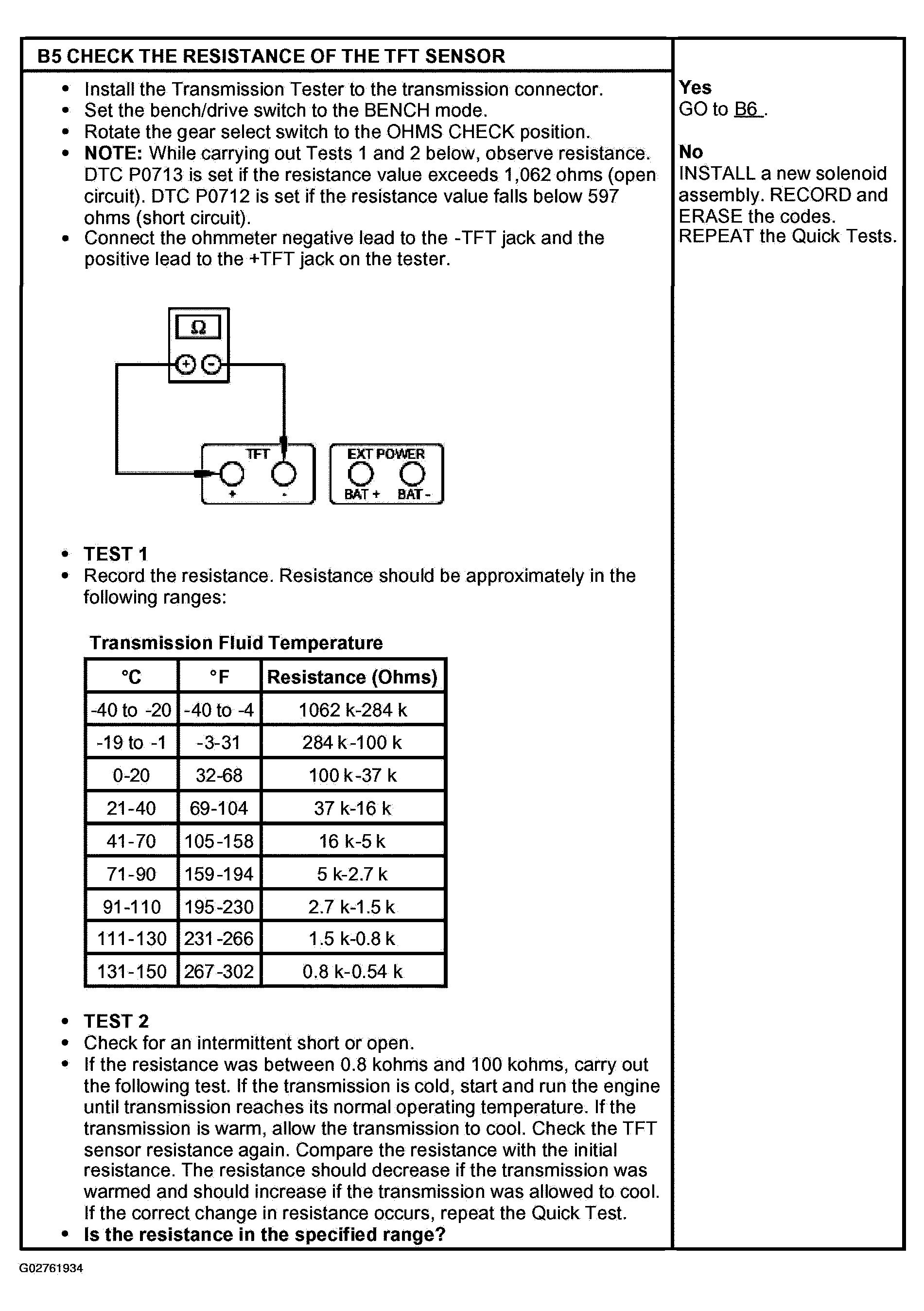

Fig 3: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B5)

Courtesy of FORD MOTOR CO.

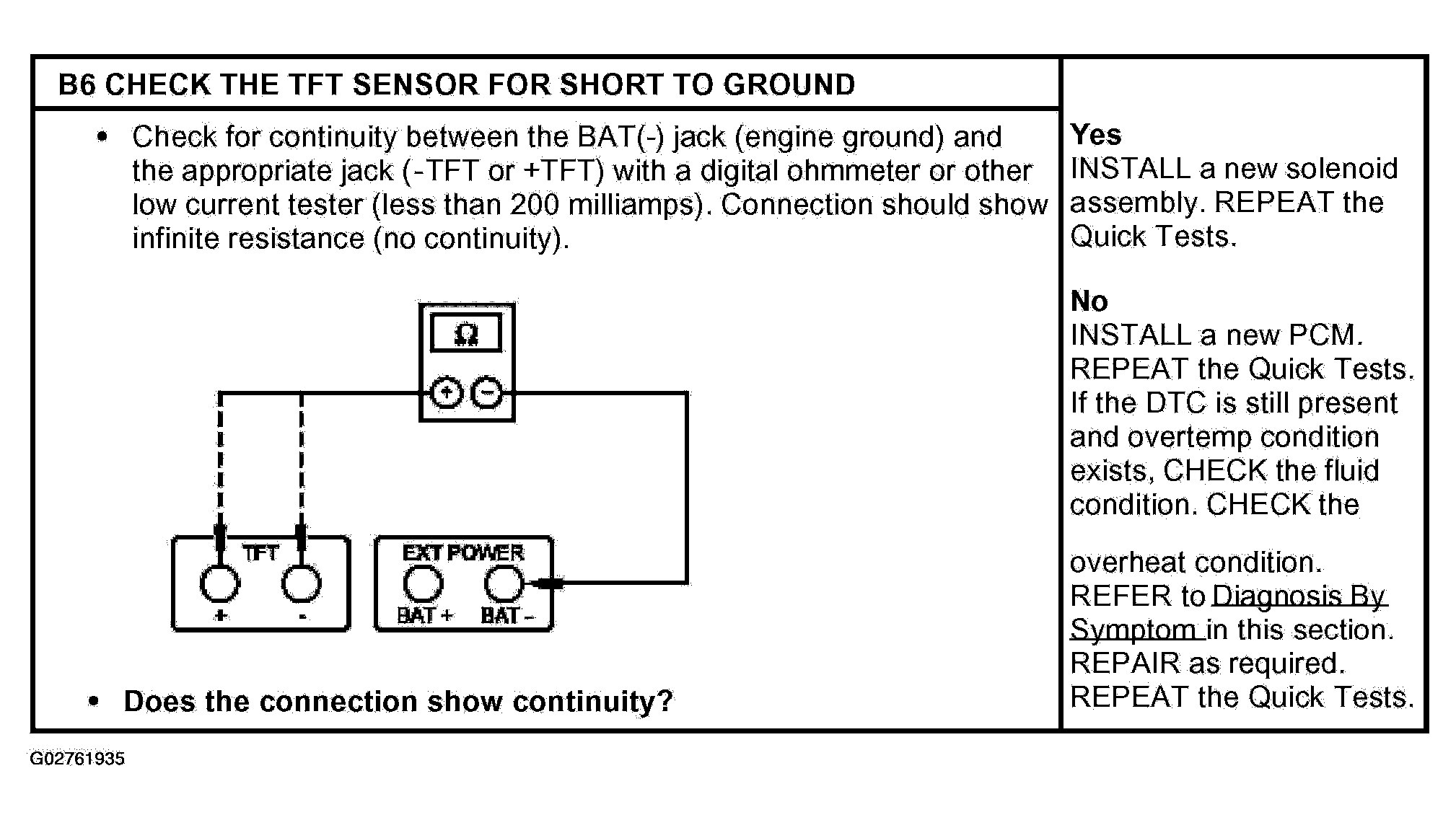

Fig 4: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B6)

Courtesy of FORD MOTOR CO.
