Diagnosis By Symptom: Notes
WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

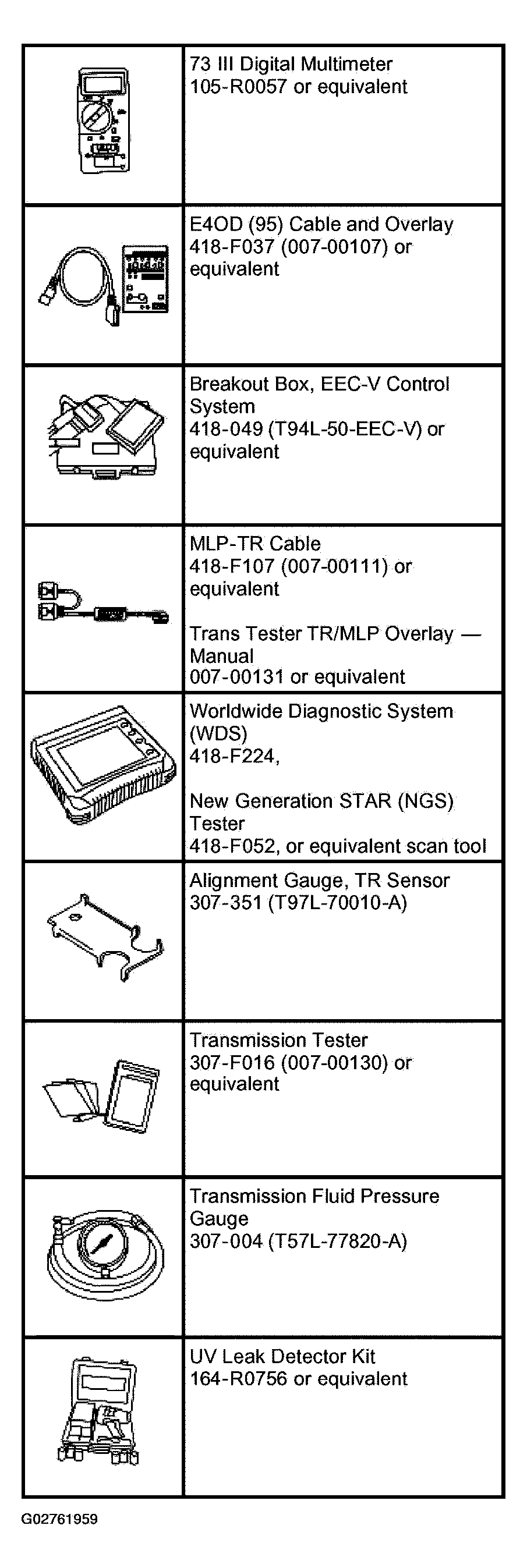

SPECIAL TOOL(S)
The Diagnosis by Symptom Charts give the technician diagnostic information and direction and list possible components, using a SYMPTOM as a starting point.
The Diagnosis by Symptom Charts are divided into two categories: electrical routines, indicated by 200 series numbers, and hydraulic/mechanical routines, indicated by 300 series numbers. The electrical routines list the possible electrical components that could have caused or contributed to the symptom described. The hydraulic/mechanical routines list the possible hydraulic or mechanical components that could cause or contribute to the symptom described.
