Diagnosis by Symptom Index

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

DIAGNOSIS BY SYMPTOM INDEX

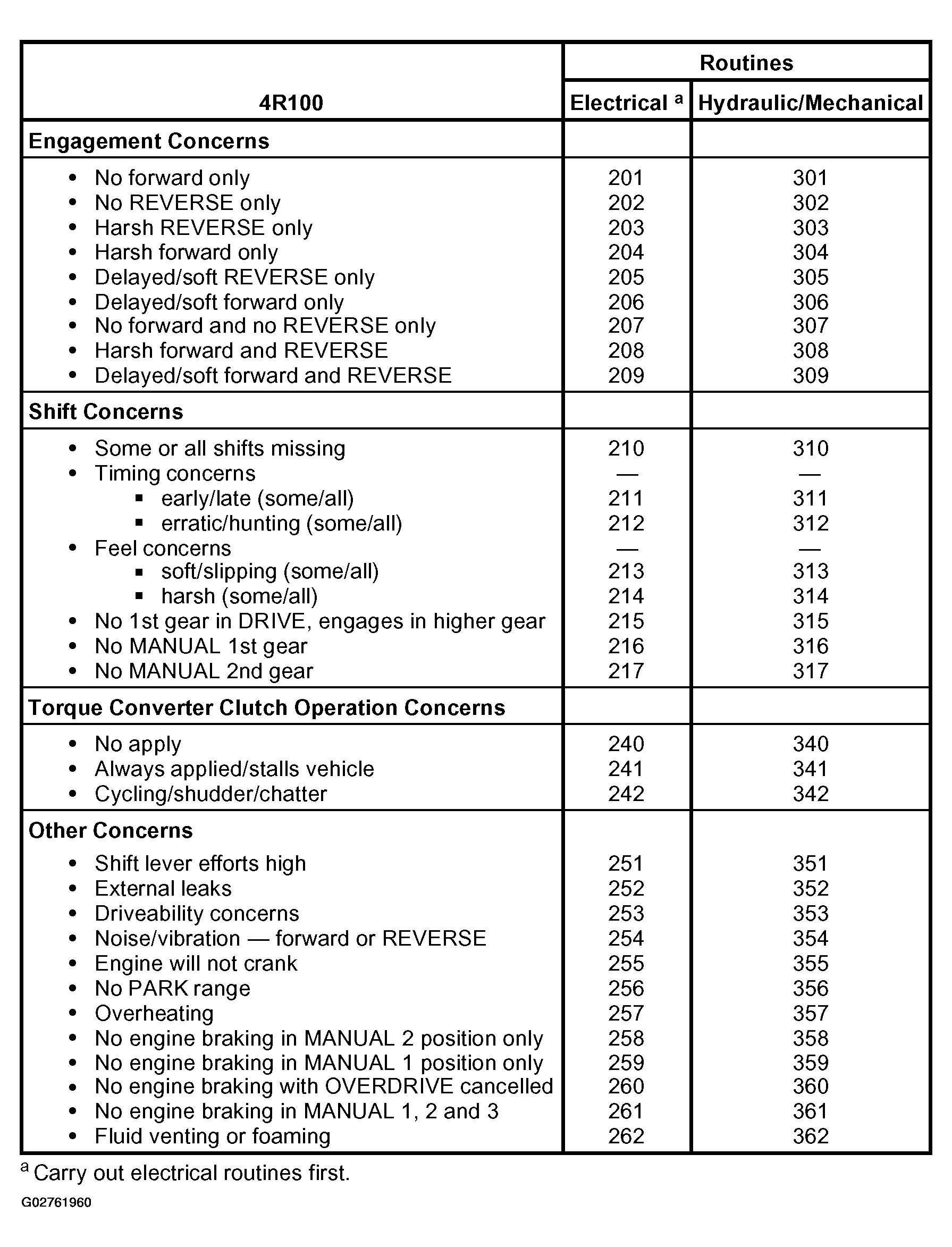

Fig 1: Diagnosis By Symptom Index
G02761960Courtesy of FORD MOTOR CO.
