WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

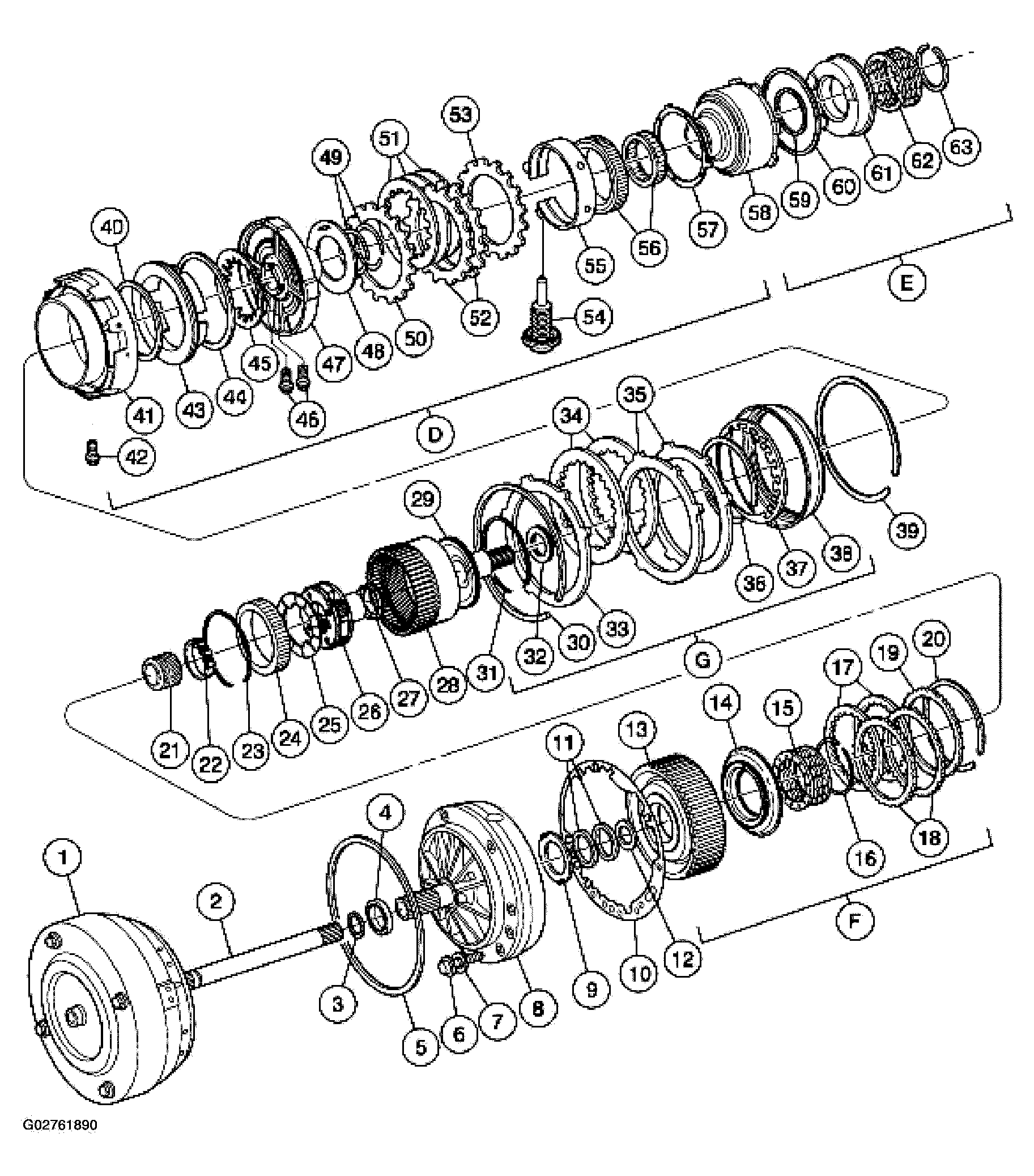

Fig 1: Disassembled Views Transmission (1 Of 3)
Courtesy of FORD MOTOR CO.

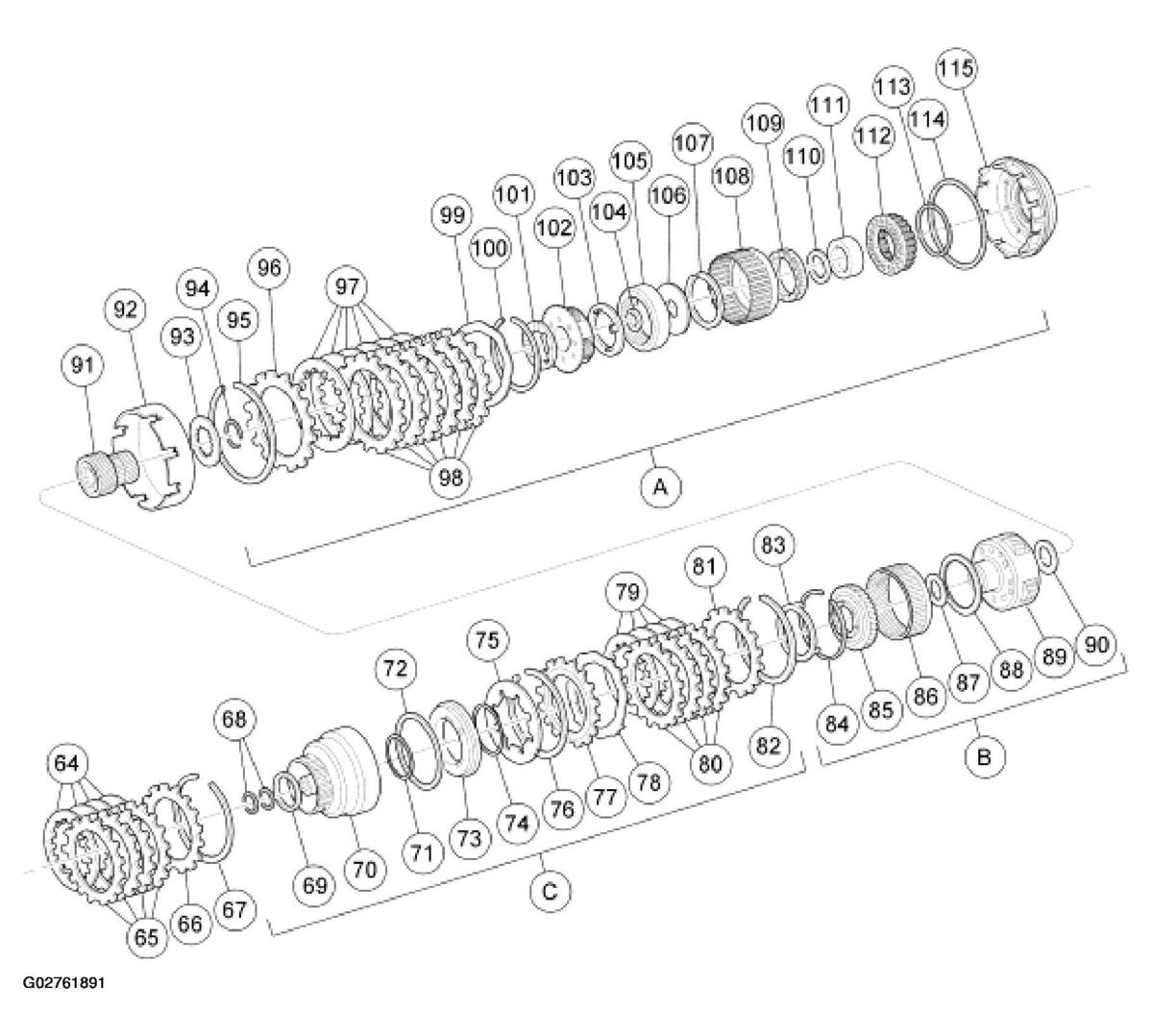

Fig 2: Disassembled Views Transmission (2 Of 3)
Courtesy of FORD MOTOR CO.

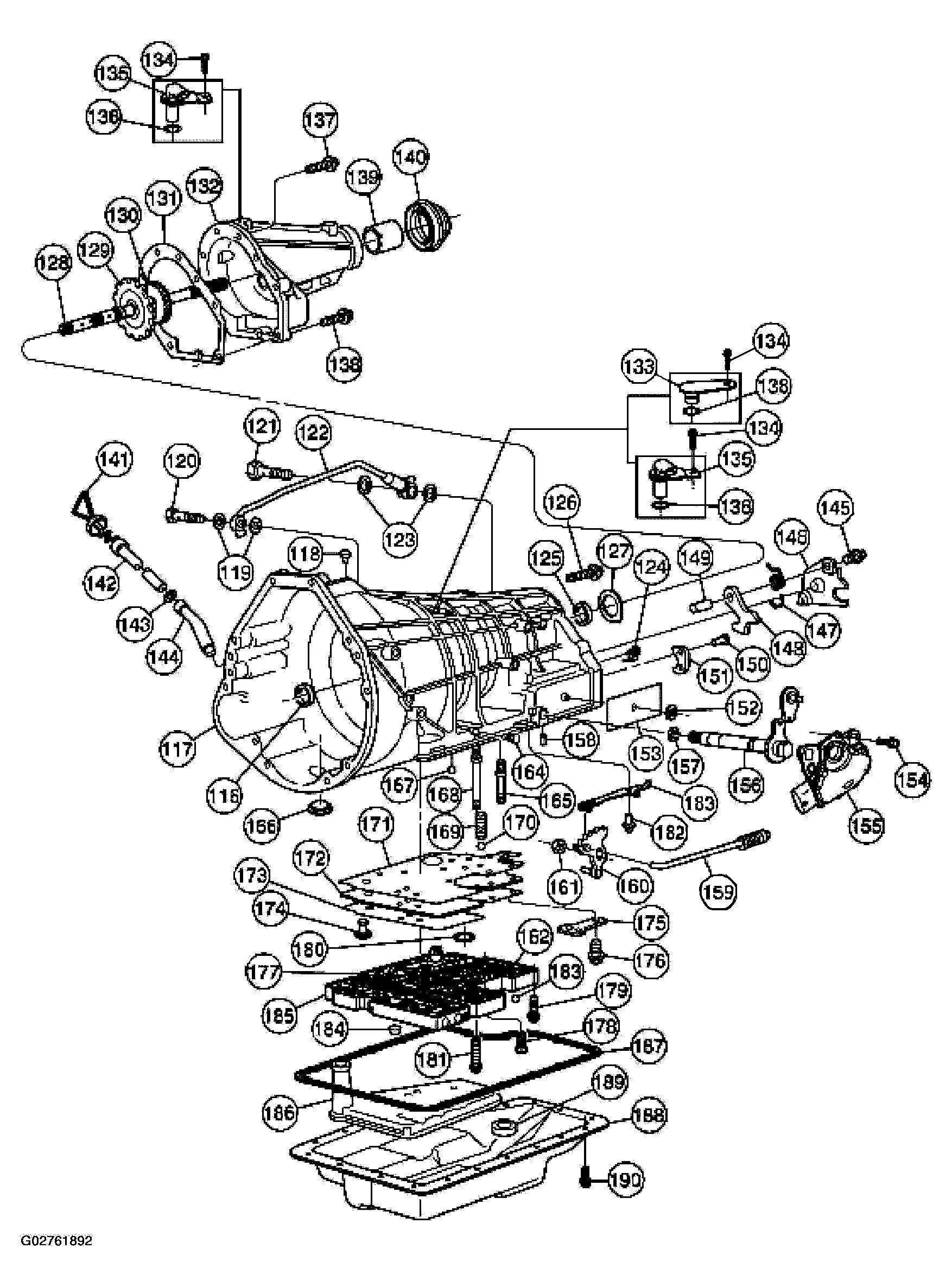

Fig 3: Disassembled View Transmission (3 Of 3)
Courtesy of FORD MOTOR CO.

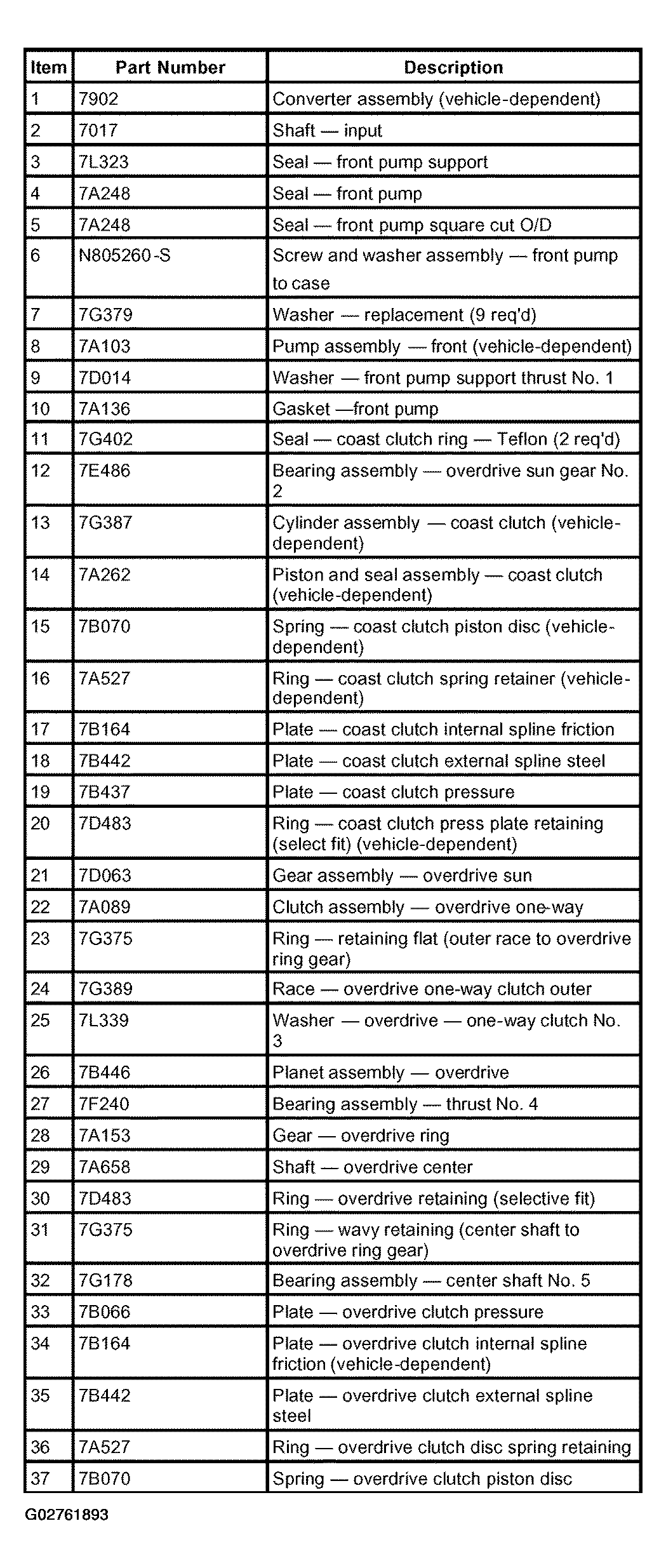

Fig 4: Item, Part Number and Description (Items 1-37)
Courtesy of FORD MOTOR CO.

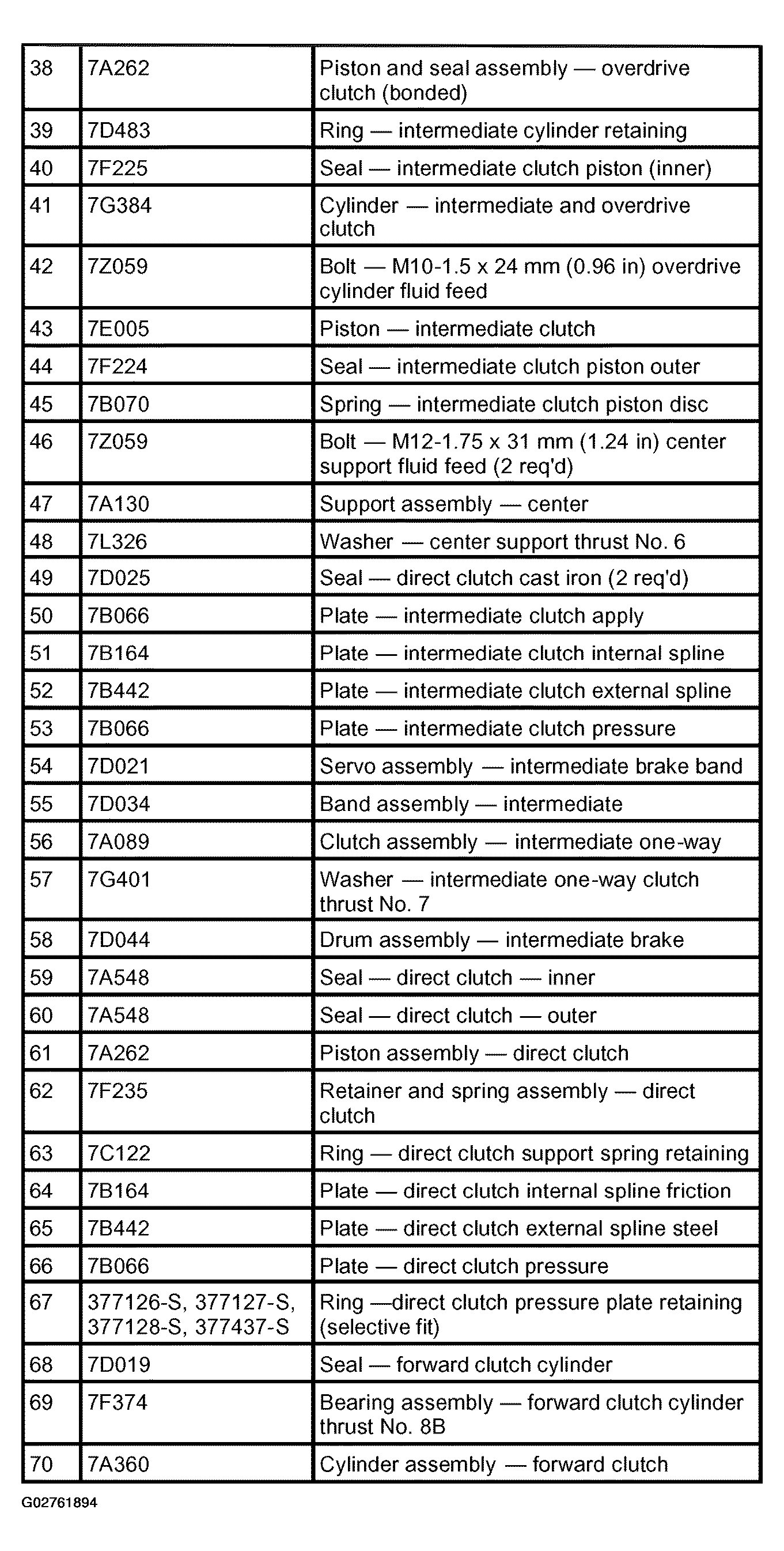

Fig 5: Item, Part Number and Description (Items 38-70)
Courtesy of FORD MOTOR CO.

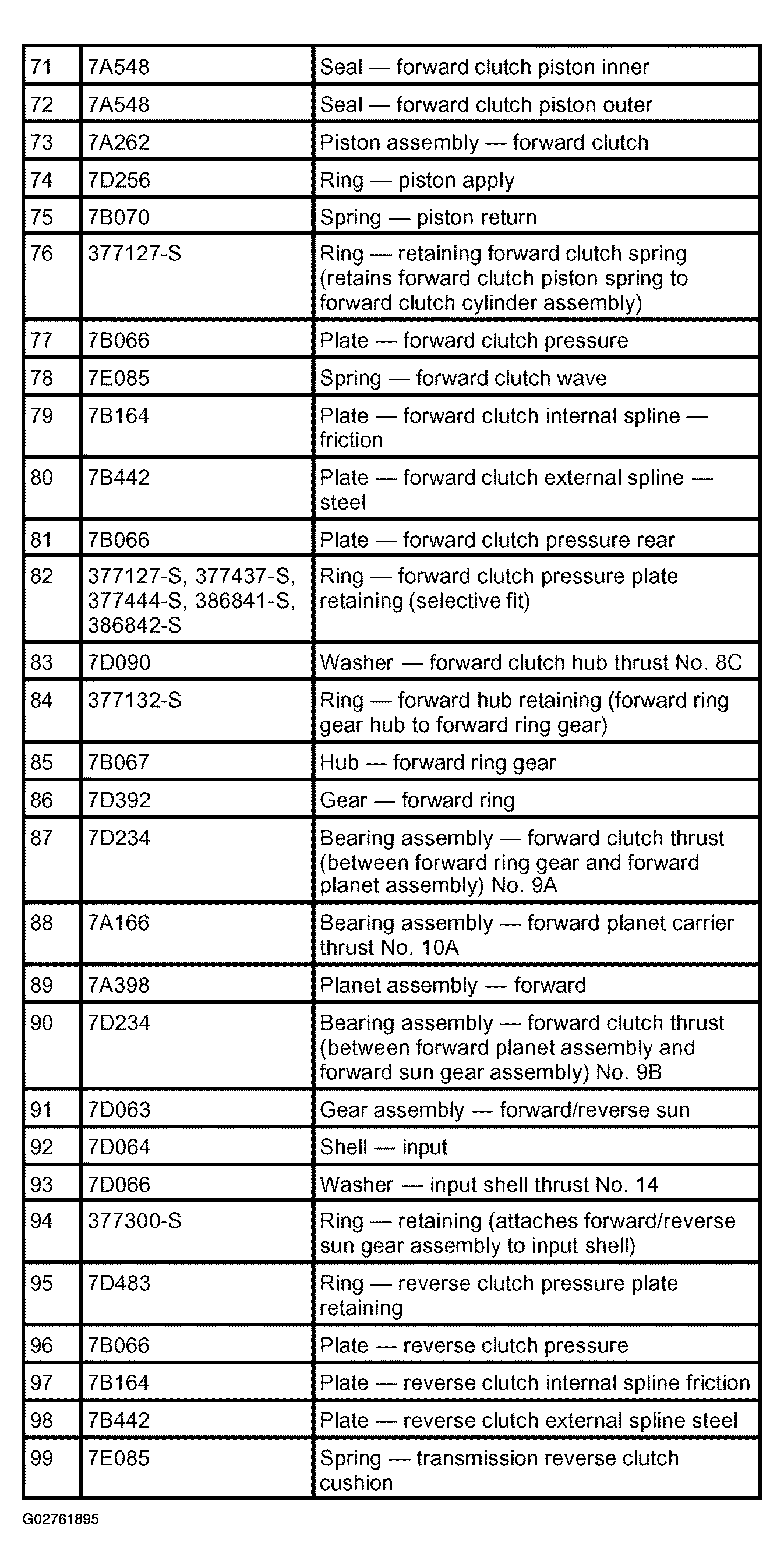

Fig 6: Item, Part Number and Description (Items 71-99)
Courtesy of FORD MOTOR CO.

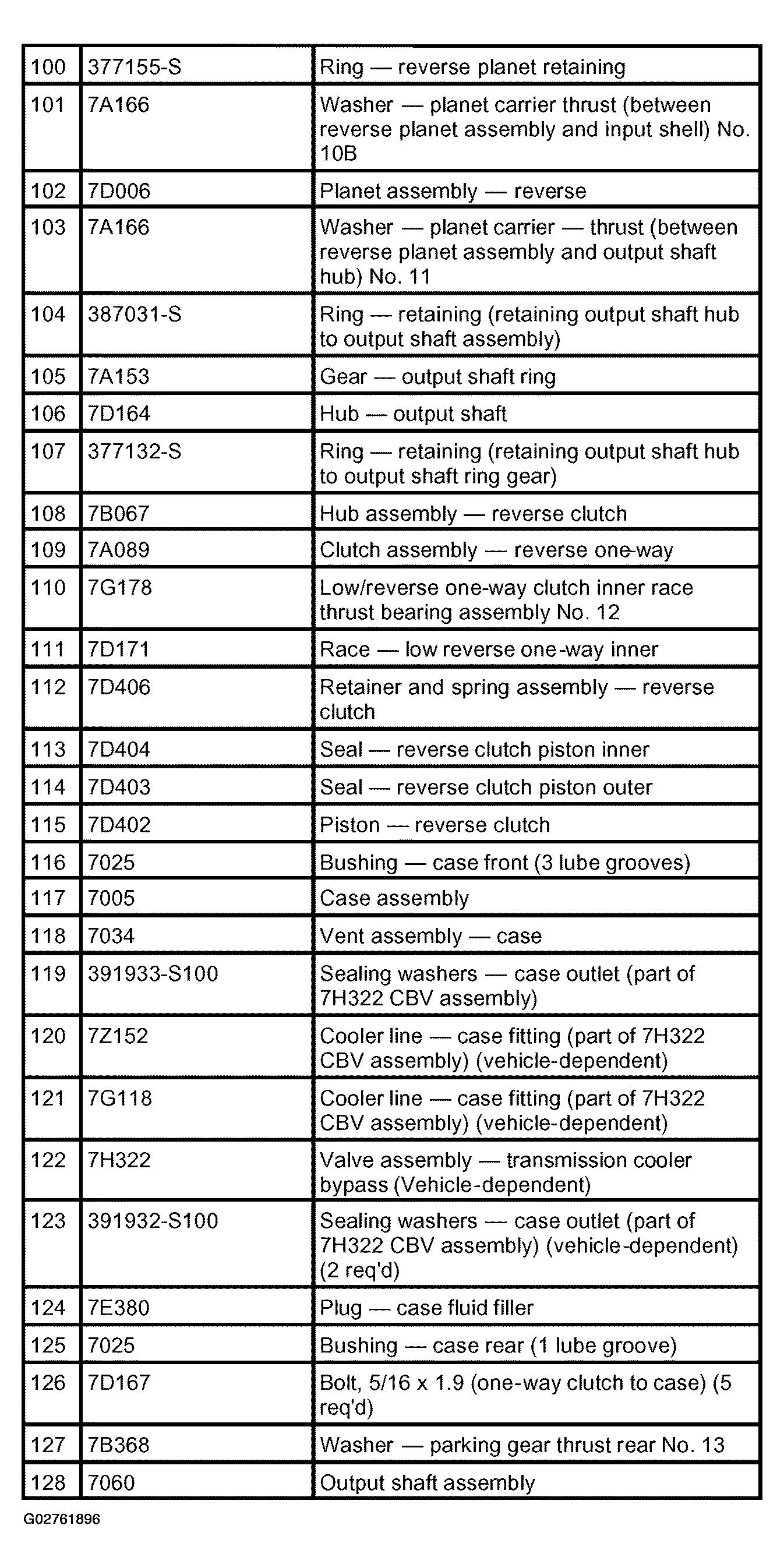

Fig 7: Item, Part Number and Description (Items 100-128)
Courtesy of FORD MOTOR CO.

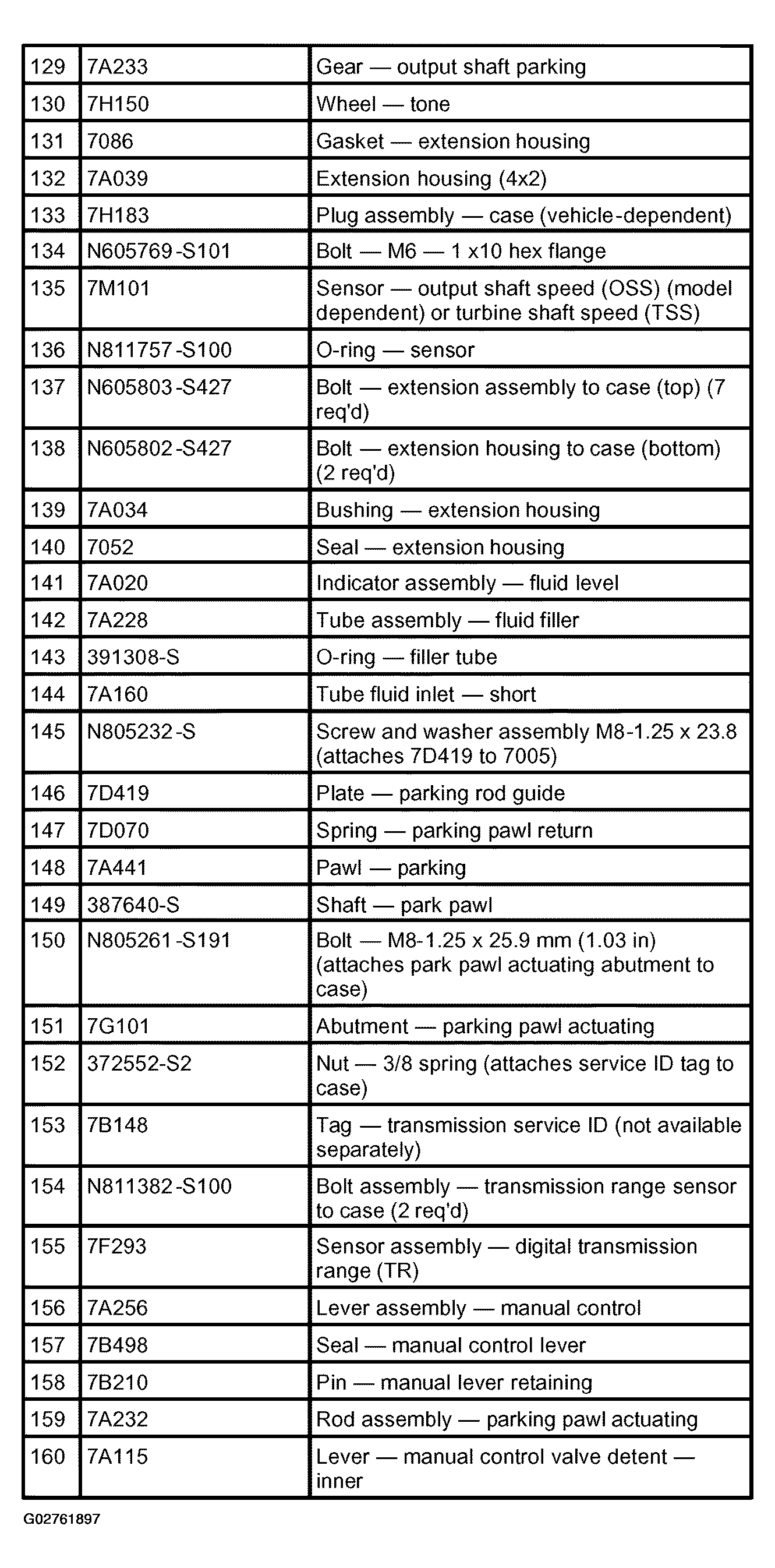

Fig 8: Item, Part Number and Description (Items 129-160)
Courtesy of FORD MOTOR CO.

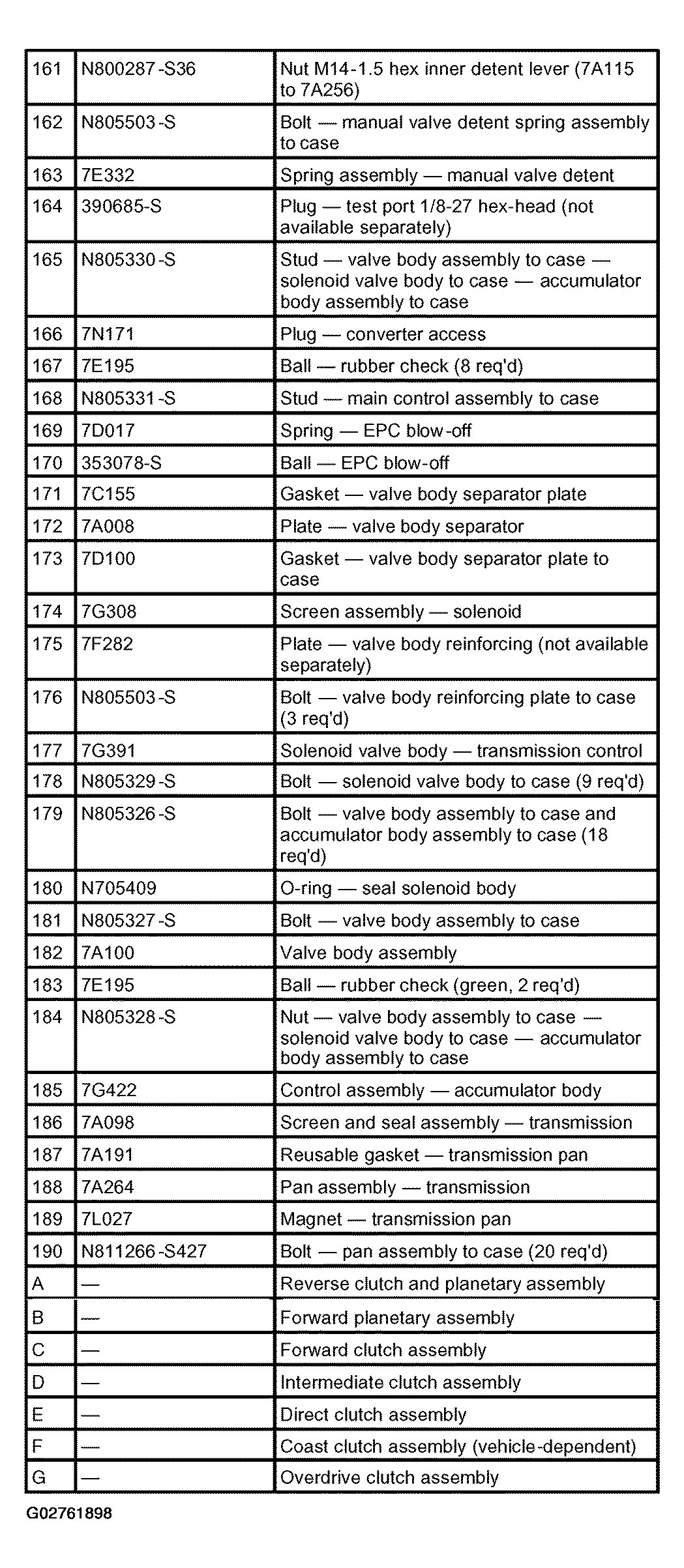

Fig 9: Item, Part Number and Description (Items 161-190; A-G)
