Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Disconnect the turbocharger variable vane hydraulic control valve electrical connector.

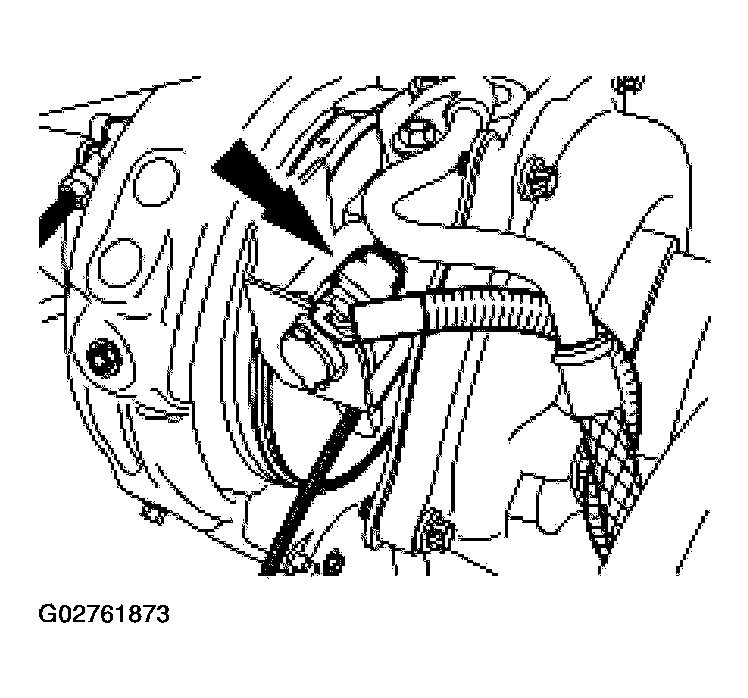

Fig 1: Disconnecting Turbocharger Variable Vane Hydraulic Control Valve Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolt, bracket and the turbocharger variable vane hydraulic control valve.

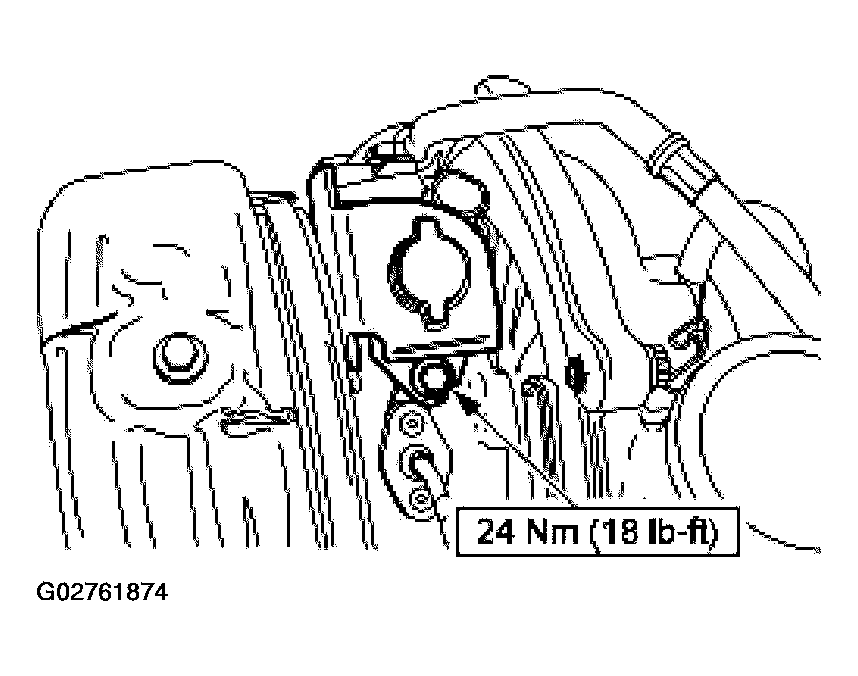

Fig 2: Removing Bolt, Bracket And Turbocharger Variable Vane Hydraulic Control Valve
Courtesy of FORD MOTOR CO.

CAUTION: Do not use the retaining bolt to draw the valve into the housing or damage to the valve can occur.

NOTE: Inspect the O-ring seals to make sure they are not twisted or distorted.

To install, reverse the removal procedure.
- Apply clean engine oil to the O-ring seals prior to installing.
