Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
  2. Disconnect the mass airflow (MAF) sensor electrical connector.

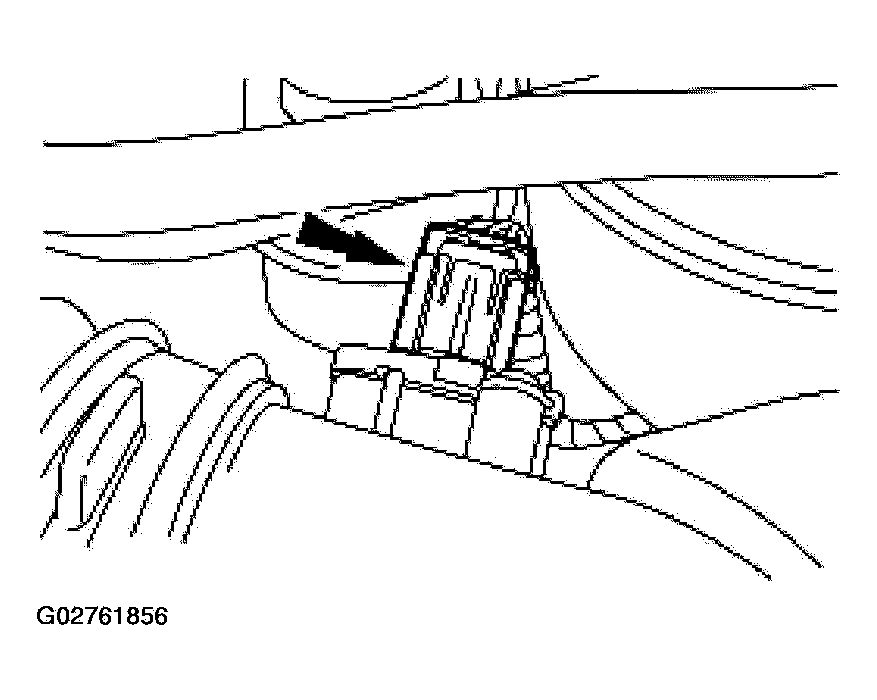

    Fig 1: Disconnecting Mass Airflow (MAF) Sensor Electrical Connector
    G02761856Courtesy of FORD MOTOR CO.
  3. Remove the screws and the MAF sensor.

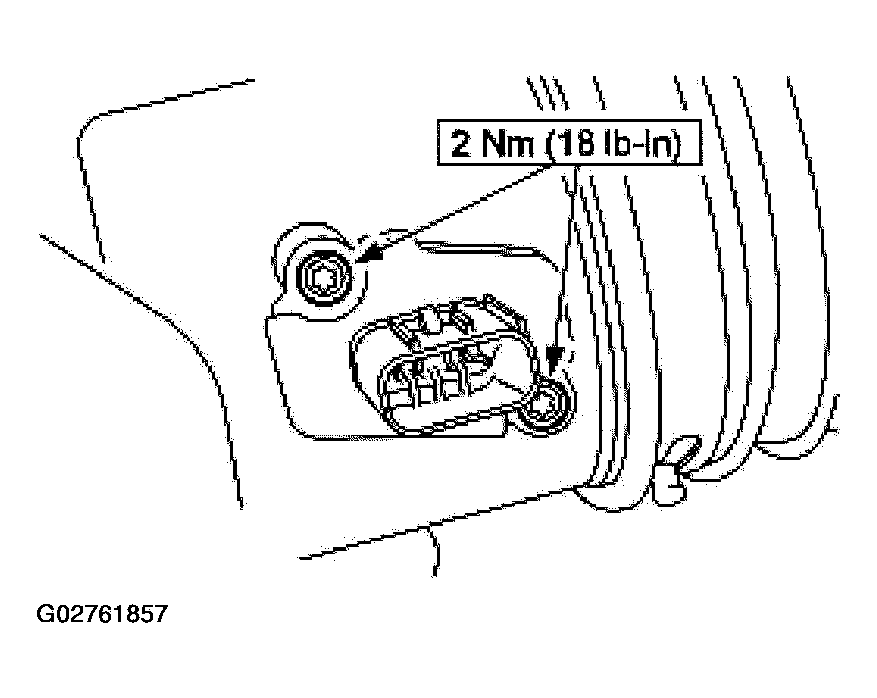

    Fig 2: Removing Screws And MAF Sensor
    G02761857Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
