Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Disconnect the exhaust back pressure (EBP) sensor electrical connector.

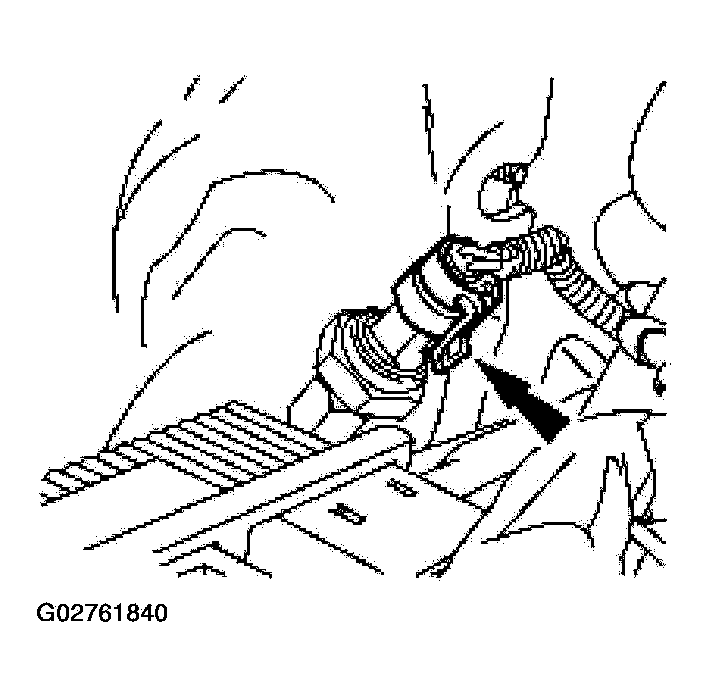

    Fig 1: Disconnecting Exhaust Back Pressure (EBP) Sensor Electrical Connector
    G02761840Courtesy of FORD MOTOR CO.
    4. CAUTION: Use a backup wrench to remove the exhaust back pressure sensor.

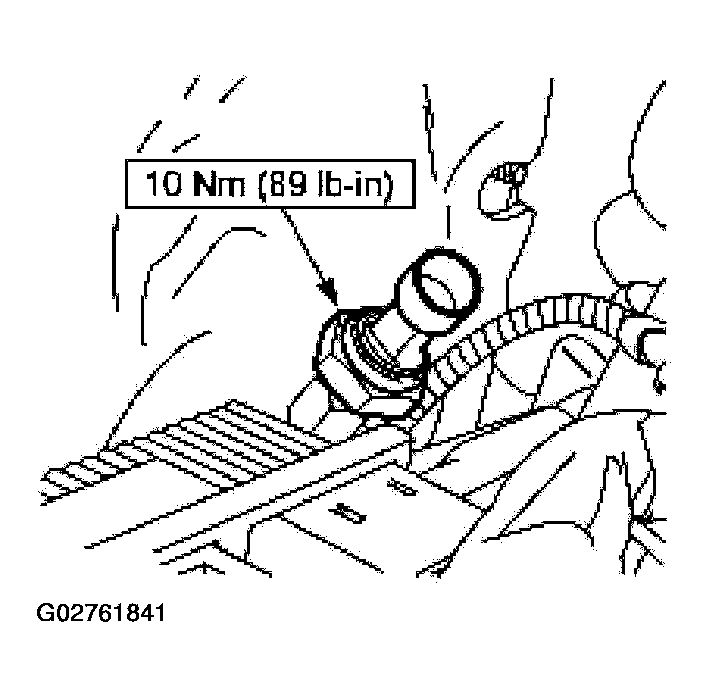

    Fig 2: Removing EBP Sensor
    G02761841Courtesy of FORD MOTOR CO.
  4. Remove the EBP sensor.
  5. To install, reverse the removal procedure.
