Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

Turn the ignition switch to the OFF position.
Remove the bolt and position the ground cable aside.

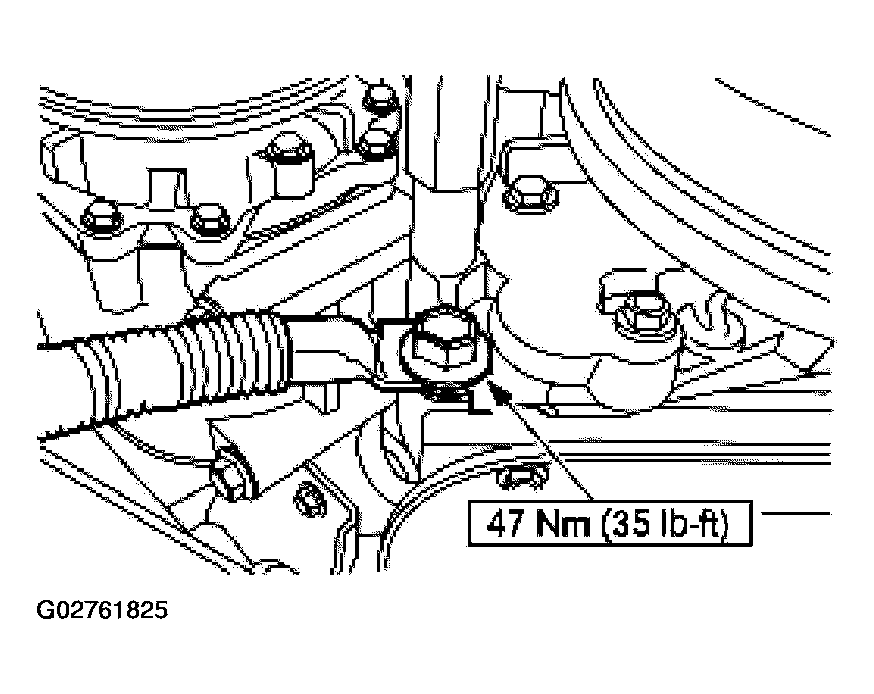

Fig 1: Removing Bolt And Position Ground Cable Aside
Courtesy of FORD MOTOR CO.
Disconnect the crankshaft position (CKP) sensor electrical connector.

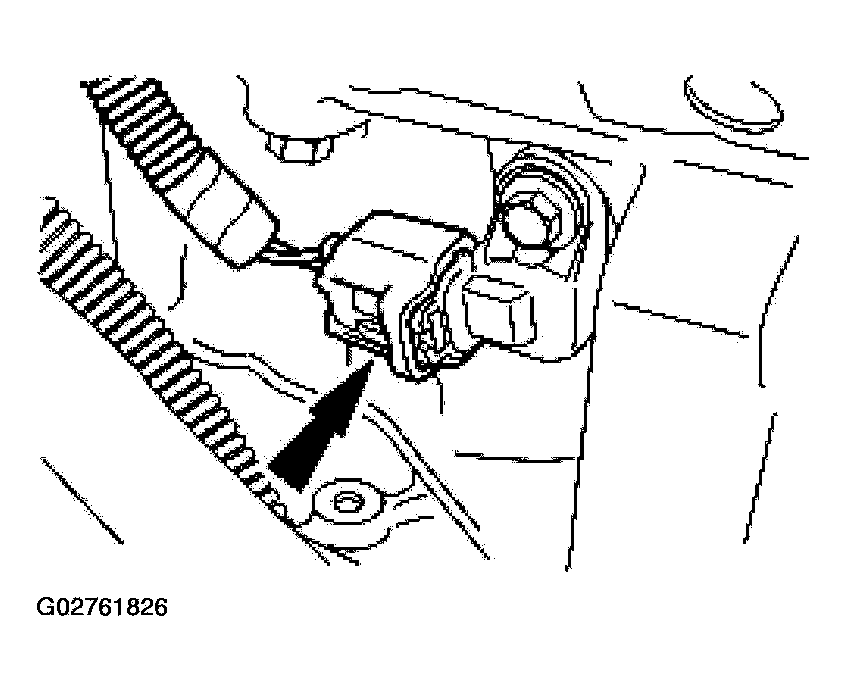

Fig 2: Disconnecting Crankshaft Position (CKP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolt and the CKP sensor.

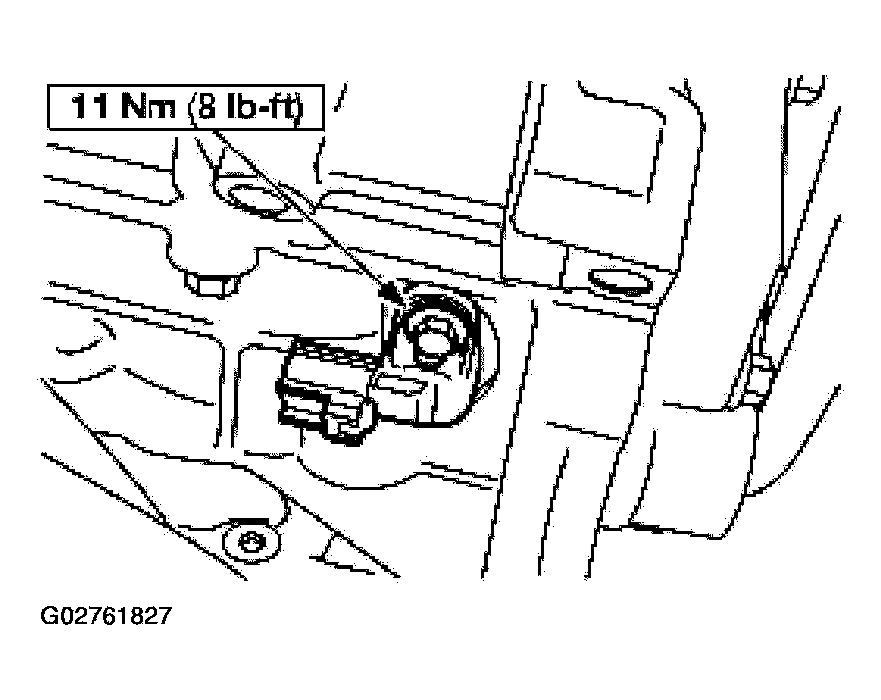

Fig 3: Removing Bolt And CKP Sensor
Courtesy of FORD MOTOR CO.

NOTE: Apply clean engine oil to the O-ring seal before installation.

To install, reverse the removal procedure.
