Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel steering column cover.

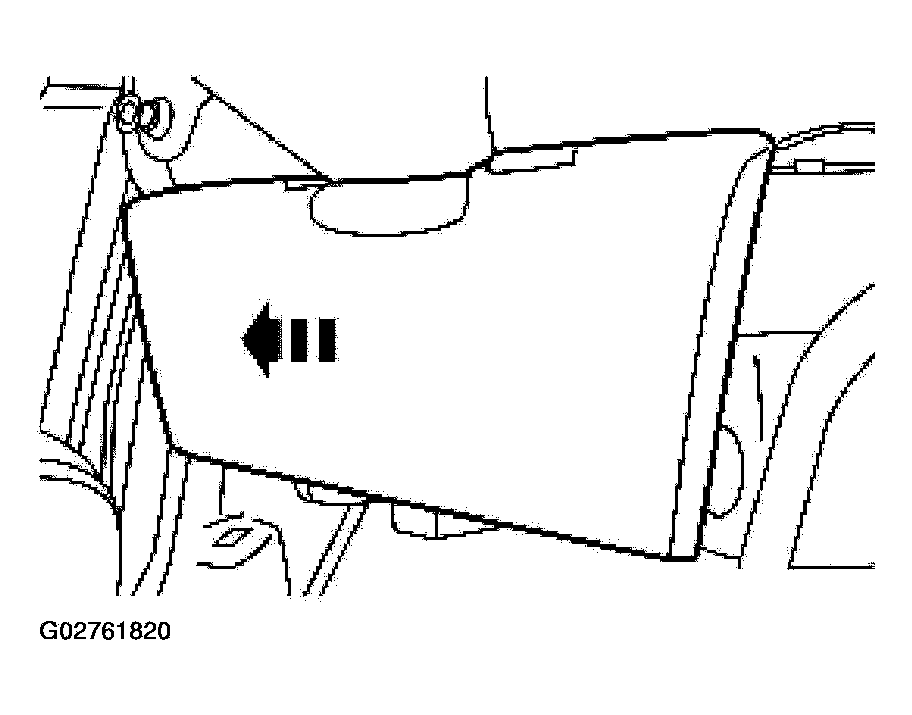

    Fig 1: Removing Instrument Panel Steering Column Cover
    G02761820Courtesy of FORD MOTOR CO.
  2. Disconnect the pin-type retainer and position the barometric pressure (BARO) sensor out of the dash.

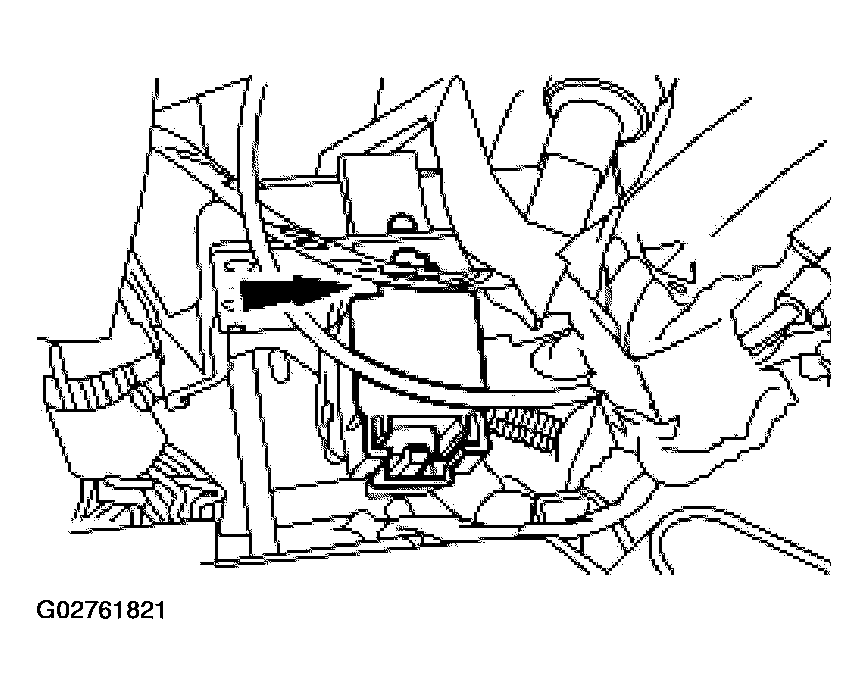

    Fig 2: Disconnecting Pin-Type Retainer
    G02761821Courtesy of FORD MOTOR CO.
  3. Disconnect and remove the BARO sensor.

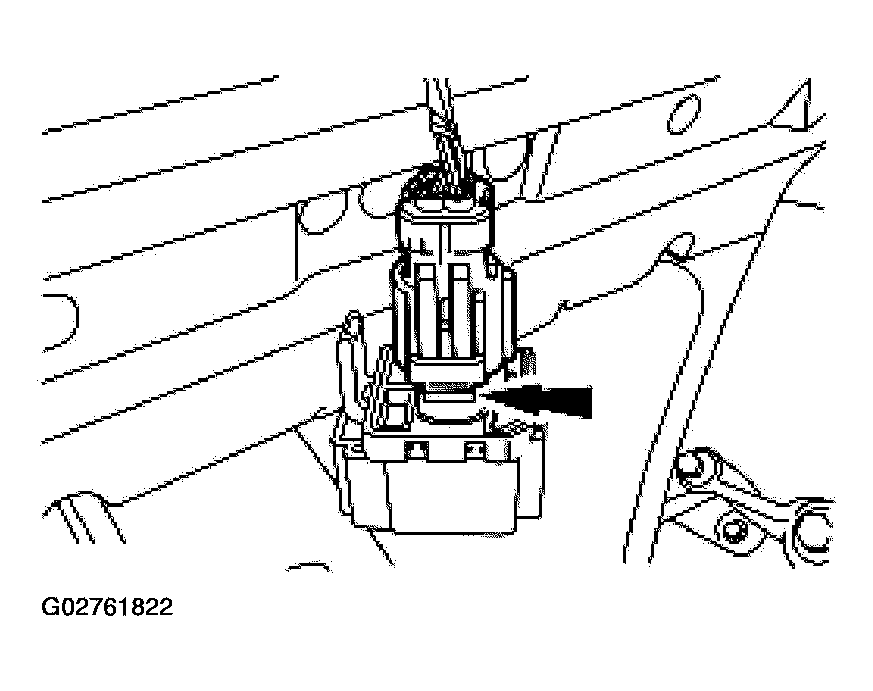

    Fig 3: Removing BARO Sensor
    G02761822Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
