Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Disconnect the throttle position (TP) sensor electrical connector.

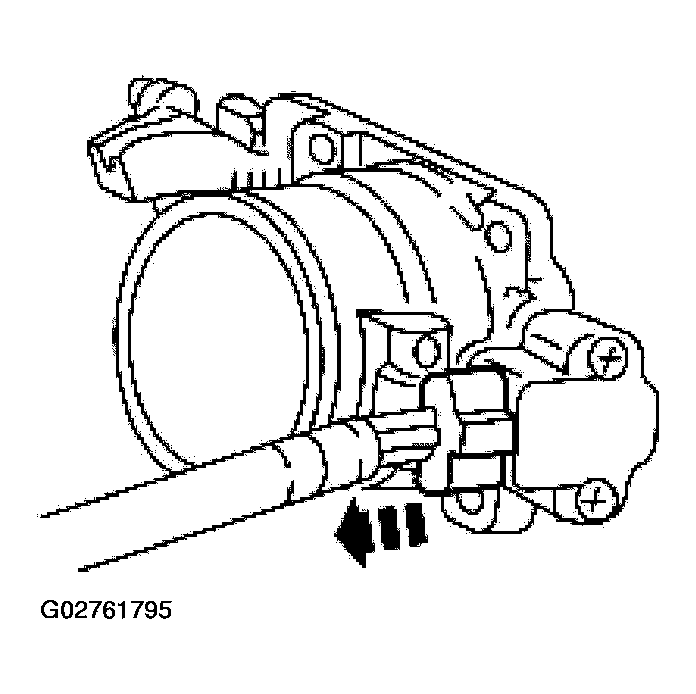

    Fig 1: Disconnecting Throttle Position (TP) Sensor Electrical Connector
    G02761795Courtesy of FORD MOTOR CO.
  4. Remove the screws and the sensor.
    Fig 2: Removing Screws And Sensor
    G02761796Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
