Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
CAUTION: Do not tamper with the mass air flow (MAF) sensing elements located in the airflow meter. Tampering may result in unit failure.

NOTE: The MAF sensor and body are calibrated and serviced as a unit.

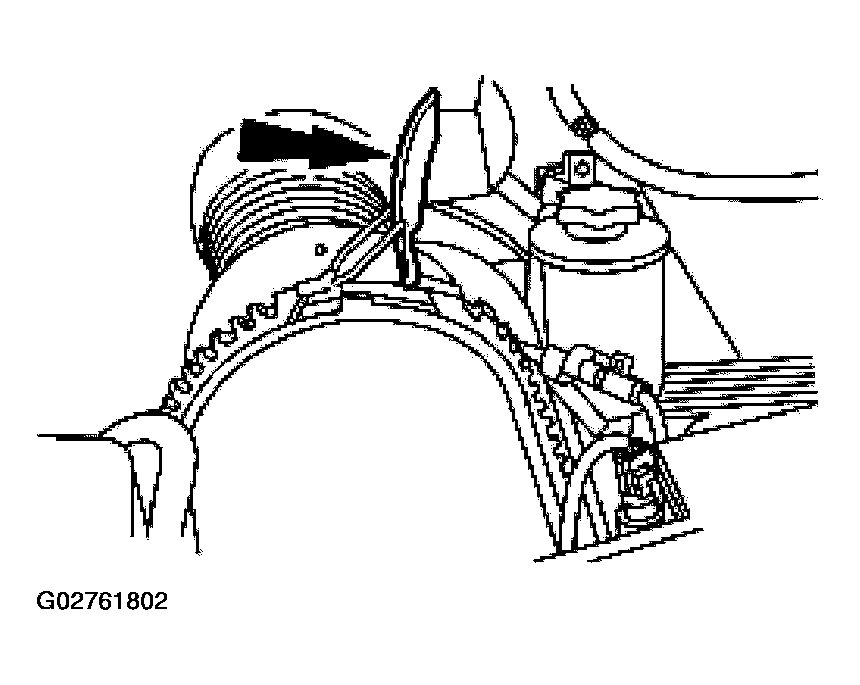

Open the air cleaner.
- Release the air cleaner clamp.
- Separate the inlet side from the outlet side of the air cleaner.
Fig 1: Separating Inlet Side From Outlet Side Of Air Cleaner
Courtesy of FORD MOTOR CO.

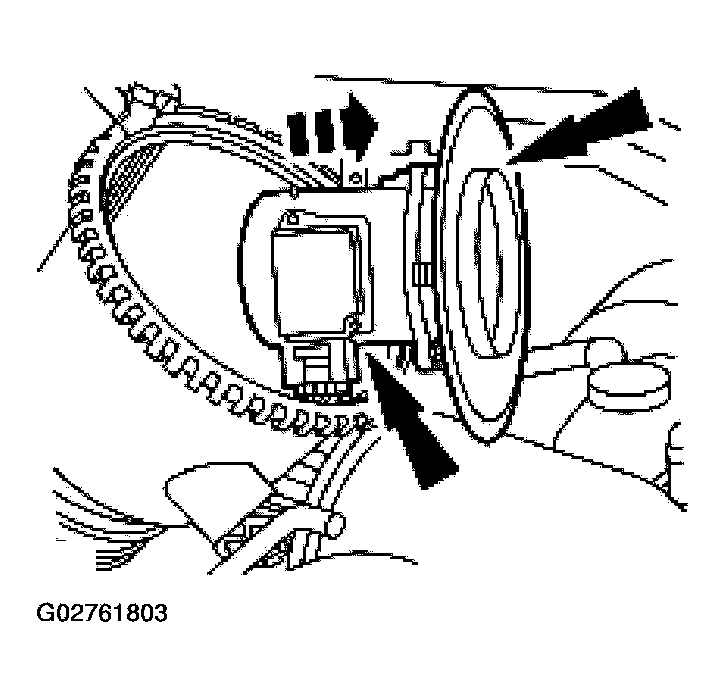

Remove the MAF assembly.

Fig 2: Removing MAF Assembly
Courtesy of FORD MOTOR CO.

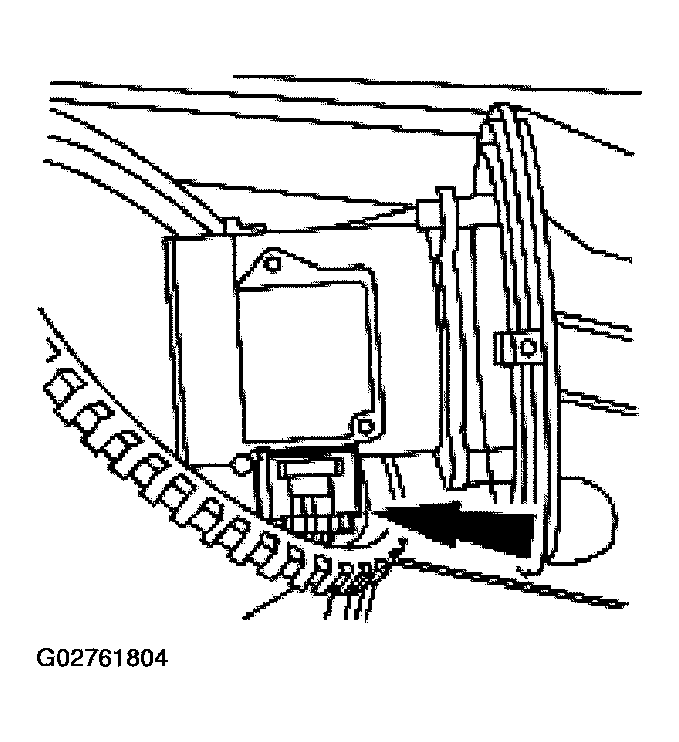

Disconnect the MAF sensor electrical connector.

Fig 3: Disconnecting MAF Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the nuts and separate the MAF sensor from the MAF sensor plate.

Fig 4: Separating MAF Sensor From MAF Sensor Plate
Courtesy of FORD MOTOR CO.

CAUTION: The grommet used to seal the engine air cleaner housing at the extension harness must be fully seated. Failure to do so will result in unmetered air entering the engine.

NOTE: Use the alignment notch to correctly align the inlet side and the outlet side of the engine air cleaner.

NOTE: When reinstalling the mass air flow (MAF) sensor, make sure wires are not trapped behind MAF. Make sure electrical connector is pointing up on installation.
To install, reverse the removal procedure.
