Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. For additional information, refer to ENGINE-4.6 & 5.4L or ENGINE-6.8L .
  2. Remove the knock sensor (KS).
    1. Disconnect the electrical connector.
    2. Remove the nut and the KS.

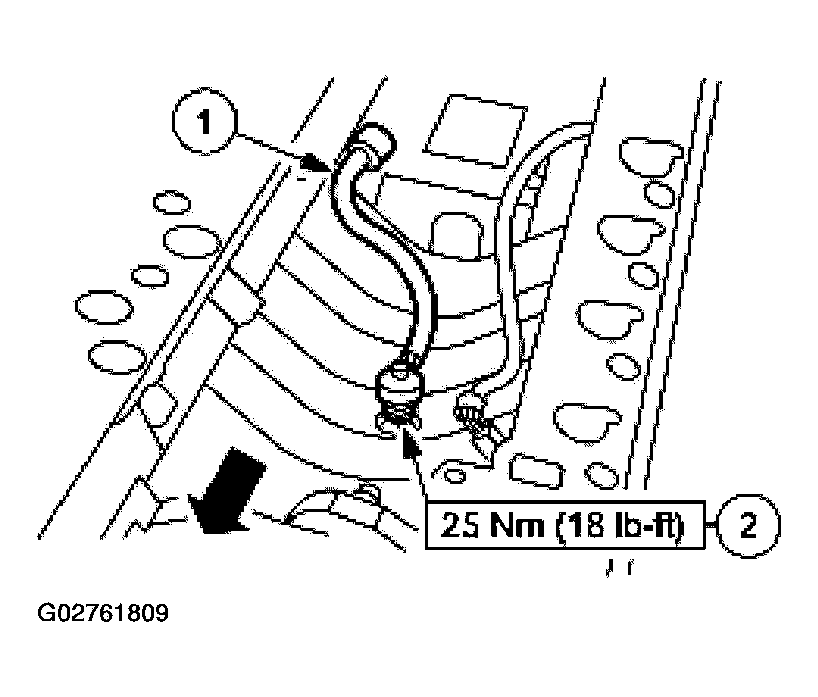

    Fig 1: Removing Knock Sensor
    G02761809Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
