Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Remove the accelerator control snow shield.
  4. Disconnect the idle air control (IAC) valve electrical connector and remove the bolts and the IAC valve.

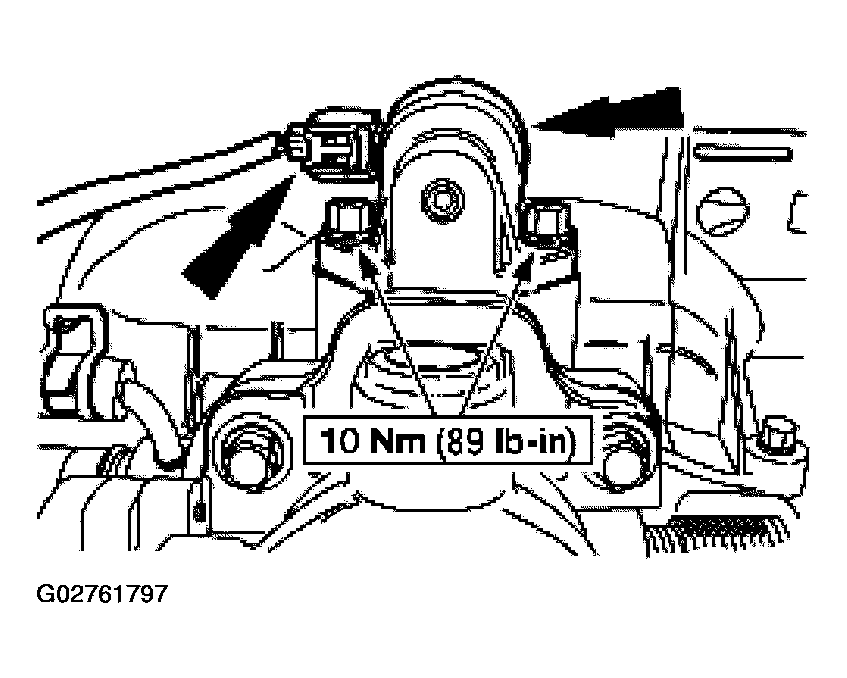

    Fig 1: Removing Idle Air Control (IAC) Valve Electrical Connector
    G02761797Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
