Fuel Rail Pressure (FRP) Sensor

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
SAE 5W-20 Motor Oil XO-5W20-QSP WSS-M2C153-H

    ALL ENGINES

  1. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-GASOLINE & DIESEL .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    3. 4.6L AND 5.4L ENGINES

  3. Disconnect the fuel rail pressure (FRP) sensor electrical connector and the vacuum hose.

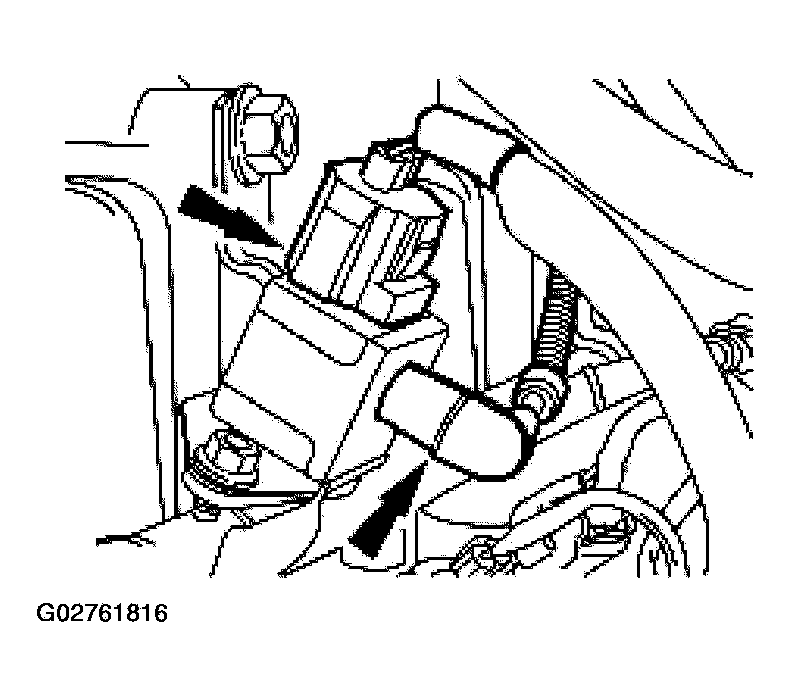

    Fig 1: Disconnecting Fuel Rail Pressure (FRP) Sensor Electrical Connector And Vacuum Hose
    G02761816Courtesy of FORD MOTOR CO.
  4. Remove the bolts and the FRP sensor.

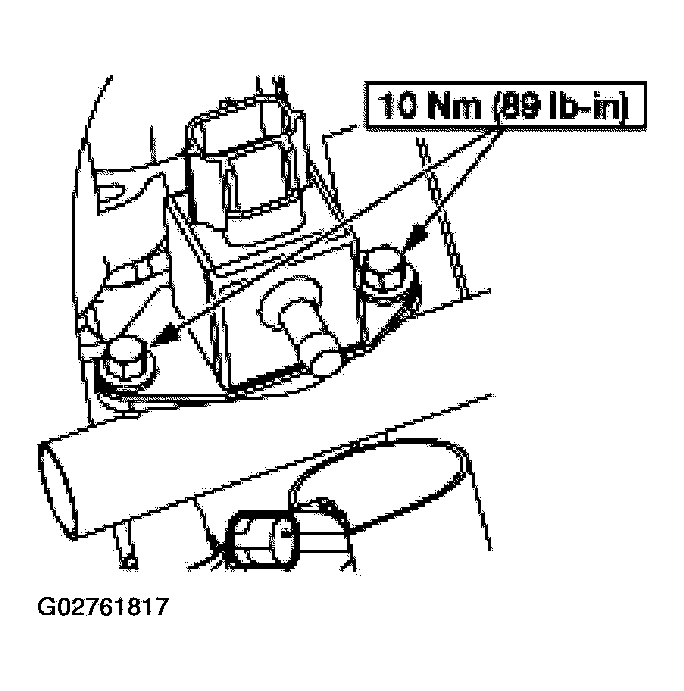

    Fig 2: Removing Bolts And FRP Sensor
    G02761817Courtesy of FORD MOTOR CO.

    5. 6.8L ENGINES

  5. Disconnect the FRP sensor electrical connector and the vacuum hose.

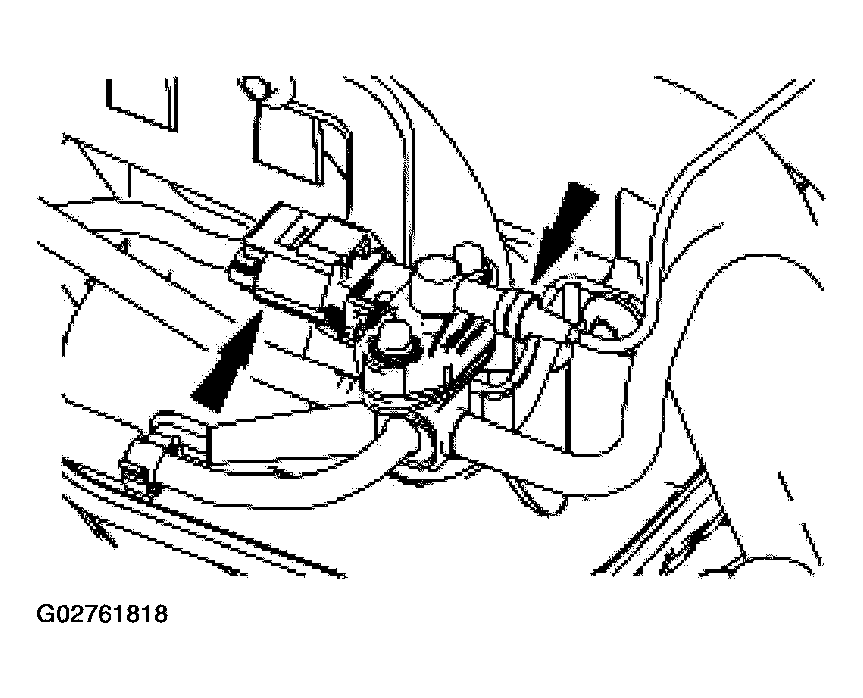

    Fig 3: Disconnecting FRP Sensor Electrical Connector
    G02761818Courtesy of FORD MOTOR CO.
  6. Remove the bolts and the FRP sensor.

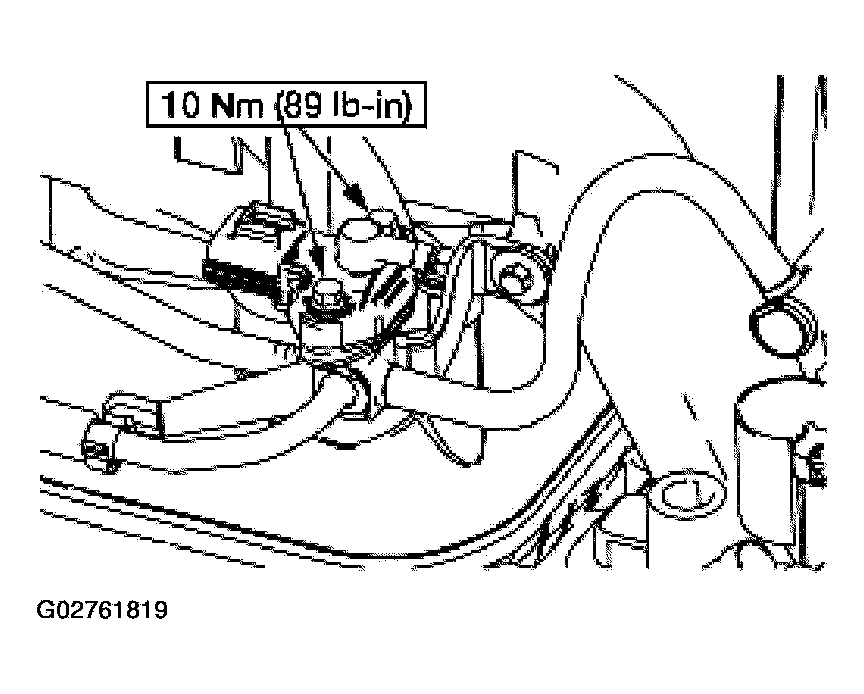

    Fig 4: Removing Bolts And FRP Sensor
    G02761819Courtesy of FORD MOTOR CO.

    7. ALL ENGINES

    NOTE: Before installing the FRP sensor, inspect and lubricate the O-ring seal with clean engine oil.
    NOTE: Hand-tighten both bolts before tightening to specification.
  7. To install, reverse the removal procedure.
