Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Partially drain the cooling system. For additional information, refer to ENGINE COOLING .
  3. Remove the engine coolant temperature (ECT) sensor.
    1. Disconnect the connector.
    2. Remove the ECT sensor.

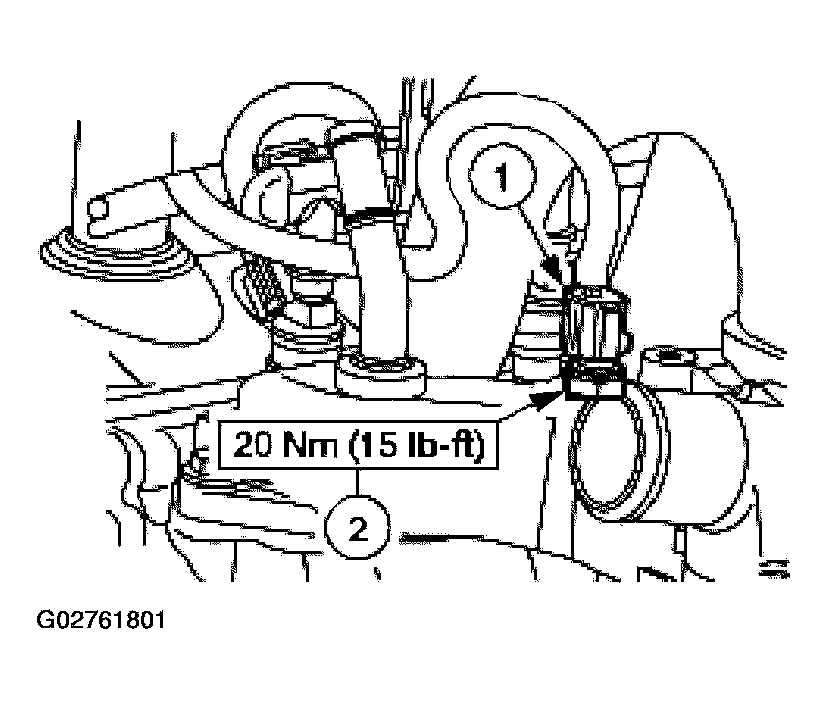

    Fig 1: Removing ECT Sensor
    G02761801Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
