Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the camshaft position (CMP) sensor electrical connector.

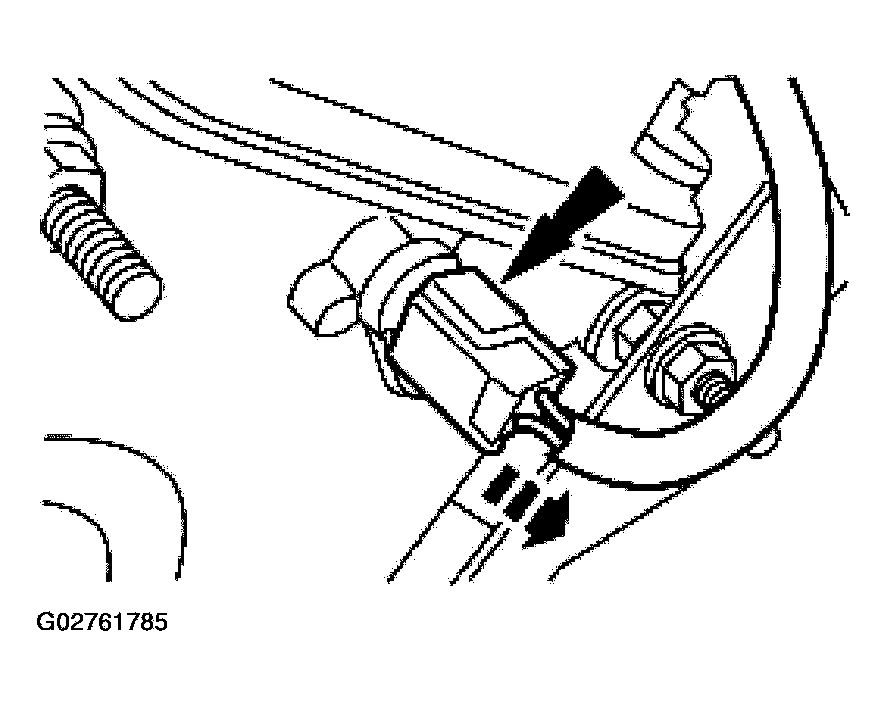

    Fig 1: Disconnecting Camshaft Position (CMP) Sensor Electrical Connector
    G02761785Courtesy of FORD MOTOR CO.
  3. Remove the bolt and the CMP sensor.

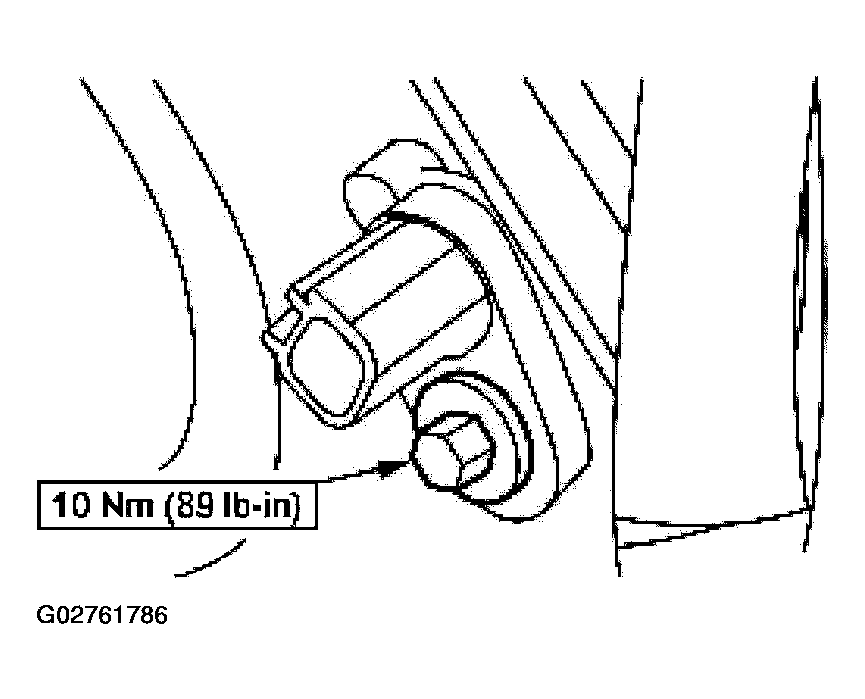

    Fig 2: Removing Bolt And CMP Sensor
    G02761786Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
