Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Disconnect the differential pressure feedback exhaust gas recirculation (EGR) sensor hoses.
    Fig 1: Disconnecting Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor Hoses
    G02761728Courtesy of FORD MOTOR CO.
  3. Remove the EGR valve tube.
    • Disconnect the upper and lower fittings.
    • Remove the tube.

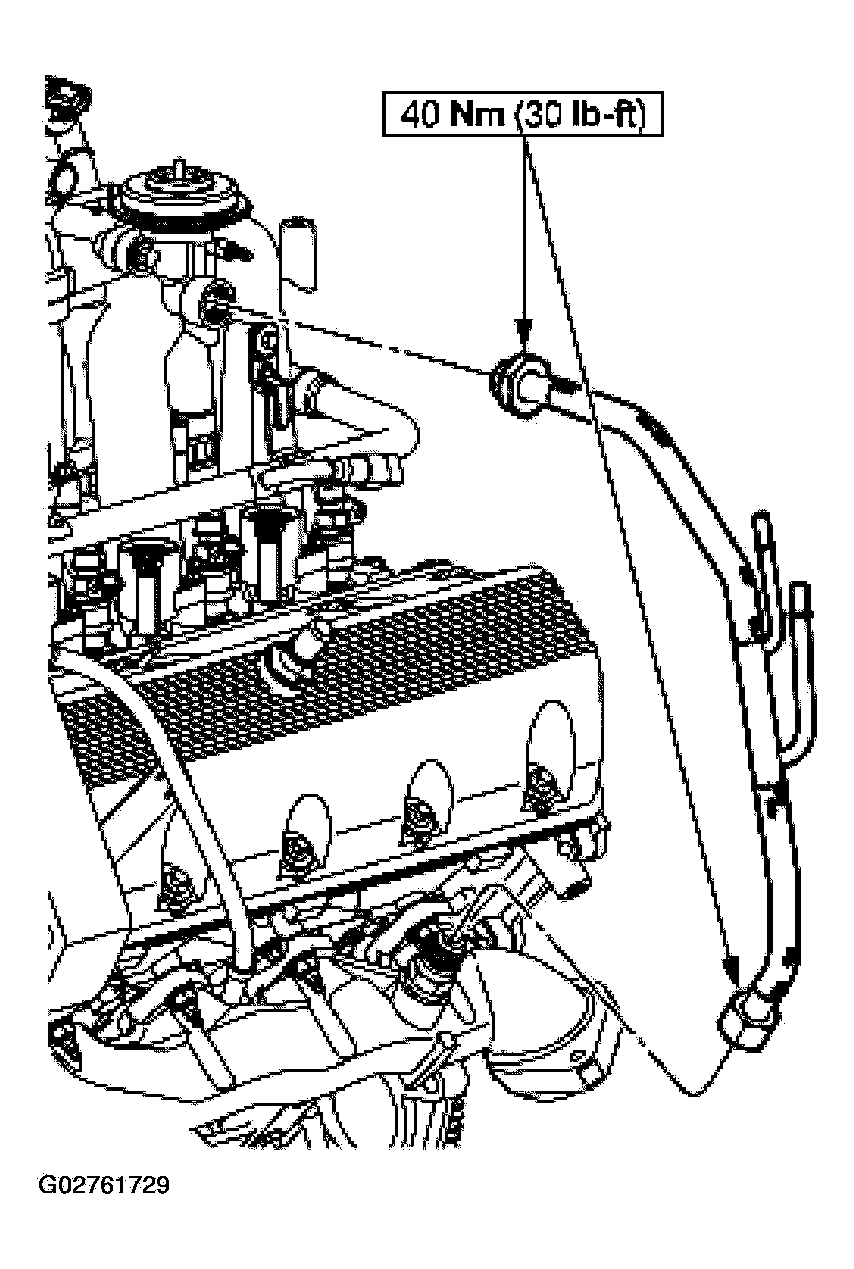

    Fig 2: Removing Tube
    G02761729Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
