Exhaust Gas Recirculation (EGR) Valve - 5.4L (2V): Removal
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

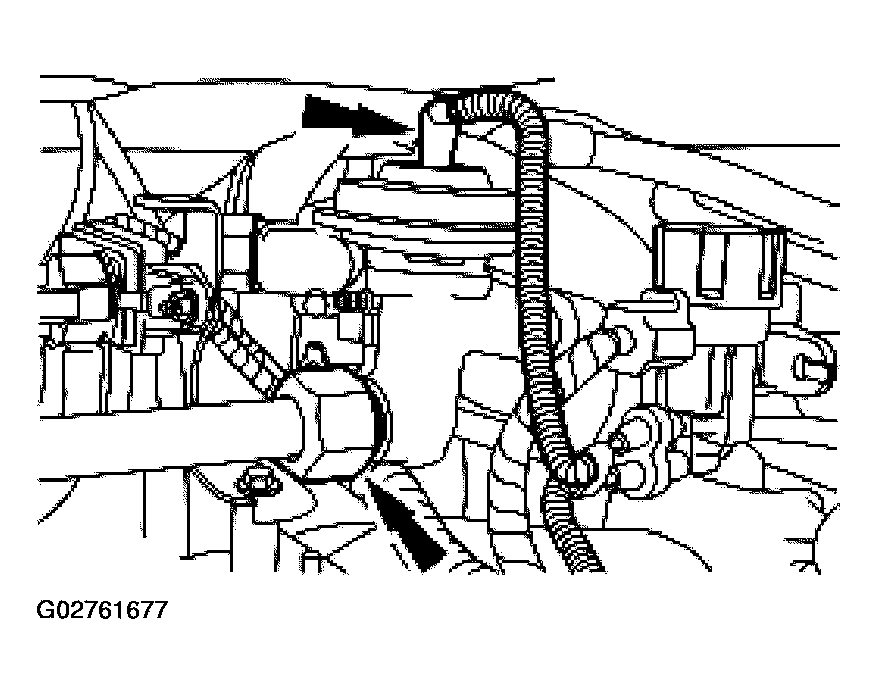

- Disconnect the exhaust gas recirculation (EGR) valve tube upper fitting and EGR vacuum hose.

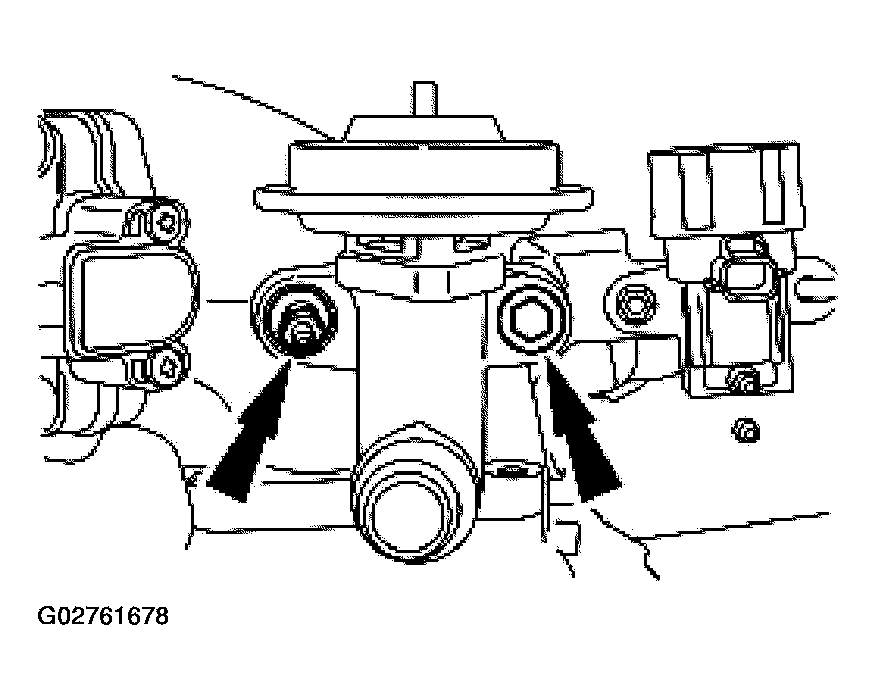

- Remove the bolts and the EGR valve.
- Discard the gasket.
